AL5811
Document number: DS35255 Rev. 1 - 2
10 of 13
www.diodes.com
January 2013
© Diodes Incorporated
NEW PROD
UC
T
AL5811

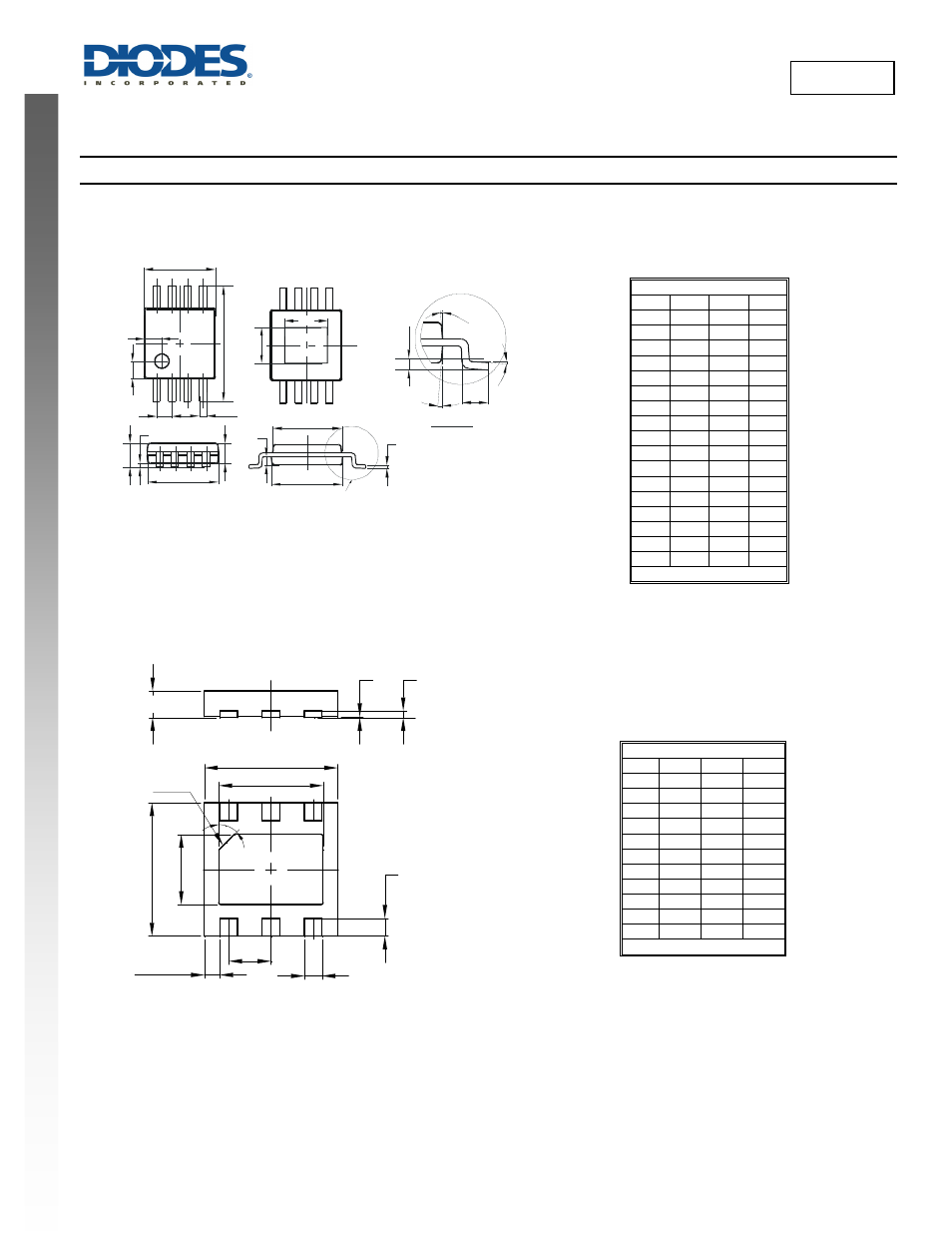

Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
(1) Package type: MSOP-8EP
(2) Package Type: U-DFN3030-6
MSOP-8EP
Dim Min Max Typ
A - 1.10 -
A1 0.05 0.15 0.10
A2 0.75 0.95 0.86
A3 0.29 0.49 0.39
b 0.22 0.38 0.30
c 0.08 0.23 0.15
D 2.90 3.10 3.00
D1 1.60 2.00 1.80
E 4.70 5.10 4.90
E1 2.90 3.10 3.00
E2 1.30 1.70 1.50
E3 2.85 3.05 2.95
e - - 0.65
L 0.40 0.80 0.60
a 0° 8° 4°
x - - 0.750
y - - 0.750
All Dimensions in mm
U-DFN3030-6
Dim Min Max Typ
A 0.57 0.63 0.60
A1 0 0.05 0.02
A3 - - 0.15
b 0.35 0.45 0.40
D 2.95 3.05 3.00
D2 2.25 2.45 2.35
E 2.95 3.05 3.00
E2 1.48 1.68 1.58
e - - 0.95
L 0.35 0.45 0.40
Z - - 0.35
All Dimensions in mm
1
D
A
A1
A2
E
e
y
x
Seating Plane
Gauge Plane
L
D
8Xb
See Detail C
Detail C
c
a
E1
E3
A3
E2
4X10
°
4X10
°
0.
25
D1
D
D 2
E
e
b
L
E
2
A
A 3
︵P i n # 1 I D ︶
S e a t i n g P l a n e
Z ︵4 x ︶
A 1
4 5 ° ︵0 . 3 5 * 0 . 3 5 ︶
