600mA LOW DROPOUT LINEAR REGULATOR AP1117M
Data Sheet
1A ULDO REGULATOR WITH ENABLE AP2318A
2
May. 2011 Rev 2. 0 BCD Semiconductor Manufacturing Limited

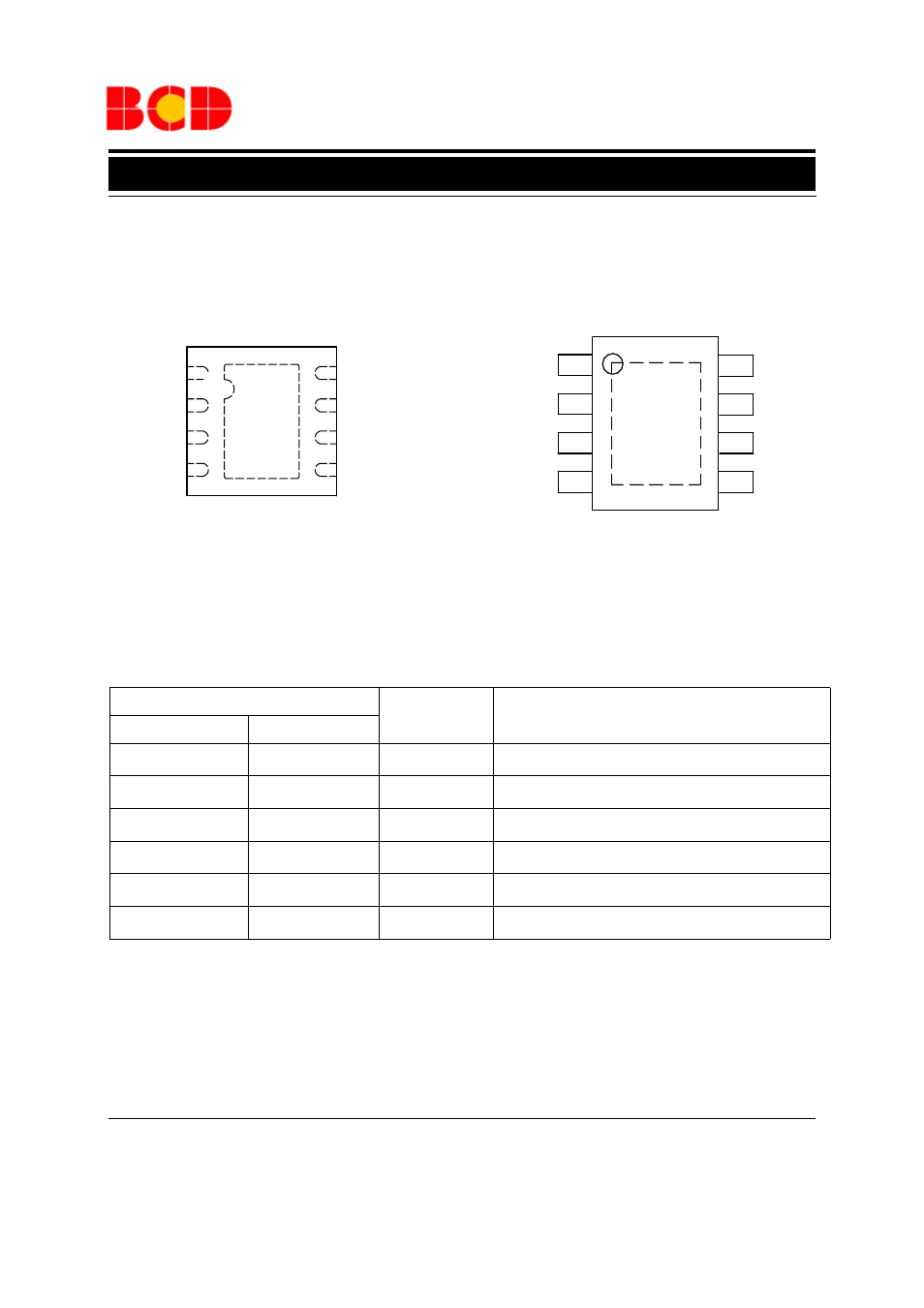

Figure 2. Pin Configuration of AP2318A (Top View)
Pin Configuration
MP Package
(PSOP-8)
NC
NC
EN
VIN
VIN
ADJ
GND
VOUT
1
2
3
4
8
7
6
5
Pin Description
Pin Number
Pin Name Function
DFN-3x3-8 PSOP-8
1, 2 3, 4 VIN Input voltage
3, 4 6 VOUT Output voltage
5 7 ADJ Adjustable voltage
6 8 GND Ground
7 1, 5 NC No connection
8 2 EN On/Off control
1
2
3
4 5
6
7
8
DN Package
(DFN-3x3-8)
VOUT
VIN
VOUT
EN
NC
GND
ADJ
VIN
