Data Sheet
Peak 3A CMOS LDO Regulator with Enable and Power Good AP2132A
Mar. 2012 Rev 1.0 BCD Semiconductor Manufacturing Limited
1
General Description
The AP2132A series are positive voltage regulator
ICs fabricated by CMOS process. The ICs consist of
a voltage reference, an error amplifier, a power
transistor, a resistor network for setting output
voltage, a current limit circuit for current protection,
and a chip enable circuit.
The AP2132A have features of large current, low
dropout voltage, high output voltage accuracy and
low input voltage. The AP2132A provide a power
good (PG) signal to indicate if the voltage level of
V
OUT
reaches 92% of its rating value. And it operates
with a V
IN
as low as 1.4V and V
CTRL
voltage 5V with
output voltage programmable as low as
0.6V.
The AP2132A are available in 1.2V, 1.5V, 1.8V, 2.5V
fixed output voltage versions and adjustable output
voltage version. The fixed versions integrate the
adjust resistors. It is also available in an adjustable
version, which can set the output voltage with
external resistor. If the pin of adjustable output
voltage is to ground, it will switch to fixed output
voltage.
The AP2132A series are available in PSOP-8
package.
Features
•
Adjustable Output: 0.6V to 3.0V
•
Low Dropout Voltage: 300mV at I
OUT
=2A,
V
OUT
=1.2V
•
Over Current and Over Temperature Protection
• Enable
Pin
•
PSOP-8 Package with Thermal Pad
•
Maximum Output Current: 3A (Peak)
• High
Output
Voltage
Accuracy:
2%
• V
OUT
Power Good Signal
•
Excellent Line/Load Regulation
Applications
• Notebook

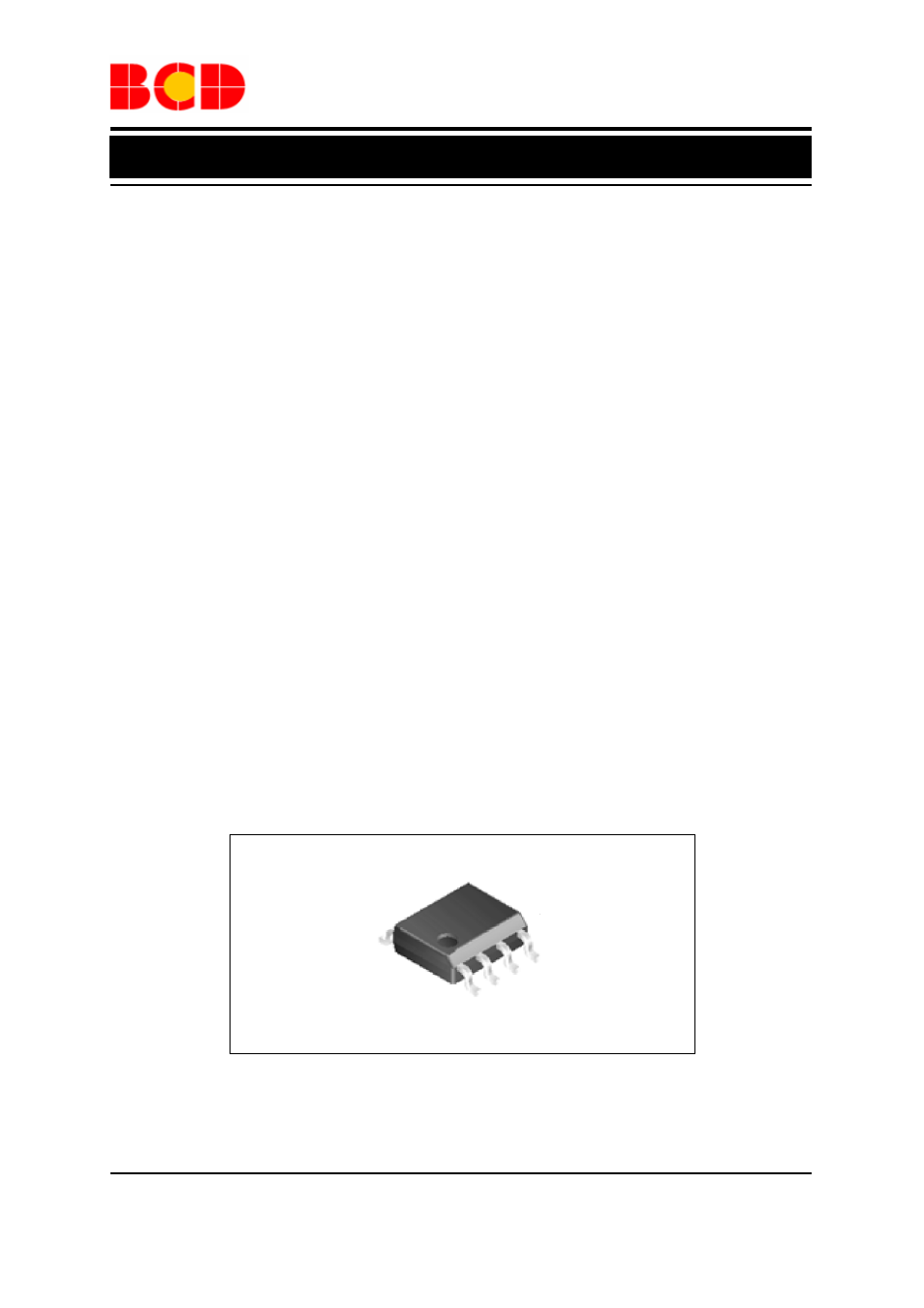

Figure 1. Package Type of AP2132A
PSOP-8
