300mA HIGH SPEED, EXTREMELY LOW NOISE CMOS LDO REGULATOR AP2125
Data Sheet
Typical Performance Characteristics (Continued)

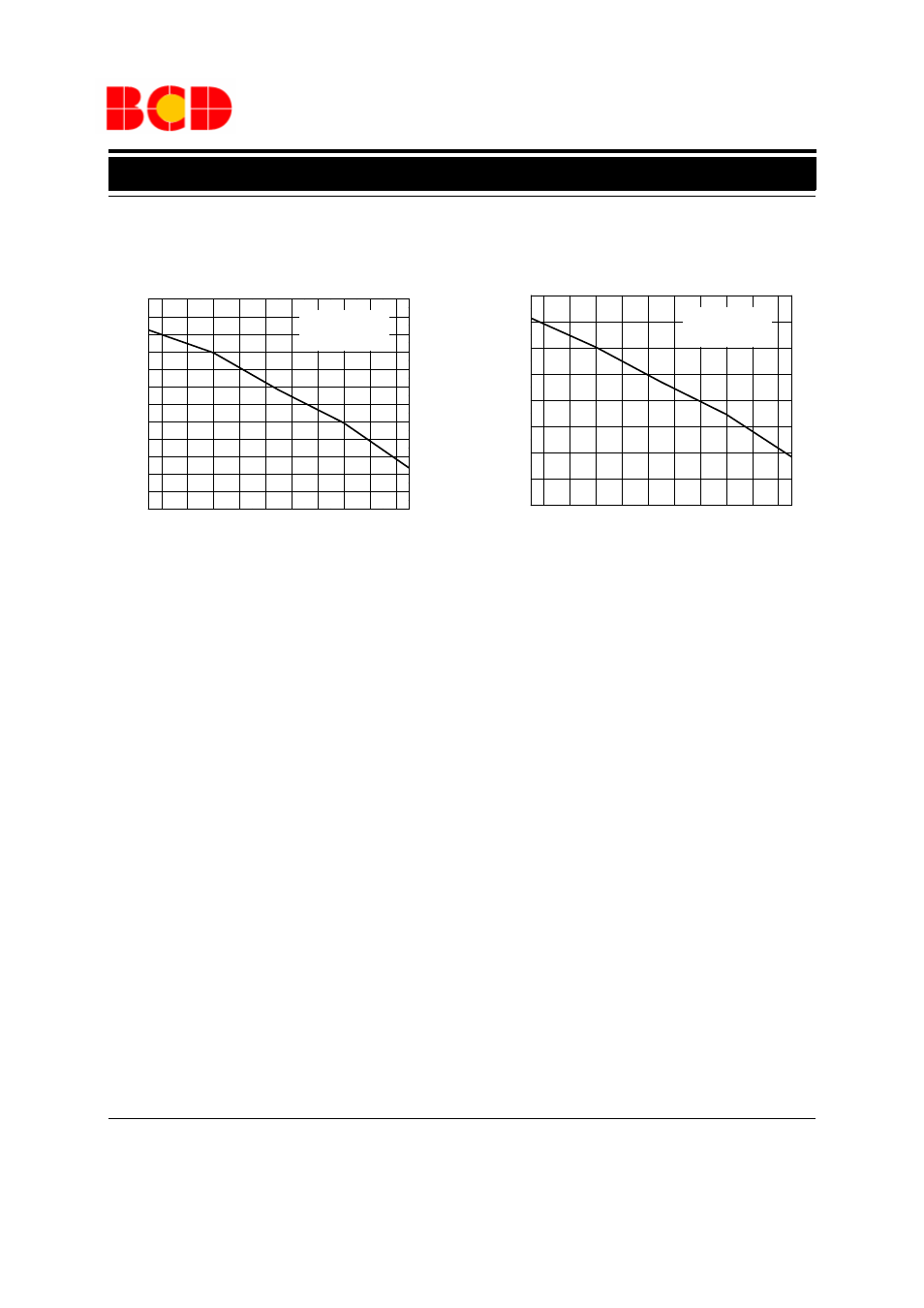

Figure 36. Power Dissipation vs. Ambient Temperature Figure 37. Power Dissipation vs. Ambient Temperature
30 40 50 60 70 80 90 100 110 120
0
50
100
150
200
250
300
350
400
450
500
550
600
Power Dissipation (m
W
)
Ambient Temperature ( o C)
AP2125-1.8
Package: SC-70-5
No Heatsink
30 40 50 60 70 80 90 100 110 120
0
100
200
300
400
500
600
700
800
P
o
wer Di
ssip
at
ion (mW
)
Ambient Temperature ( o C)
AP2125-3.3
Package: SC-70-5
No Heatsink
