Data Sheet
2
May. 2010 Rev. 1. 5 BCD Semiconductor Manufacturing Limited
HIGH SPEED, EXTREMELY LOW NOISE LDO REGULATOR AP2122
Pin Configuration

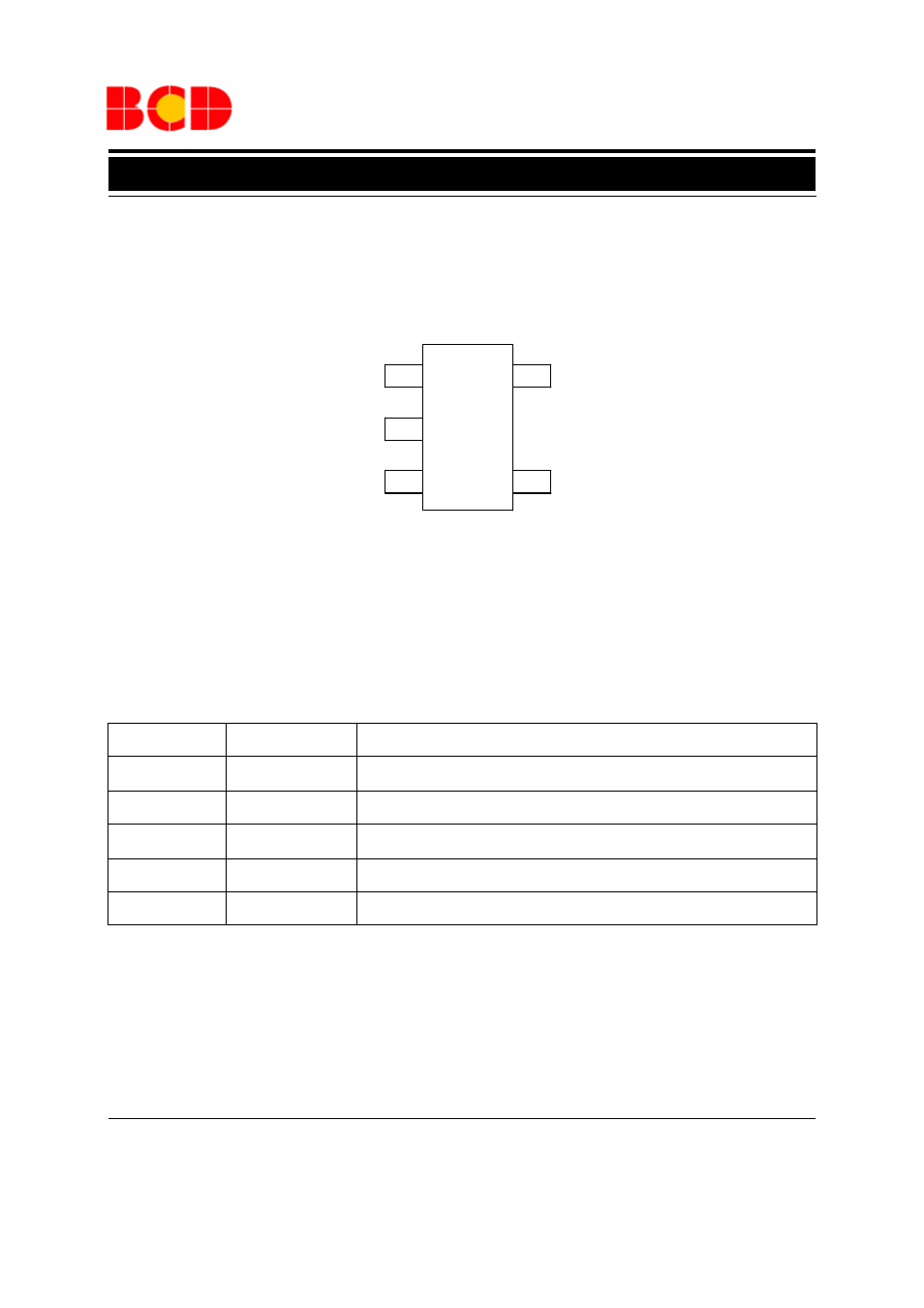

Figure 2. Pin Configuration of AP2122 (Top View)
K Package
(SOT-23-5)
Pin Description
Pin Number Pin Name Function
1 V
OUT
Regulated output voltage
2 GND Ground
3 V
IN
Input voltage
4 CE Active high enable input pin. Logic high=enable, logic low=shutdown
5 NC No connection
1
2
3 4
5 V
OUT
GND
V
IN
NC
CE
