1A LOW NOISE CMOS LDO REGULATOR WITH ENABLE AP2115
Jul. 2011 Rev 1. 1 BCD Semiconductor Manufacturing Limited
1
General Description
The AP2115 is CMOS process low dropout linear
regulator with enable function, the regulator delivers
a guaranteed 1A (min.) continuous load current.
The AP2115 features low power consumption.
The AP2115 is available in 1.2V, 1.8V, 2.5V and
3.3V regulator output, and available in excellent
output accuracy ±1.5%, it is also available in an
excellent load regulation and line regulation
performance.
The AP2115 is available in standard packages of
SOIC-8 and SOT-89-5.
Features
• Output
Voltage
Accuracy:
±1.5%
•
Output Current: 1A (Min.)
•
Fold-back Short Current Protection: 50mA
• Low Dropout Voltage (3.3V): 450mV (Typ.)
@ I
OUT
=1A
• Stable with 4.7
µF Flexible Cap: Ceramic,
Tantalum and Aluminum Electrolytic
• Excellent Line Regulation: 0.02%/V (Typ.),
0.1%/V (Max.) @ I
OUT
=30mA
• Excellent Load Regulation: 0.2%/A @
I
OUT
=1mA to 1A
• Low Quiescent Current: 60
µA (1.2V/1.8V/
2.5V)
• Low Output Noise: 30
µV
RMS
• PSRR: 68dB @ Freq=1kHz (1.2V/1.8V)
• OTSD Protection
• Operation Temperature Range: -40
°C to 85°C
• ESD: MM 400V, HBM 4000V
Applications
• LCD
Monitor
• LCD
TV
• STB

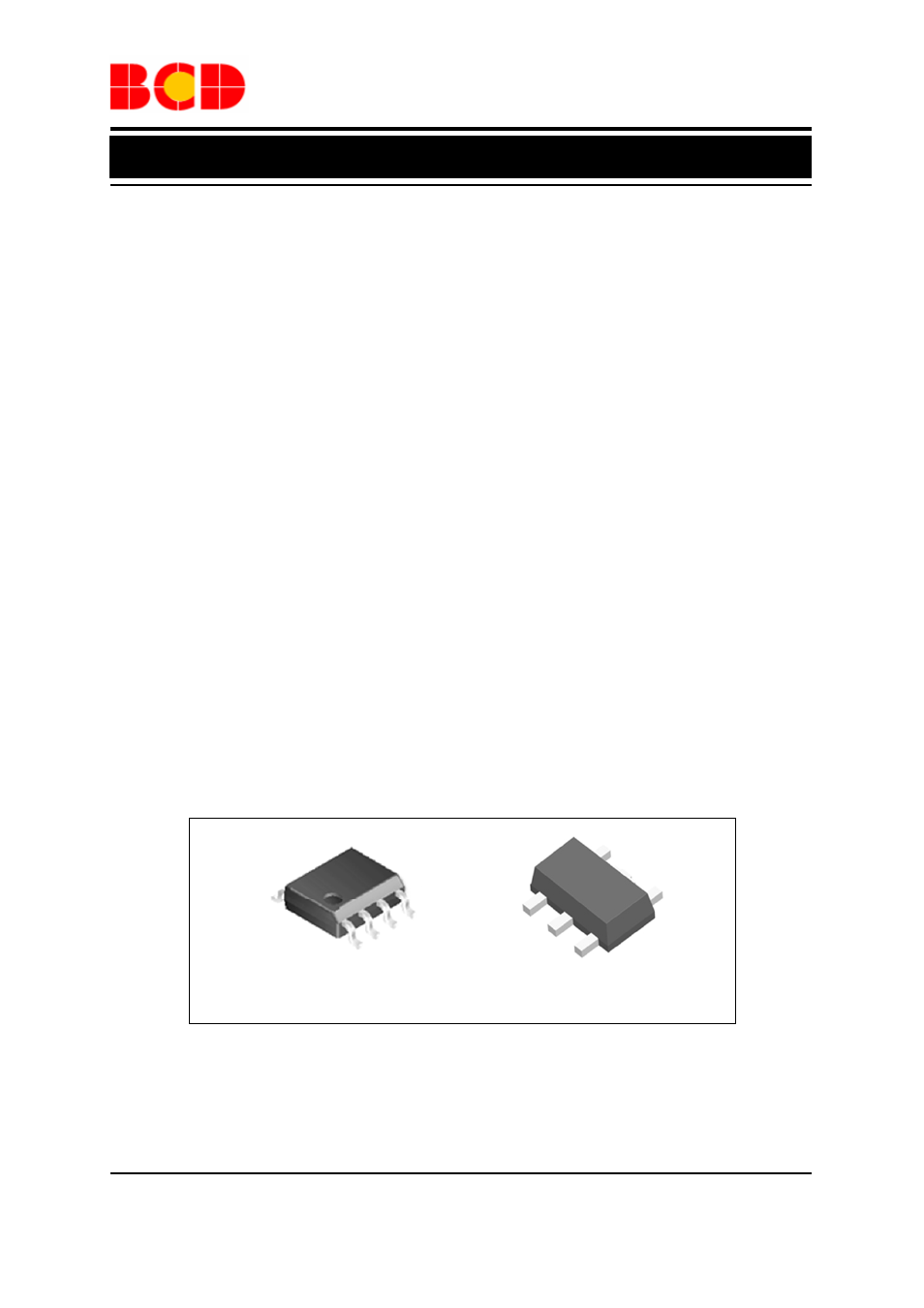

Figure 1. Package Types of AP2115
SOIC-8 SOT-89-5
