Data Sheet
600mA CMOS LDO REGULATOR WITH ENABLE AP2111
Dec. 2012 Rev. 1. 7 BCD Semiconductor Manufacturing Limited
1
General Description
The AP2111 is CMOS process low dropout linear
regulator with enable function, the regulator delivers
a guaranteed 600mA (Min) continuous load current.
The AP2111 provides 1.2V, 1.5V, 1.8V, 2.5V, 3.3V,
4.8V regulated output and 0.8V to 5V adjustable
output, and provides excellent output accuracy 1.5%,
it is also provides a excellent load regulation, line
regulation and excellent load transient performance
due to very fast loop response. The AP2111 has
built-in auto discharge function.
The AP2111 features low power consumption.
The AP2111 is available in SOIC-8, PSOP-8
SOT-223 and SOT-23-5 packages.
Features
•
Output Voltage Accuracy: ±1.5%
• Output Current: 600mA (Min)
• Foldback Short Current Protection: 50mA
• Enable Function to Turn On/Off V
OUT
• Low Dropout Voltage (3.3V):
250mV (Typ) @ I
OUT
=600mA
• Excellent Load Regulation: 0.2%/A (Typ)
• Excellent Line Regulation: 0.02%/V (Typ)
• Low Quiescent Current: 55 μA (Typ)
• Low Standby Current: 0.01 μA (Typ)
• Low Output Noise: 50 μV
RMS
• PSRR: 65dB @ f=1kHz, 65dB @ f=100Hz
• OTSD Protection
• Stable with 1.0 μF Flexible Cap: Ceramic,
Tantalum and Aluminum Electrolytic
• Operating Temperature Range: -40°C to 85°C
• ESD: MM 400V, HBM 4000V
Applications
• Laptop computer
• Potable DVD
• LCD Monitor

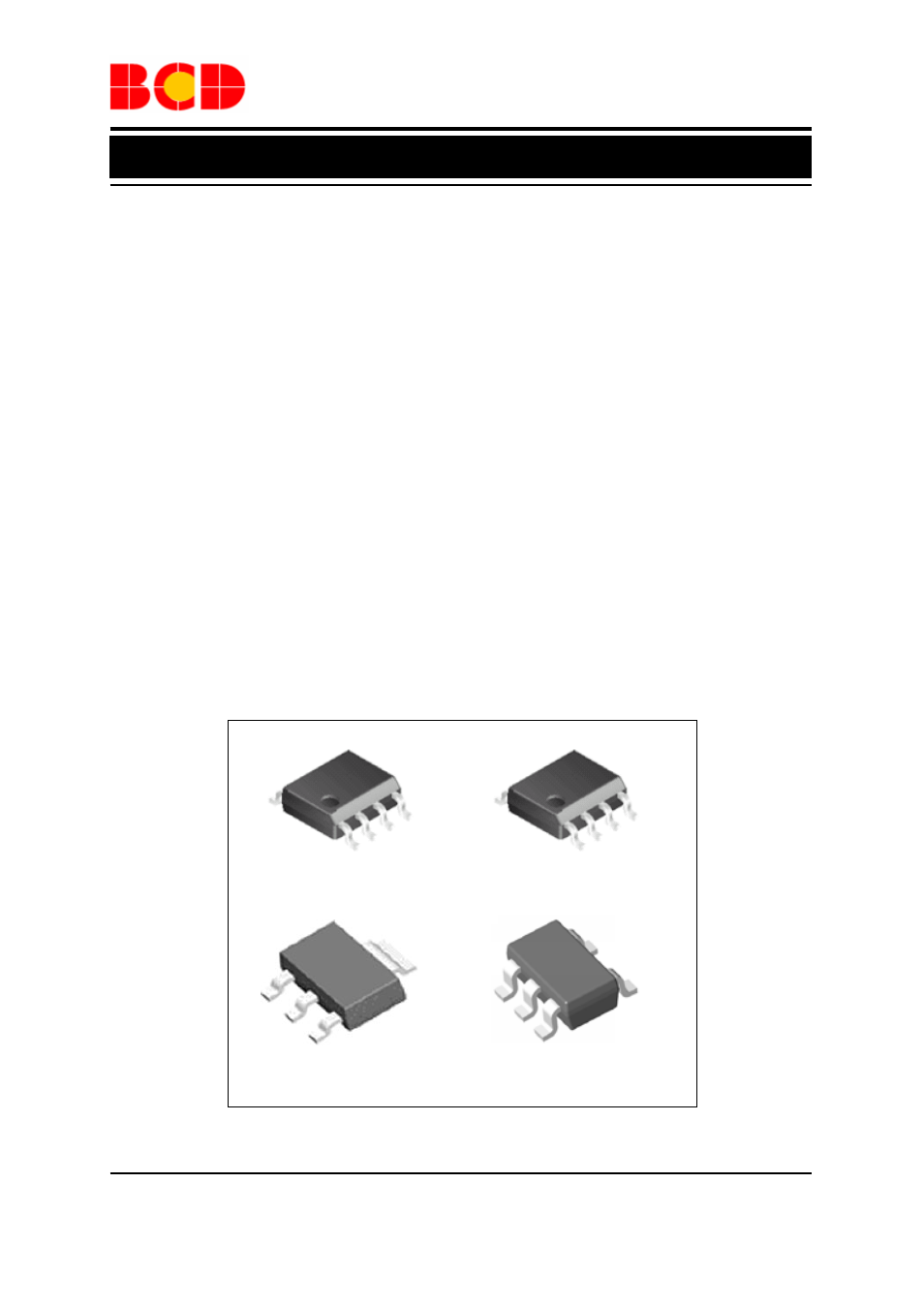

Figure 1. Package Types of AP2111
SOIC-8 PSOP-8
SOT-223 SOT-23-5
