AP130

300mA LOW DROPOUT (LDO) LINEAR REGULATOR

AP130

Document number: DS31027 Rev. 8 - 2

1 of 11

www.diodes.com

December 2011

© Diodes Incorporated

Features

• Input Voltage Range: 2.7V to 5.5V

• Dropout Voltage 400mV at 300mA Output Current

• Guaranteed 300mA Output Current

• Internal RON = 1.5

Ω PMOS Draws No Base Current

• Low Quiescent Current 50µA

• Output Voltage: 1.5V/1.8V/2.0V/2.5V/2.8V/3.0V/

• 3.3V/3.5; Accuracy 2%

• Fast

Transient

Response

• Good Load Regulation

• Current Limit and Thermal Shutdown Protection

• Short Circuit Current Fold-Back

• Lead Free Packages: SC59, SC59R, SOT89-3L, and

SOT89R-3L

• SC59, SC59R, SOT23, SOT89-3L, and SOT89R-3L:

Available in “Green” Molding Compound (No Br, Sb)

(Note 9)

• Lead Free Finish/ RoHS Compliant (Note 1)

Description

The AP130 is a 300mA, fixed output voltage, low dropout

linear regulator. The device includes pass element, error

amplifier, band-gap, current-limit and thermal shutdown

circuitry. The characteristics of low dropout voltage and

less quiescent current make it good for some critical

current application, for example, some battery powered

devices. The typical quiescent current is approximately

50µA from zero to maximum load. Due to internal flexible

design, results in extensively fixed output voltage versions

and make it convenient to use for applications. Built-in

current-limit and thermal-shutdown functions prevent any

fault condition from IC damage.

Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at

http://www.diodes.com/products/lead_free.html.

Applications

• Battery Powered Device

• CD-ROM, DVD, and LAN Card

• PC Peripheral

• Wireless

Communication

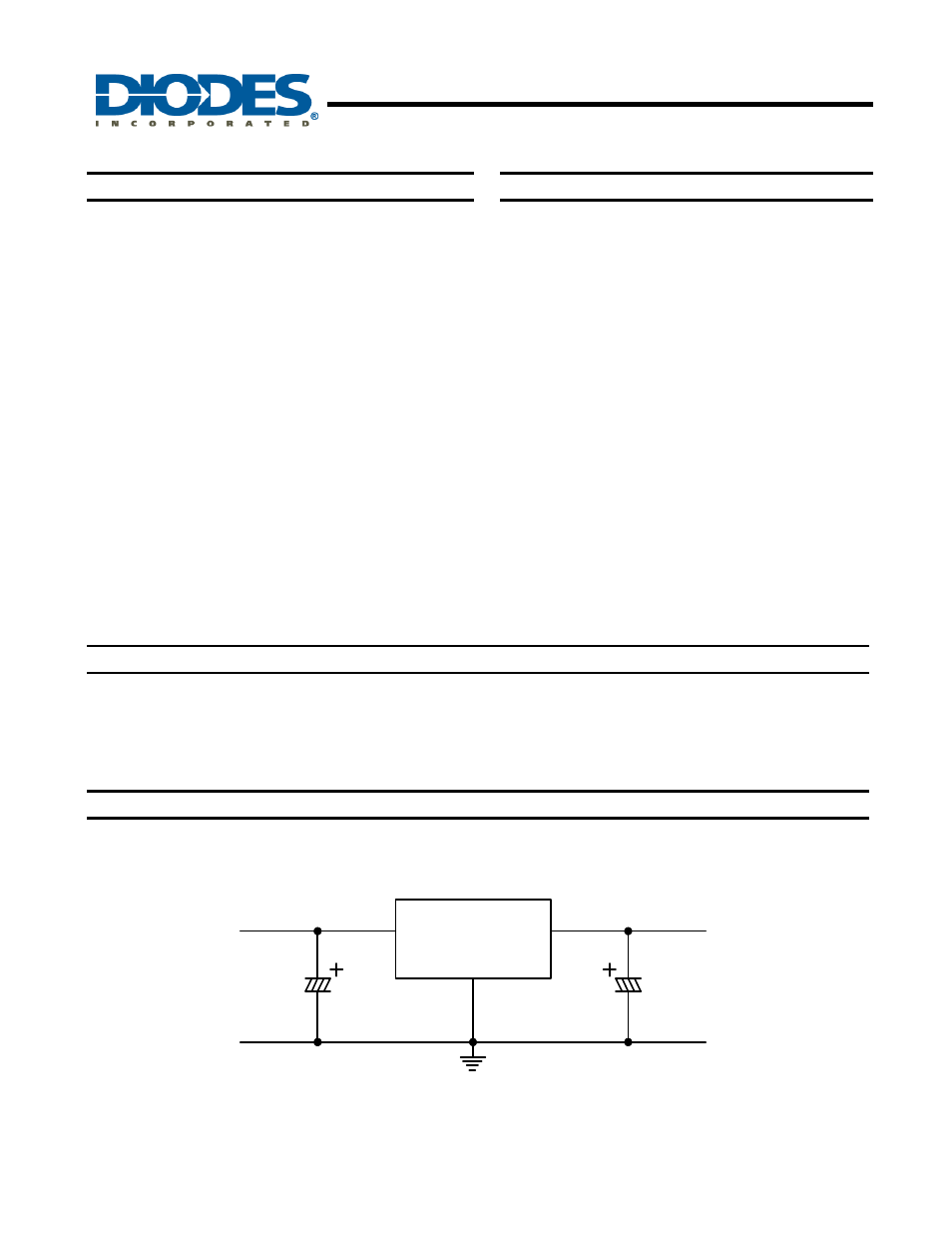

Typical Application Circuit

IN

OUT

GND

IN

C

V

IN

OUT

C

OUT

V

AP130

1uF

10uF
