AP1084
5A LOW DROPOUT POSITIVE ADJUSTABLE OR
FIXED-MODE REGULATOR
AP1084 Rev. 9 4 of 11 JANUARY 2010
DS31070 www.diodes.com © Diodes Incorporated

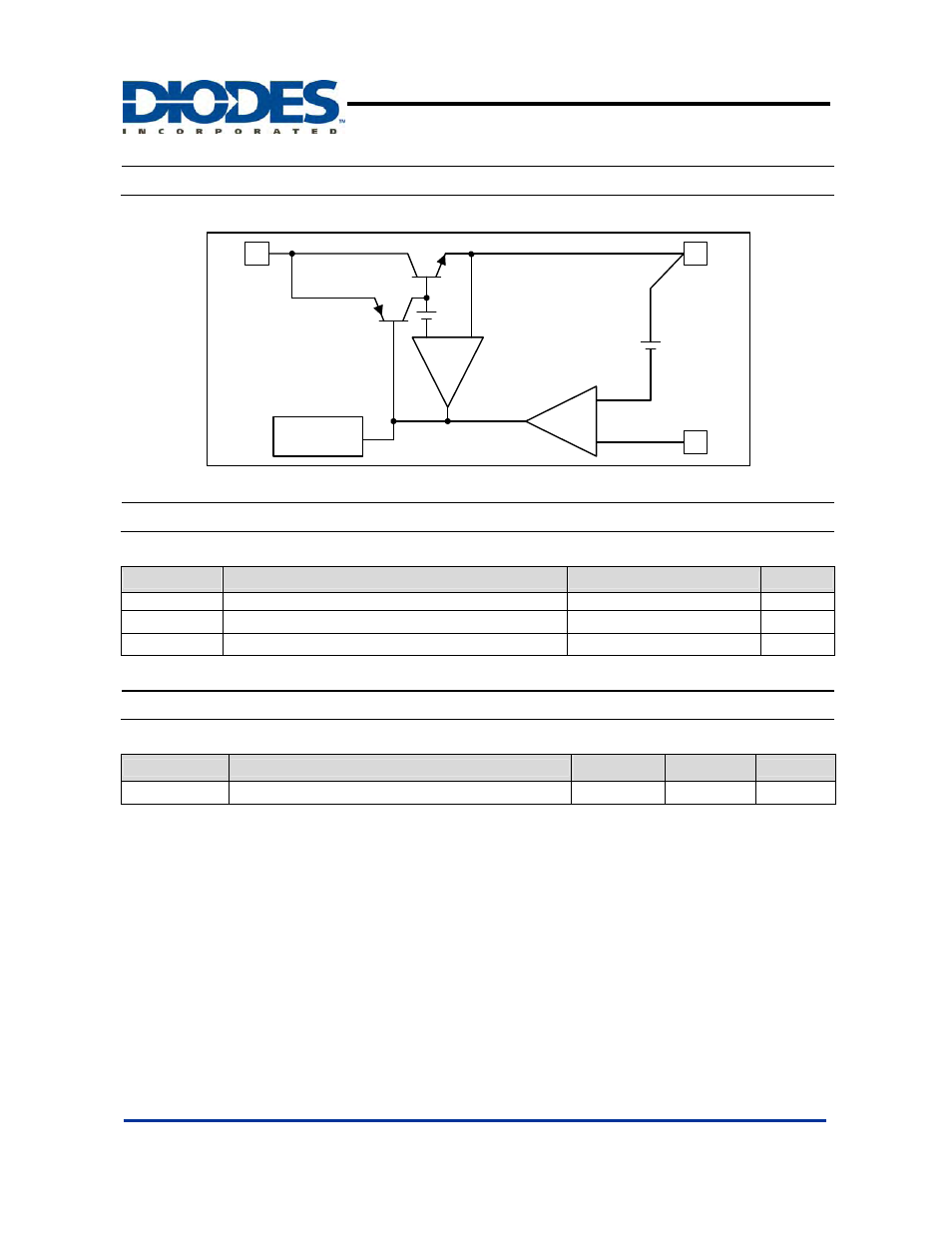

Block Diagram
3
Thermal
Shutdown 1
2 V
out
Adj
1.25V
+
+
CURRENT
LIMIT
V
in
+ -
+
-
Absolute Maximum Ratings
Symbol Parameter Rating Unit
V
IN
DC Supply Voltage -0.3 to 12 V
T
ST
Storage Temperature -65 to +150 oC
T
MJ
Maximum Junction Temperature 150 oC
Recommended Operating Conditions
Symbol Parameter Min Max Unit
T
OP
Operating Junction Temperature Range 0 125 oC
