AP2501/AP2511
2.5A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH
Description
The AP2501 and AP2511 are single channel current-limited
integrated high-side power switches optimized for Universal Serial
Bus (USB) and other hot-swap applications. The family of devices
complies with USB standards and is available with both polarities of
Enable input.
The devices have fast short-circuit response time for improved
overall system robustness, and have integrated output discharge
function to ensure completely controlled discharging of the output
voltage capacitor. They provide a complete protection solution for
applications subject to heavy capacitive loads and the prospect of
short circuit, and offer reverse current blocking, over-current, over-
temperature and short-circuit protection, as well as controlled rise
time and under-voltage lockout functionality. A 7ms
deglitch
capability on the open-drain Flag output prevents false over-current
reporting and does not require any external components.
All devices are available in SO-8, MSOP-8, MSOP-8EP,
U-DFN3030-8 and U-DFN2020-6 packages.
Features
Single channel current-limited power switch
Output discharge function
Fast
short-circuit response time: 2µs
3.7A accurate current limiting (typ)
Reverse
current
blocking
70mΩ on-resistance (typ)
Input voltage range: 2.7V – 5.5V
Built-in soft-start with 0.6ms typical rise time
Over-current and thermal protection
Fault report (FLG) with blanking time (7ms typ)
ESD protection: 2kV HBM, 200V MM
Active low (AP2501) or active high (AP2511) enable
Ambient temperature range: -40°C to +85°C
SO-8, MSOP-8, MSOP-8EP, U-DFN3030-8 and U-DFN2020-6:
Available in “Green” Molding Compound (No Br, Sb)
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
UL Recognized, File Number E322375
IEC60950-1 CB Scheme Certified

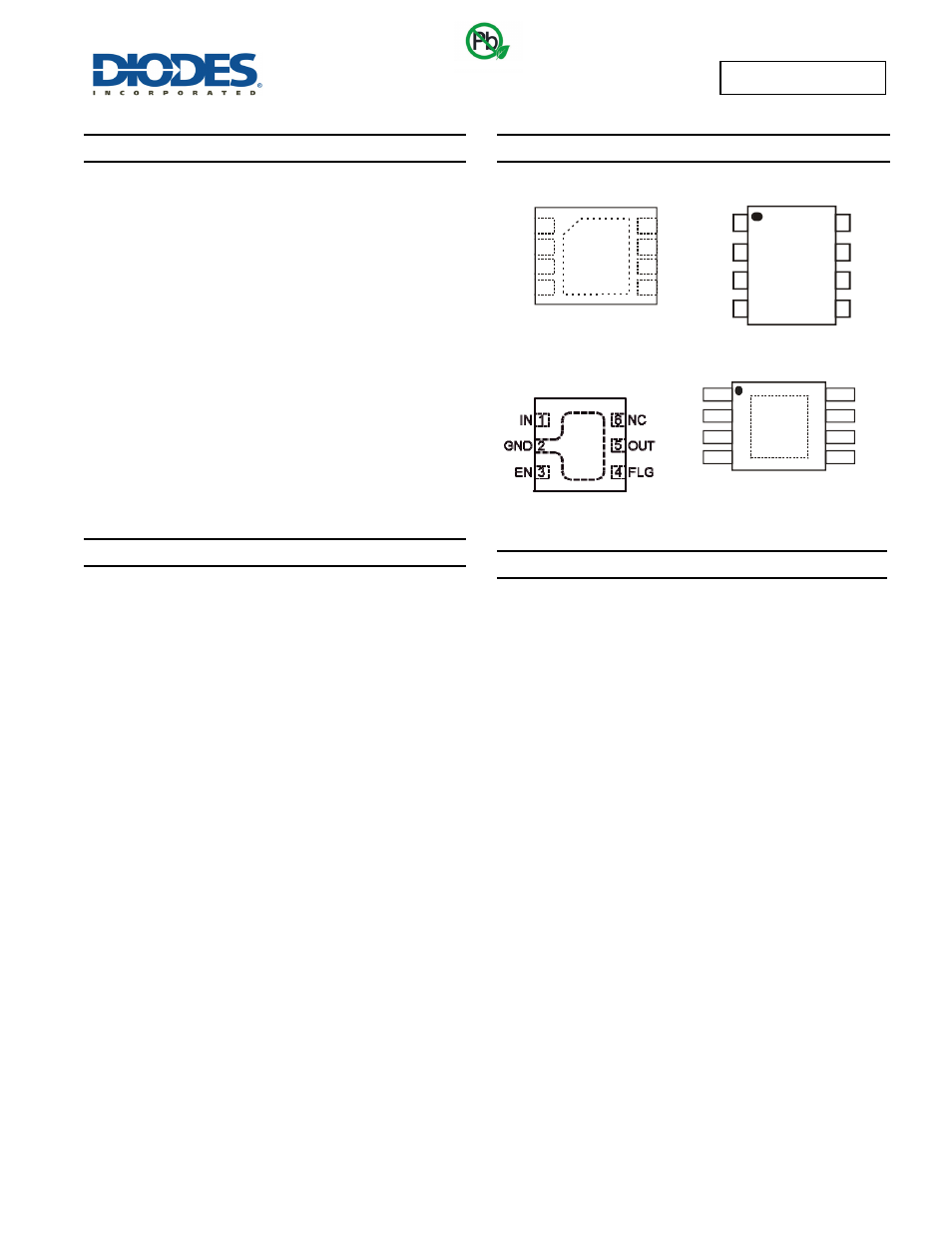

Pin Assignments
FLG
OUT
OUT
NC
GND
IN
IN
EN
1
2
3
4
8
7
6
5
(Top View)
U-DFN3030-8
Type E
(Top View)
(SO-8)
NC
OUT
OUT
FLG
IN
IN
GND
EN
(Top View)
U-DFN2020-6
FLG
OUT
OUT
NC
GND
IN
IN
EN
(Top View)
MSOP-8/MSOP-8EP
Note: Latter with exposed pad
(dotted line)
8
7
6
5
1
2
3
4
Applications
LCD TVs & Monitors
Set-Top-Boxes, Residential Gateways
Laptops, Desktops, Servers, e-Readers
Printers, Docking Stations, HUBs
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
