AP1121
DUAL 1A LOW DROPOUT POSITIVE REGULATOR
AP1121 Rev. 5 6 of 7 FEBRUARY 2009
www.diodes.com © Diodes Incorporated
Marking Information
(1) SOP-8L
( Top View )
AP1121 X
YY WW X X
Logo
Part Number
5 8
4 1
WW : Week : 01~52; 52
YY : Year : 08, 09,10~
L : Lead Free
X : Internal Code
represents 52 and 53 week
A : 3.3V/2.5V version
B : 3.3V/1.8V version
G : Green
Package Information

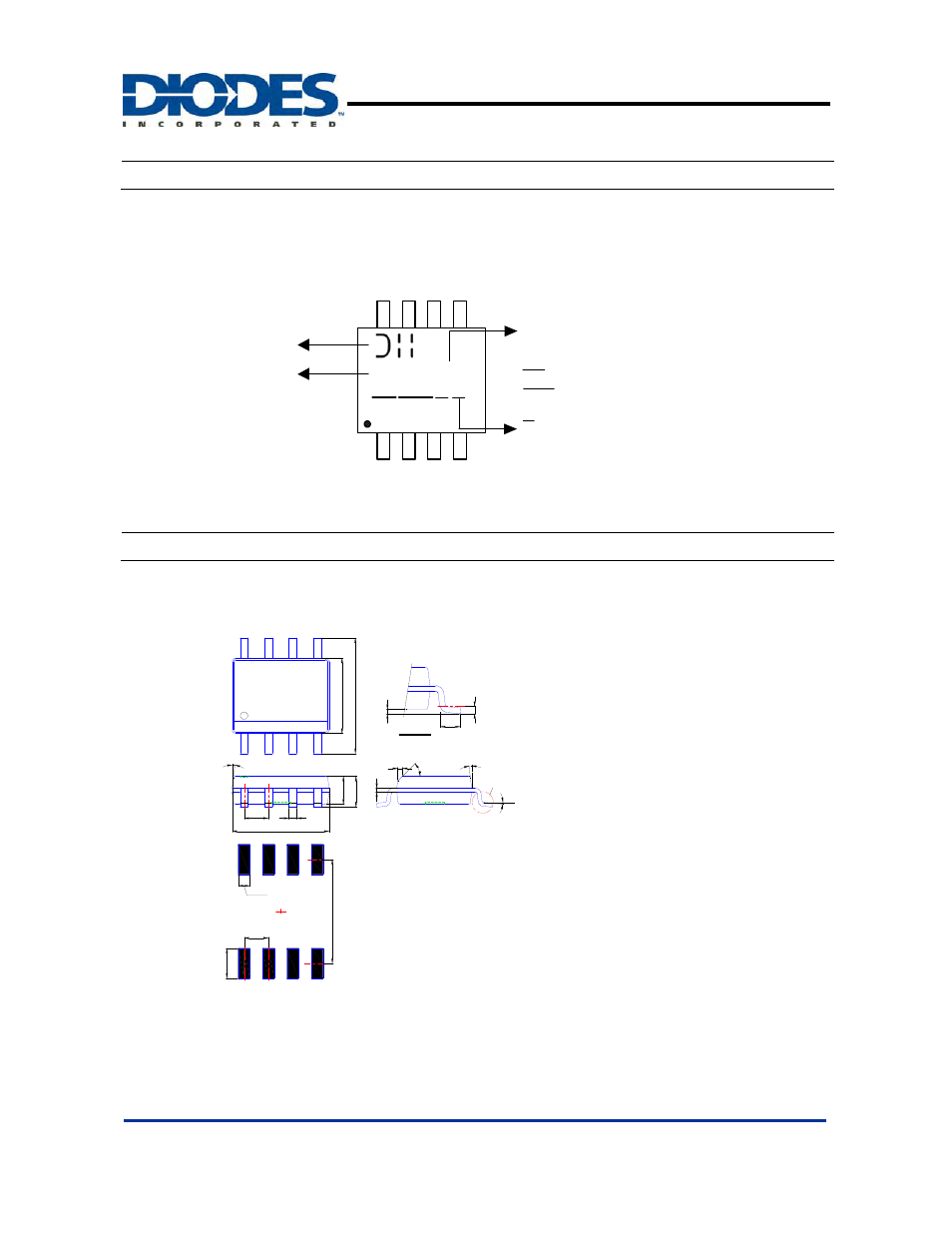

(1) Package type: SOP-8L
1.27typ 0.3/0.5
7°~9°
4.85/4.95
3.85/3.95 5.90/6.10
0.15/
0.25
7°~9°
0.62/0.82 0.10/0.20
Gauge Plane 0.254
Seating Plane
0.35max. 45°
Detail "A"
Detail "A"
1.30/1.
50
1.75max
.
Land Pattern Recommendation
(Unit: mm)
6x-1.27
8x-1.55
8x-0.60
5.4
0°/8°
