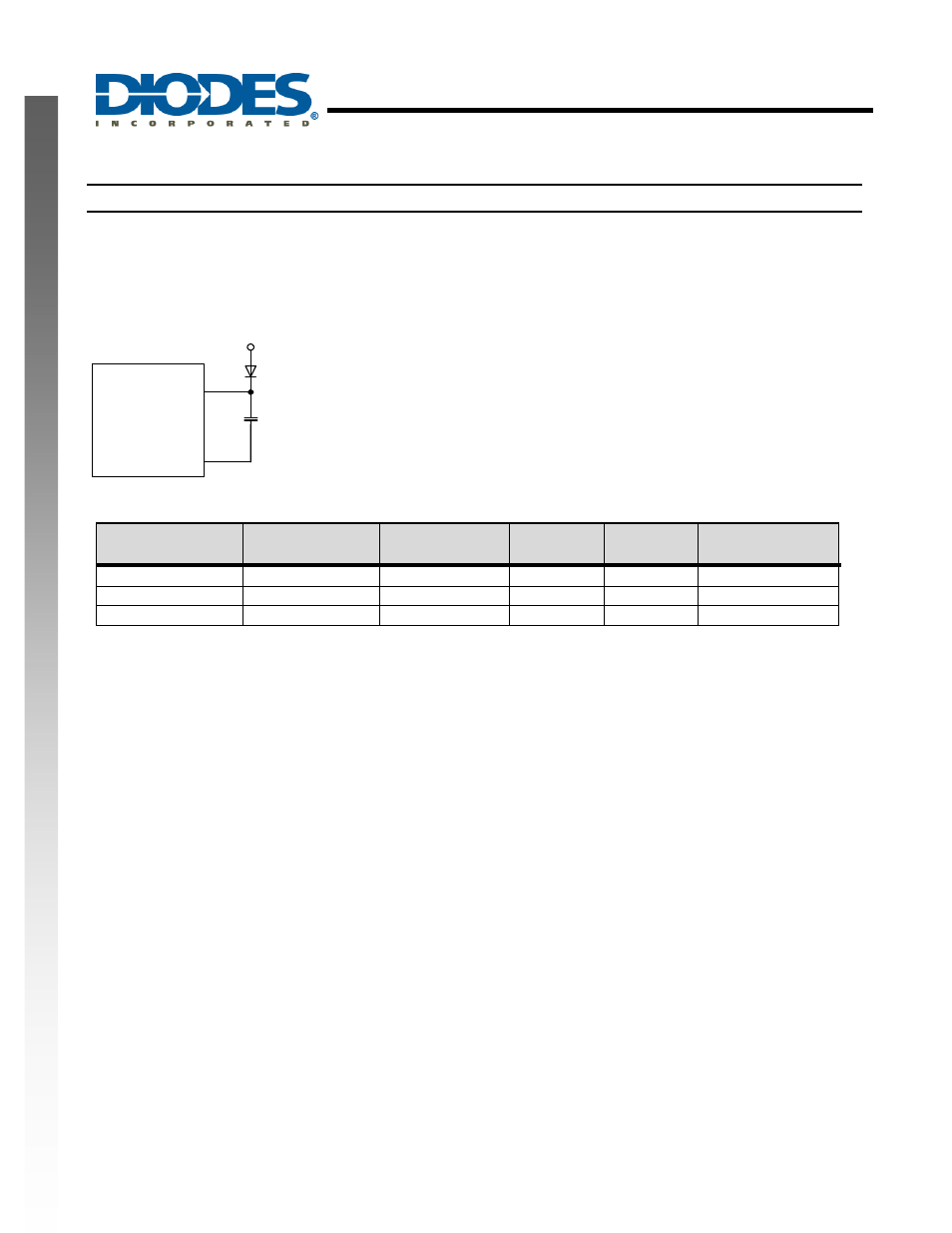

External Bootstrap Diode
It is recommended that an external bootstrap diode be added when the input voltage is no greater than 5V or the 5V rail is
available in the system. This helps improve the efficiency of the regulator. The bootstrap diode can be a low cost one such as
IN4148 or BAT54.
AP5101
BST
SW
10nF
BOOST
DIODE
5V
7
1
Figure 4. External Bootstrap Diode
Manufacturer
Part Number
Inductance(µH)
Max DCR
(
Ω)
Current
Rating (A)
Dimensions
L x W x H (mm3)
Toko
A921CY-4R7M
4.7
0.027
1.66
6.0 x 6.3 x 3.0
Sumida
CDRH4D28C/LD
4.7
0.036
1.50
5.1 x 5.1 x 3.0
Wurth Electronics
7440530047
4.7
0.038
2.00
5.8 x 5.8 x 2.8
Table 2. Suggested Surface Mount Inductors
