340kHz, 2A Synchronous DC-DC Buck Converter AP3502F
Oct. 2012 Rev. 1. 3 BCD Semiconductor Manufacturing Limited
3
TR: Tape & Reel
Blank: Tube
Functional Block Diagram
S
R
Q
Q
INTERNAL
REGULATOR
OSCILLATOR
2
7
5
4
3
1
VA
BS
SW
GND
EA
6
COMP FB
EN
IN
COMPARATOR
8
SS
CURRENT
SENSE
AMPLIFIER
CLK
SLOP
COMP
PWM
COMPARATOR
1.1V
+
SCP
VA
VB
VB
6 A
90k/340k
0.925V
2.5V
M1
M2
0.3V
COMPARATOR 1.5V
SHUTDOWN
LOCK

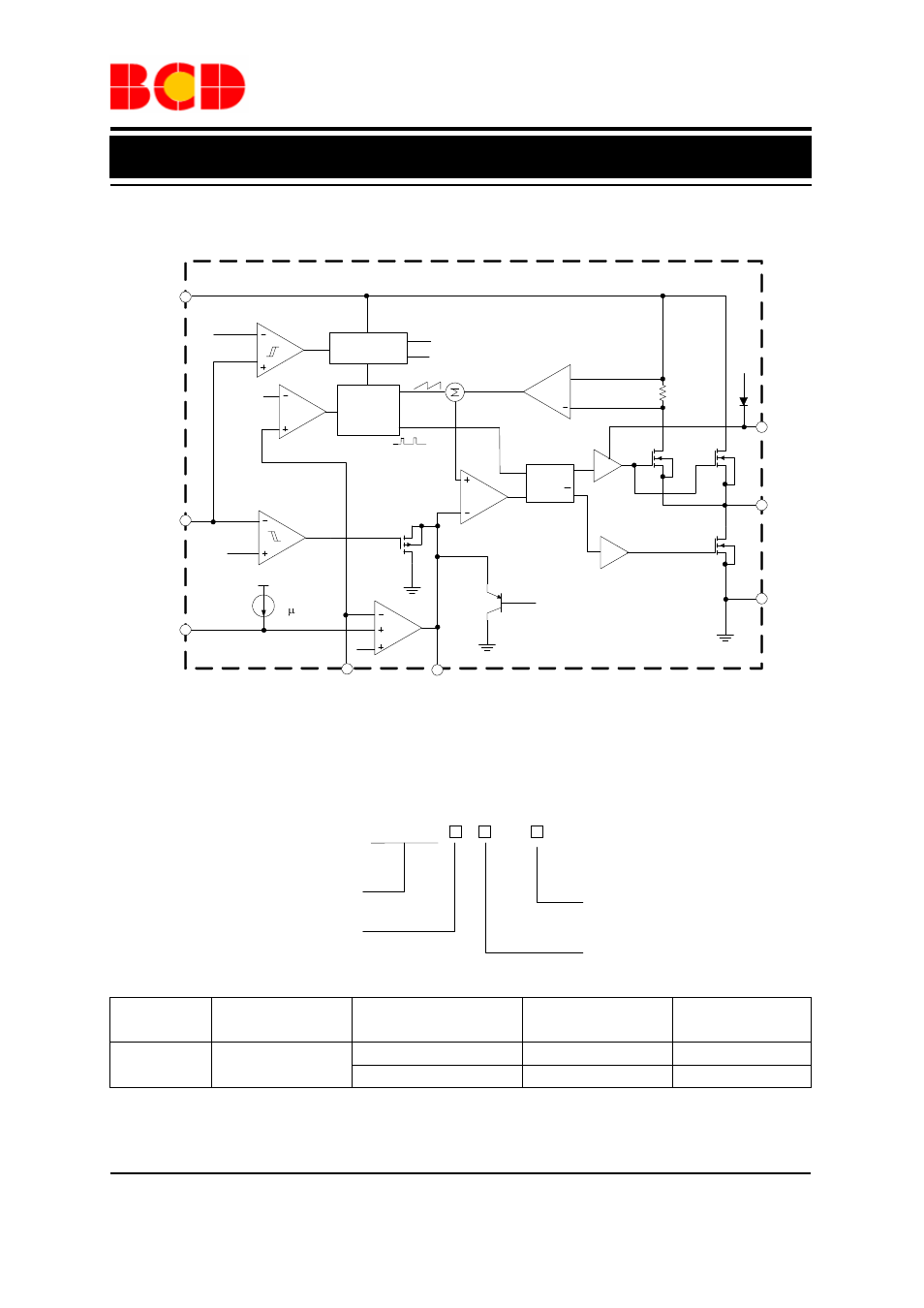

Figure 3. Functional Block Diagram of AP3502F
Ordering Information
AP3502F -
Circuit Type
Package
Temperature
Range
Part Number Marking ID Packing Type
SOIC-8 -40 to 85
°C
AP3502FM-G1 3502FM-G1 Tube
AP3502FMTR-G1 3502FM-G1 Tape & Reel
BCD Semiconductor's Pb-free products, as designated with "G1" suffix in the part number, are RoHS compliant
and green.
G1: Green
Package
M: SOIC-8
