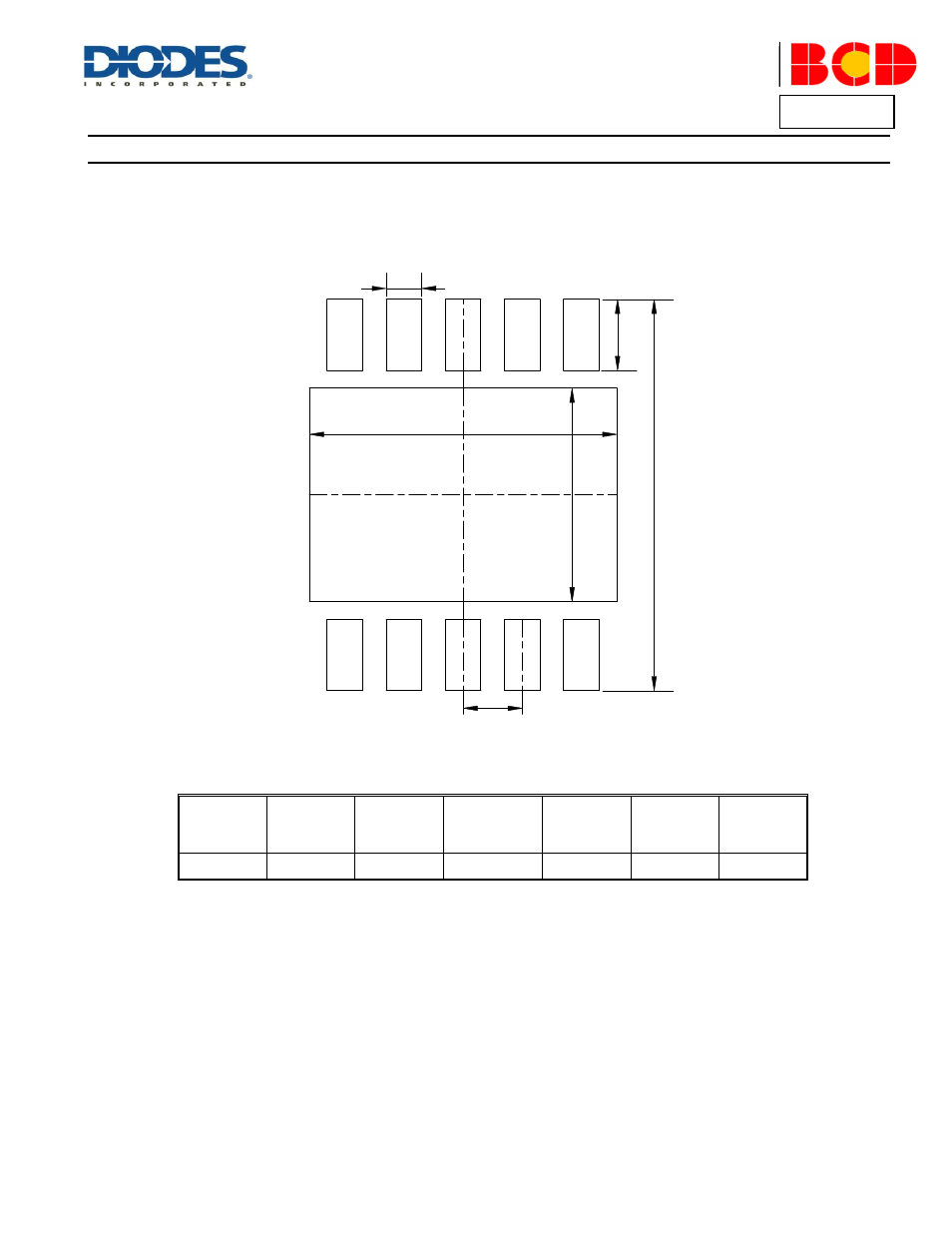

Suggested Pad Layout
(1) Package Type: U-DFN3030-10
X1
Y1
X2
Y2
Y
E
Dimensions
Y
(mm)/(inch)
X1
(mm)/(inch)
Y1
(mm)/(inch)
X2
(mm)/(inch)
Y2
(mm)/(inch)
E
(mm)/(inch)
Value 3.300/0.130 0.300/0.012 0.600/0.024 2.600/0.102 1.800/0.071 0.500/0.020
