AP1539
18V 4A 300KHz BUCK CONVERTER
AP1539 Rev. 4 1 of 13 OCTOBER 2009
DS31477 www.diodes.com © Diodes Incorporated
•
Input voltage: 3.6V to 18V
•
Output voltage: 0.8V to V CC
• Output current: up to 4A
• Duty ratio: 0% to 99% PWM control
•
Oscillation frequency: 300KHz typ.
• Soft-start like, Current limit and Enable function
• Thermal Shutdown function
•
Built-in internal SW P-channel MOS
• SOP-8L-DEP: Available in “Green” Molding Compound
(No Br, Sb)
•
Lead Free Finish / RoHS Compliant (Note 1)
AP1539 consists of step-down switching regulator with PWM
control. These devices include a reference voltage source,
oscillation circuit, error amplifier, internal PMOS.
AP1539 provides low-ripple power, high efficiency, and excellent
transient characteristics. The PWM control circuit is able to vary
the duty ratio linearly from 0 up to 99%. This converter also
contains an error amplifier circuit as well as a soft-start circuit that
prevents overshoot at startup. An enable function, an over
current protect function and a short circuit protect function are built
inside, and when OCP or SCP happens, the operation frequency
will be reduced from 300KHz to 50KHz. Also, an internal
compensation block is built in to minimum external component
count. With the addition of an internal P-channel Power MOS, a
coil, capacitors, and a diode connected externally, these ICs can
function as step-down switching regulators. They serve as ideal
power supply units for portable devices when coupled with the
SOP-8L-DEP mini-package, providing such outstanding features
as low current consumption. Since this converter can
accommodate an input voltage up to 18V, it is also suitable for the
operation via an AC adapter.
• PC
Motherboard
• LCD
Monitor
• Graphic Card
• DVD-Video Player
• Telecom
Equipment
• ADSL Modem
• Printer and other Peripheral Equipment
• Microprocessor
core supply

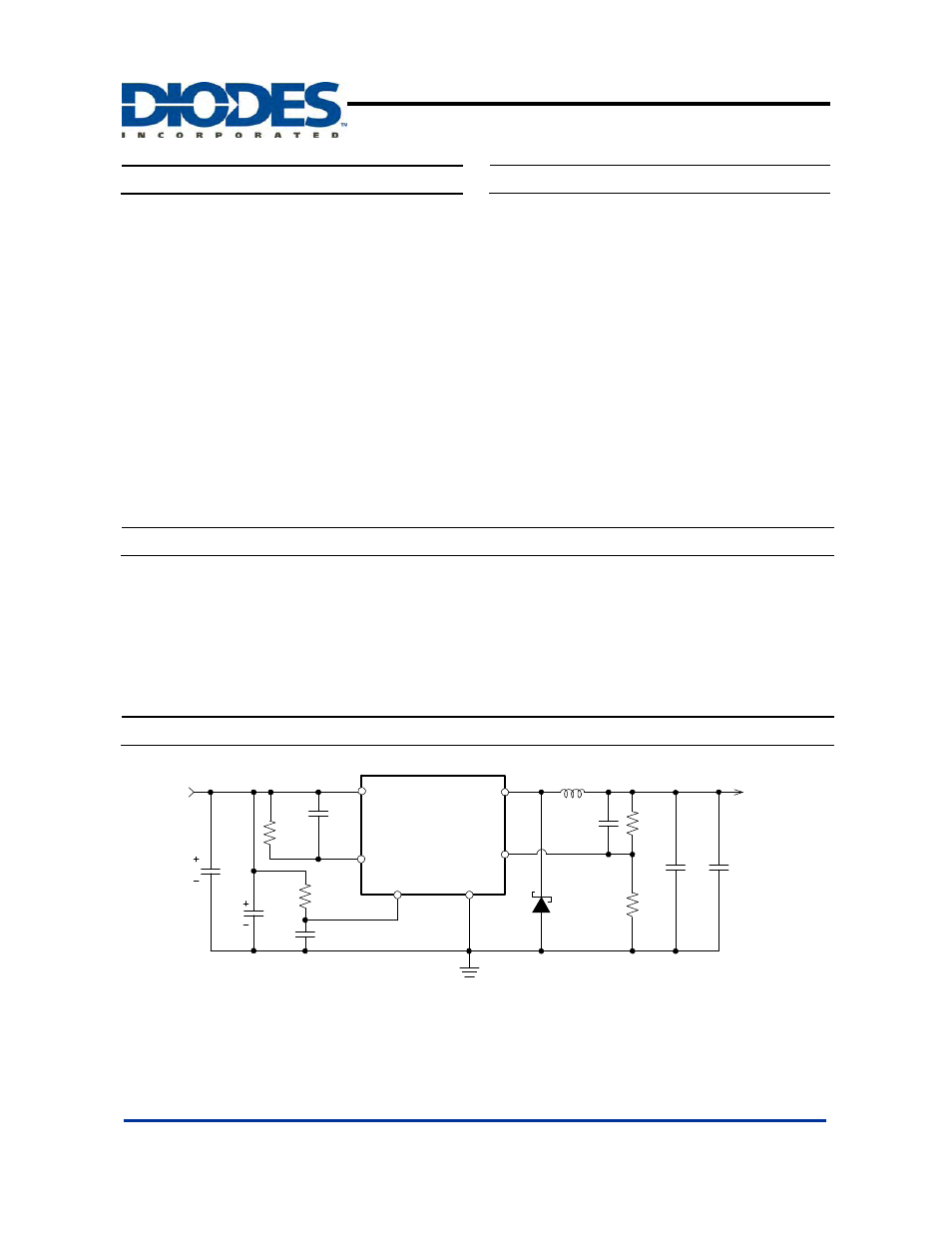

Typical Application Circuit
AP 1539
+
- V
SS EN
Cc
R
A
R
B D1
**
FB
Vcc Output
CVcc
V
OUT
= 5V/4A
V
IN
R
OCSET
OCSET C
OUT
C
IN
Option
*
C
OCSET
C
EN
R
EN
Option
100K
V
OUT = V FB
x (1+ R
A
/R
B
)
R
B
= 0.7K~5K ohm
L1
22uH
6.8K
1.3K
3.9K
0.1uF
+
-
C
0.1uF 470uF
***
470uF
0.1uF
Notes: * Typical feedback compensation (Cc): 5600pF.
** Suggested DIODES Power Schottky P/N: B540 series or PDS540.
*** Suggested C OUT for V OUT < 1V; 680uF.
Features General Description
Applications
