AP1530
18V 3A 300KHz BUCK CONVERTER
AP1530 Rev. 7
1 of 12
NOVEMBER 2009
DS31092
©
Diodes Incorporated
•
Input voltage: 3.6V to 18V.
•
Output voltage: 0.8V to V
CC
.
•
Duty ratio: 0% to 100% PWM control
•
Oscillation frequency: 300kHz typ.
•
Current Limit, Enable function
• Thermal
Shutdown
function
•
Built-in internal SW P-channel MOS
•
Lead Free package: SOP-8L
•
SOP-8L: Available in “Green” Molding Compound
(No Br, Sb) (Note 1)
•
Lead Free Finish/ RoHS Compliant (Note 2)
AP1530 consists of step-down switching regulator with PWM
control. These devices include a reference voltage source,
oscillation circuit, error amplifier and internal PMOS.
AP1530 provides low-ripple power, high efficiency, and excellent
transient characteristics. The PWM control circuit is able to vary
the duty ratio linearly from 0 up to 100%. This converter also
contains an error amplifier circuit. An enable function, an over
current protection and a short circuit protection are built inside,
and when OCP or SCP happens, the operation frequency will be
reduced from 300kHz to 50kHz. Also, an internal compensation
block is built in to minimum external component count.
With the addition of an internal P-channel Power MOS, a coil,
capacitors, and a diode connected externally, these ICs can
function as step-down switching regulators. They serve as ideal
power supply units for portable devices when coupled with the
SOP-8L package, providing such outstanding features as low
current consumption. Since this converter can accommodate an
input voltage up to 18V, it is also suitable for the operation via an
AC adapter.
• PCD
Motherboard
• LCD
Monitor
• Graphic
Card
• DVD-Video
Player
• Telecom
Equipment
• ADSL
Modem
•
Printer and other Peripheral Equipment
• Microprocessor
core
supply
•
Networking power supply

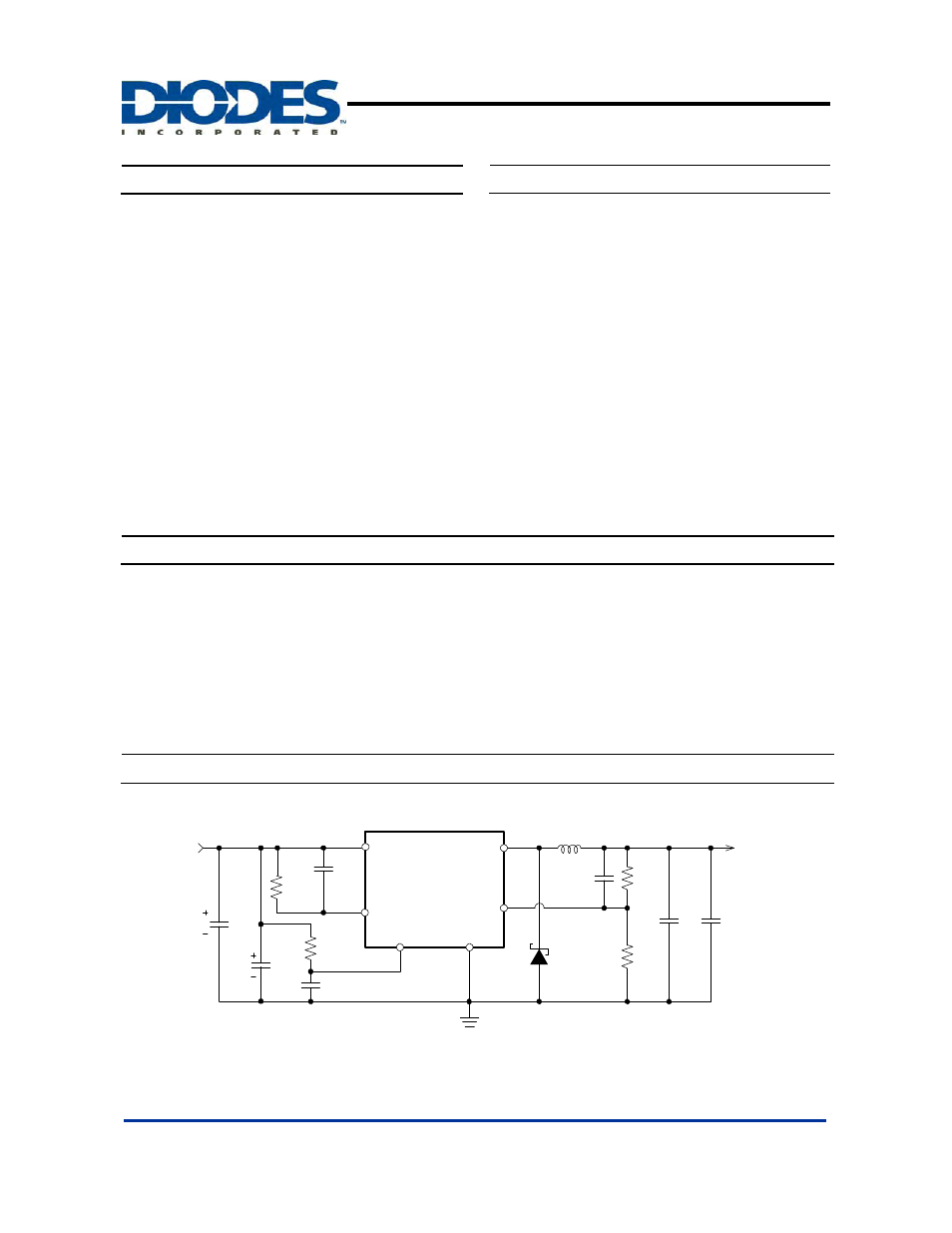

Typical Application Circuit
AP 1530
+
-
V
SS
EN
Cc
R
A
R
B
D1
*
FB
Vcc
Output
CVcc
V
OUT
= 5V/3A
V
IN
R
OCSET
OCSET
C
OUT
C
IN
Option
C
OCSET
C
EN
R
EN
Option
100K
L1
22uH
6.8K
1.3K
3K
0.1uF
+
-
C
0.1uF
470uF
470uF
0.1uF
*
Suggested DIODES Power Schottky P/N: B340 series or PDS340.
V
OUT
= V
FB
x (1+ R
A
/R
B
)
R
B
= 0.7K~5K ohm
Features
General Description
Applications
