AP1501
150KHz, 3A PWM BUCK DC/DC CONVERTER
AP1501 Rev. 11 2 of 12 JANUARY 2009
www.diodes.com © Diodes Incorporated

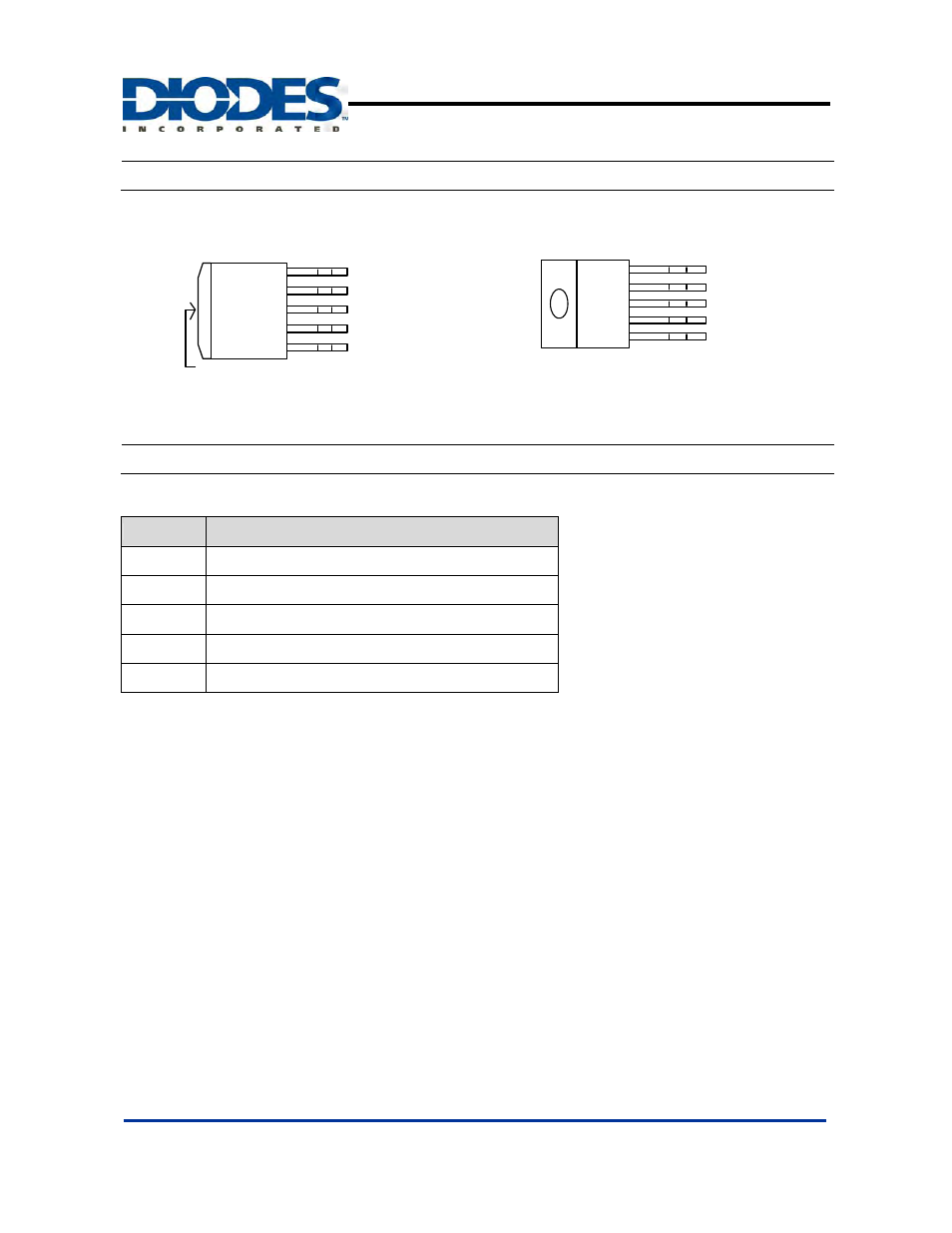

Pin Assignments
( Top View )
1 V
IN
5 SD
4 FB
3 Gnd
2 Output
Metal Tab GND
TO263-5L
1 V
IN
5 SD
4 FB
3 Gnd
2 Output
( Top View )
TO220-5L/TO220-5L(R)
Pin Descriptions
Name Description
V
IN
Operating voltage input
Output Switching output
Gnd Ground
FB Output voltage feedback control
SD ON/OFF shutdown
