1.5MHz STEP-UP DC-DC CONVERTER AP3012
1
May 2010 Rev. 1. 6
BCD Semiconductor Manufacturing Limited
Data Sheet
General Description
The AP3012 is a high power, constant frequency, cur-
rent mode PWM, inductor based, step-up (boost) con-
verter. The converter operates at high frequency
(1.5MHz) so that a small, low profile inductor can be
used.
The AP3012 has built-in overvoltage protection (OVP)
to allow the device goes into shutdown mode when the
output voltage exceeds the OVP threshold of 29V.
The AP3012 is available in standard SOT-23-5 pack-
age.
Features
·
High Efficiency up to 81%
·
Adjustable Output Voltage up to 29V
·
Shutdown Current 1
µ
A Typical
·
1.5MHz Switching Frequency
·
36V 500mA Rugged Integrated Bipolar Switch
·
Built-in Soft-start to Reduce Inrush Current Dur-
ing Start-up
·
On-chip Overvoltage Protection
·
Uses Low ESR Ceramic Output Capacitor
·
Uses Small Inductor
Applications
·
LCD/OLED Display Bias Supply
·
White LED Driver for LCD Display Backlights
·
Cellular Phones

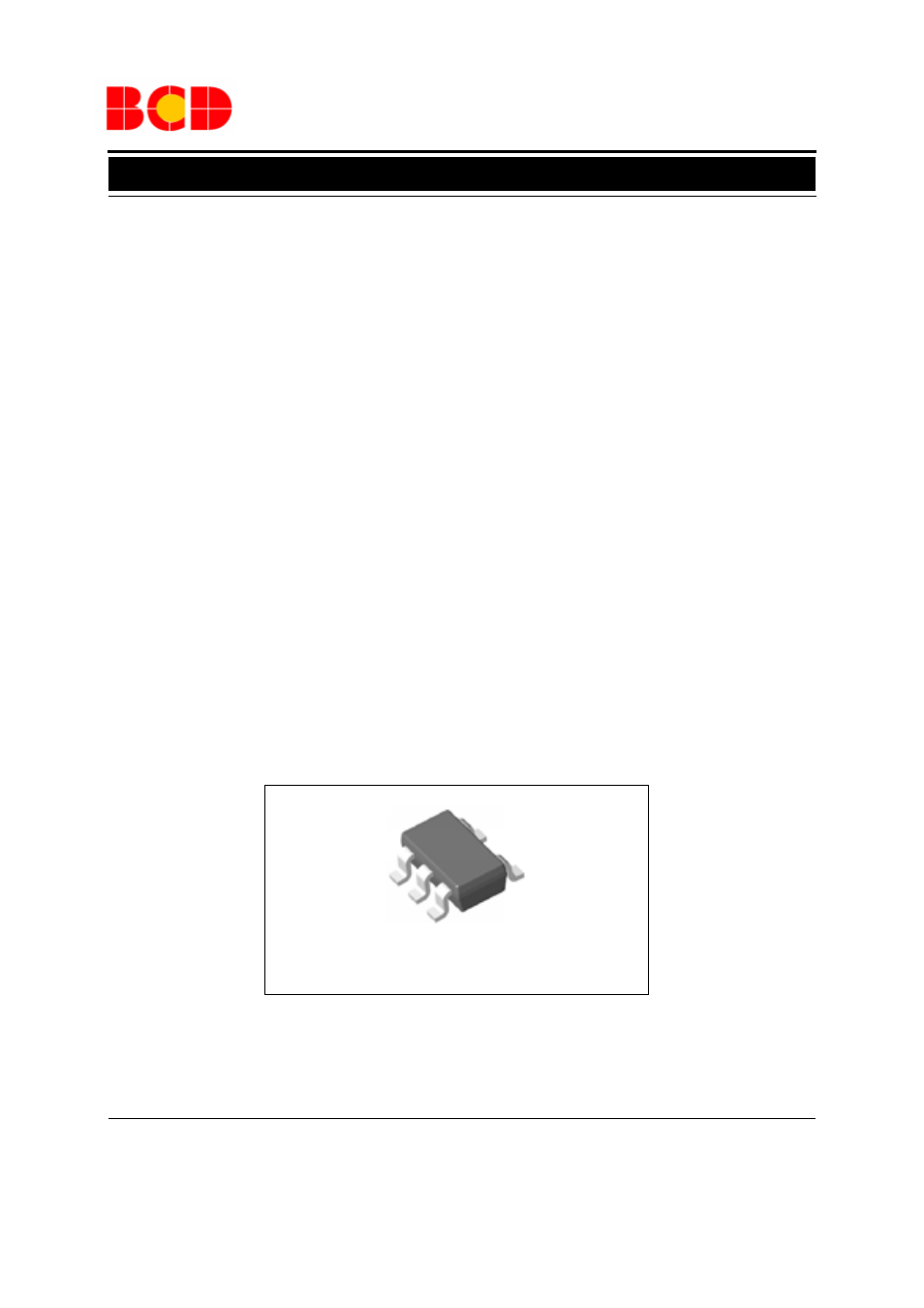

Figure 1. Package Type of AP3012
SOT-23-5
