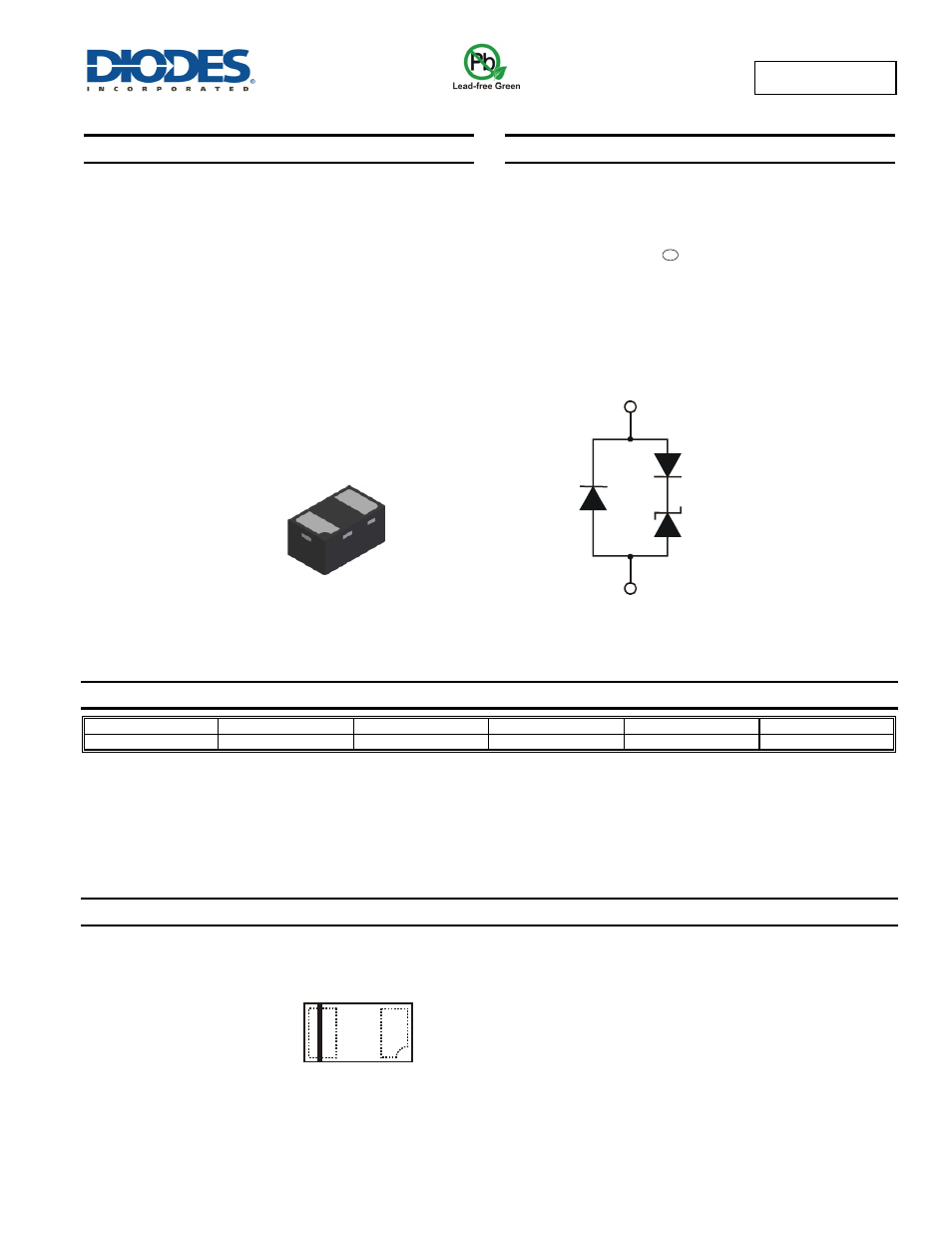

D5V0F1U2LP


1 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Features

IEC 61000-4-2 (ESD): Air ±20kV, Contact ±15kV

1 Channel of ESD Protection

Low Channel Input Capacitance of 0.5pF Typical

Low Profile Package (0.53mm max) and Ultra-small PCB
Footprint Area (1.08 * 0.68mm max) Suitable for Compact
Portable Electronics

Typically Used at High Speed Ports such as USB 2.0,
IEEE1394, Serial ATA, DVI, HDMI, PCI

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability


Mechanical Data

 Case:

X1-DFN1006-2

Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: NiPdAu over Copper leadframe. Solderable per MIL-
STD-202, Method 208

Weight: 0.001 grams (Approximate)























Ordering Information

(Note 4)

Product

Compliance Marking

Reel Size (inches)

Tape Width (mm)

Quantity per Reel

D5V0F1U2LP-7B

Standard

U7

7

8

10,000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.




Marking Information
















e4

Device Schematic

X1-DFN1006-2

Bottom View

U7 = Product Type Marking Code
Line Denotes Pin 1

Pin 1

Pin 2

U7
