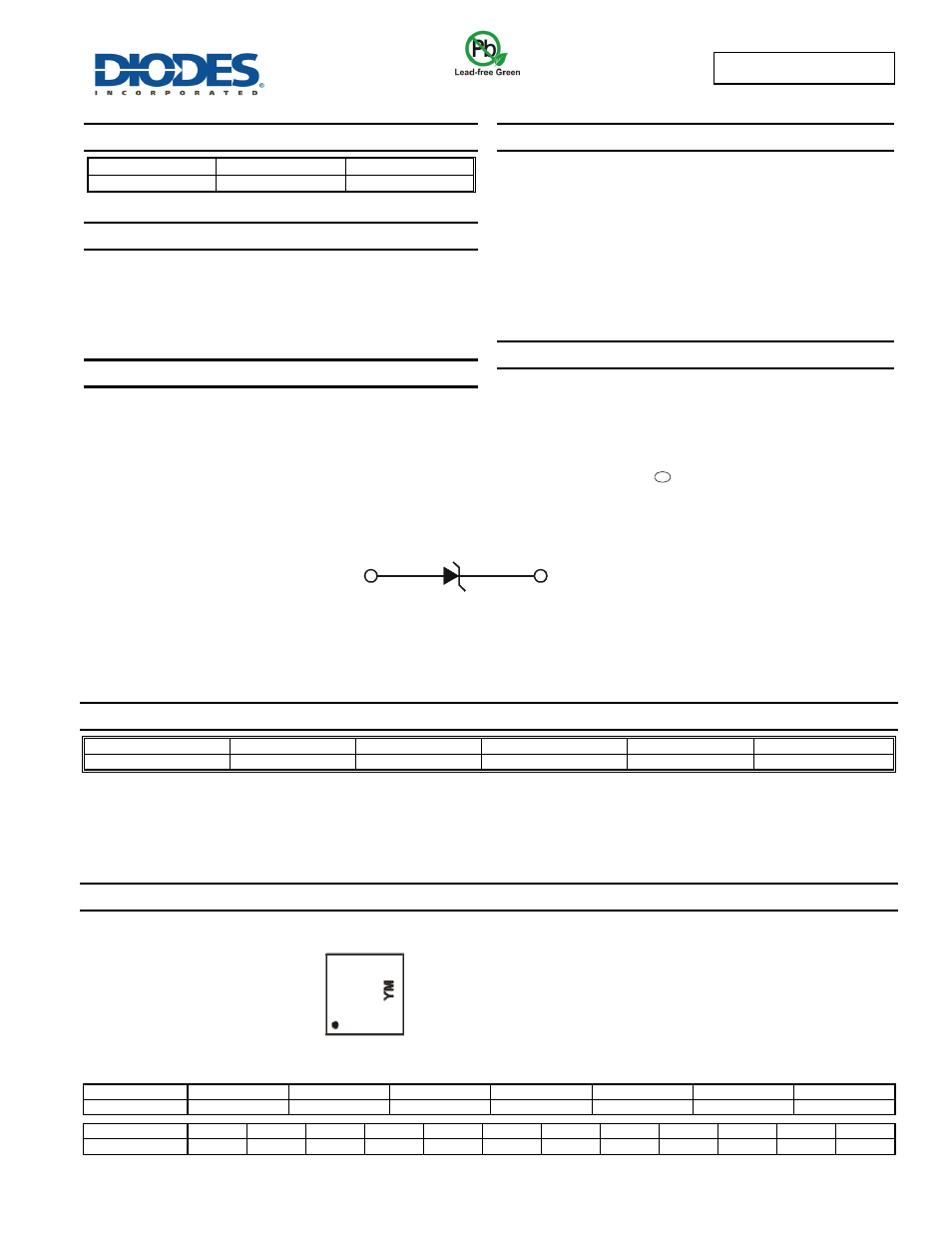

Diodes D26V0H1U2LP20 - Manual

D26V0H1U2LP20
Document number: DS36767 Rev. 2 - 2
1 of 4
www.diodes.com
May 2014
© Diodes Incorporated
D26V0H1U2LP20
ADVAN
CE I
N
F
O
RM
ATI
O
N
26V UNI-DIRECTIONAL TVS DIODE
Product Summary
V
BR (min)
I
PP (max)
I
R (max)
28V 9.5A 100nA
Description
This new generation TVS is designed to protect sensitive electronics
from the damage due to ESD. The combination of small size and high
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players.
Applications
 Cellular Handsets
 Portable Electronics
 Computers and Peripheral
Features
 Low Profile Package (0.605mm max) and Ultra-small PCB
Footprint Area (2.05 * 2.05mm max) Suitable for Compact
Portable Electronics
 Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±30kV, Contact ±30kV
 1 Channel of ESD Protection
 Low Channel Input Capacitance
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
 Case: U-DFN2020-2
 Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: NiPdAu over Copper leadframe. Solderable per MIL-
STD-202, Method 208
 Weight: 0.0065 grams (approximate)
Ordering Information
(Note 4)
Product Compliance Marking Reel Size (inches) Tape Width (mm) Quantity per Reel
D26V0H1U2LP20-7 Standard QV4 7 8 3,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2013 2014 2015 2016 2017 2018 2019
Code A B C D E F G
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
e4
Device Schematic
Pin 2 Pin 1
QV4 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
QV4
