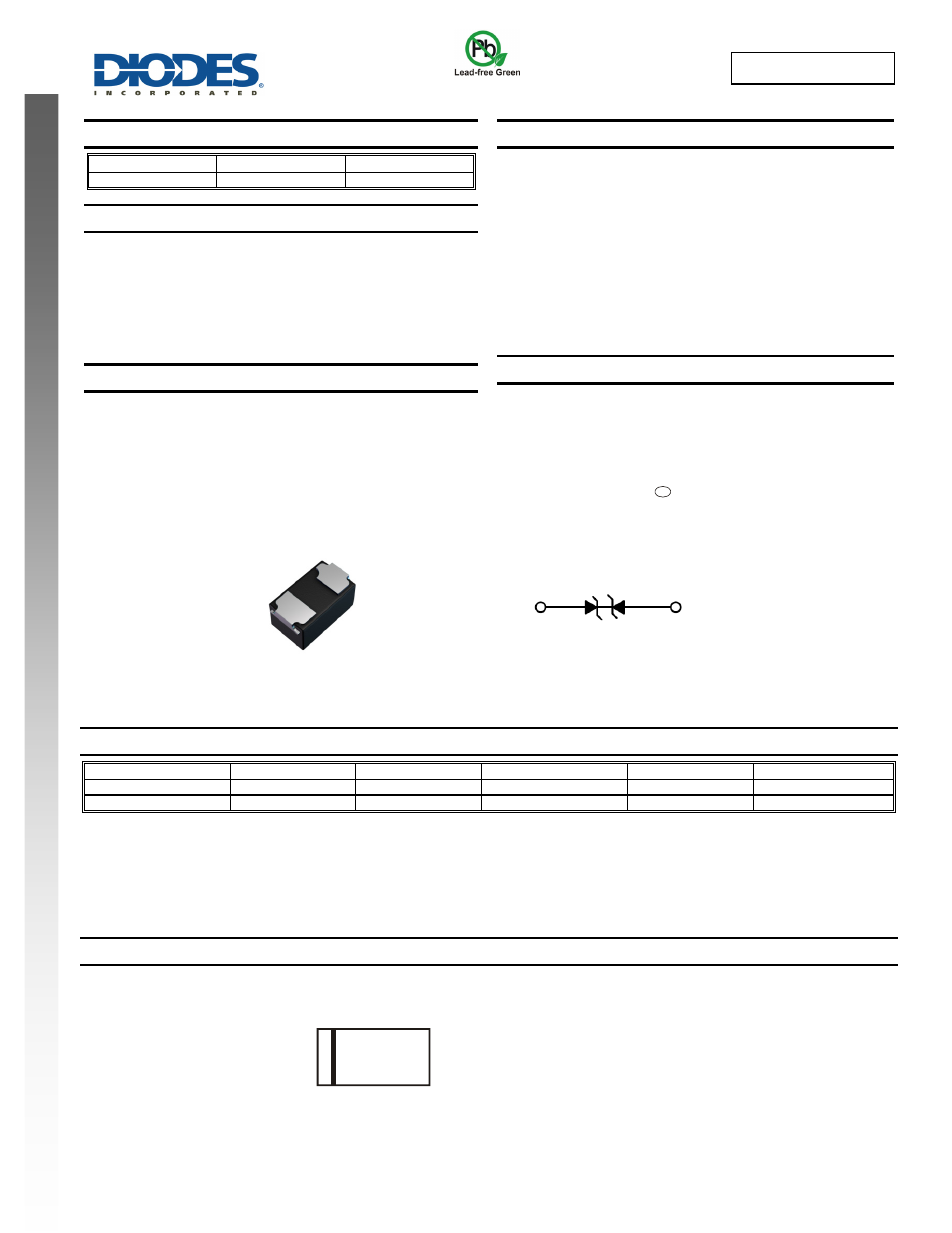

D24V0L1B2LPS

Document number: DS36505 Rev. 2 - 2

1 of 4

www.diodes.com

April 2014

© Diodes Incorporated

D24V0L1B2LPS

ADVAN

CE I

N

F

O

RM

ATI

O

N

NEW PROD

UC

T

24V BIDIRECTIONAL TVS DIODE

Product Summary

V

BR (min)

I

PP (max)

C

T (typ)

26V 2A 6pF

Description

This new generation TVS is designed to protect sensitive electronics
from the damage due to ESD. The combination of small size and high
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players. The
sidewall plating option of this package allows optical inspection after
soldering reflow for easy and reliable quality control.

Applications

• Cellular

Handsets

• Portable

Electronics

• Computers

and

Peripheral

Features

Low Profile Package (0.53mm max) and Ultra-small PCB Footprint
Area (1.08 * 0.68mm max) Suitable for Compact Portable
Electronics

Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±20kV, Contact ±20kV

1 Channel of ESD Protection

Low Channel Input Capacitance

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

PPAP Capable

Mechanical Data

Case: U-DFN1006-2/SWP with sidewall plating

Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: NiPdAu over Copper leadframe. Solderable per MIL-
STD-202, Method 208

e4

Weight: 0.001 grams (approximate)














Ordering Information

(Note 4)

Product

Compliance Marking

Reel Size (inches)

Tape Width (mm)

Quantity per Reel

D24V0L1B2LPS-7B

AEC-Q101

SG

7

8

10,000/Tape & Reel

D24V0L1B2LPSQ-7B

Automotive

SG

7

8

10,000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.


Marking Information














Device Schematic

SG = Product Type Marking Code

SG

Bottom View
