D12V0L1B2LP
Document number: DS36846 Rev. 2 - 2
4 of 5
www.diodes.com
June 2014
© Diodes Incorporated
D12V0L1B2LP
ADVAN
CE I
N
F
O
RM
ATI
O
N
NEW PROD
UC
T

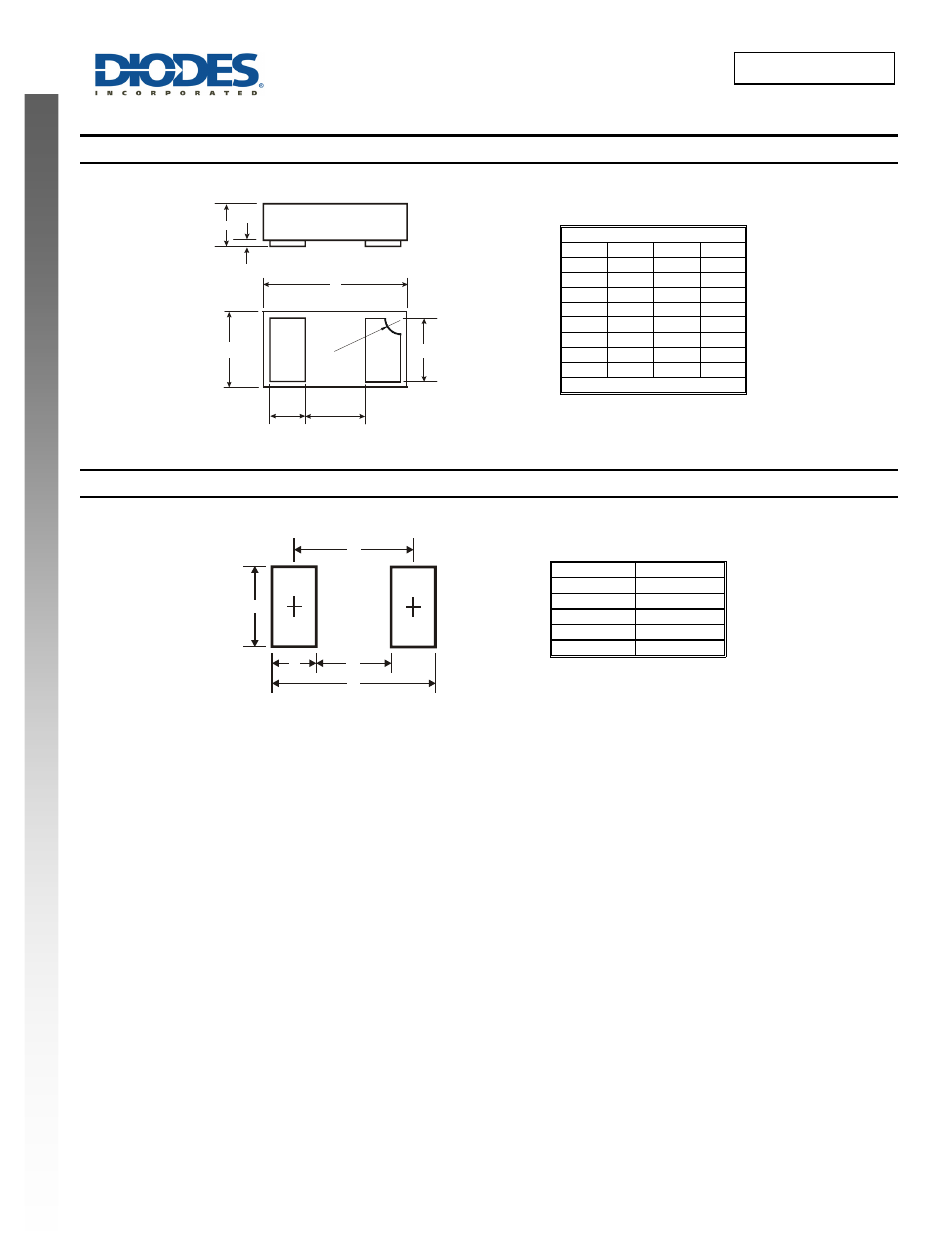

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X1-DFN1006-2
Dim Min Max Typ
A 0.47 0.53 0.50
A1 0 0.05 0.03
b 0.45 0.55 0.50
D 0.95 1.075 1.00
E 0.55 0.675 0.60
e - - 0.40
L 0.20 0.30 0.25
R 0.05 0.15 0.10
All Dimensions in mm
Dimensions Value (in mm)
Z 1.1
G 0.3
X 0.7
Y 0.4
C 0.7
L
E b
R
e
D
A1
A
Z
X
C
G Y
