BSP75G
Issue 4 - May 2006 2 www.zetex.com
© Zetex Semiconductors plc 2006

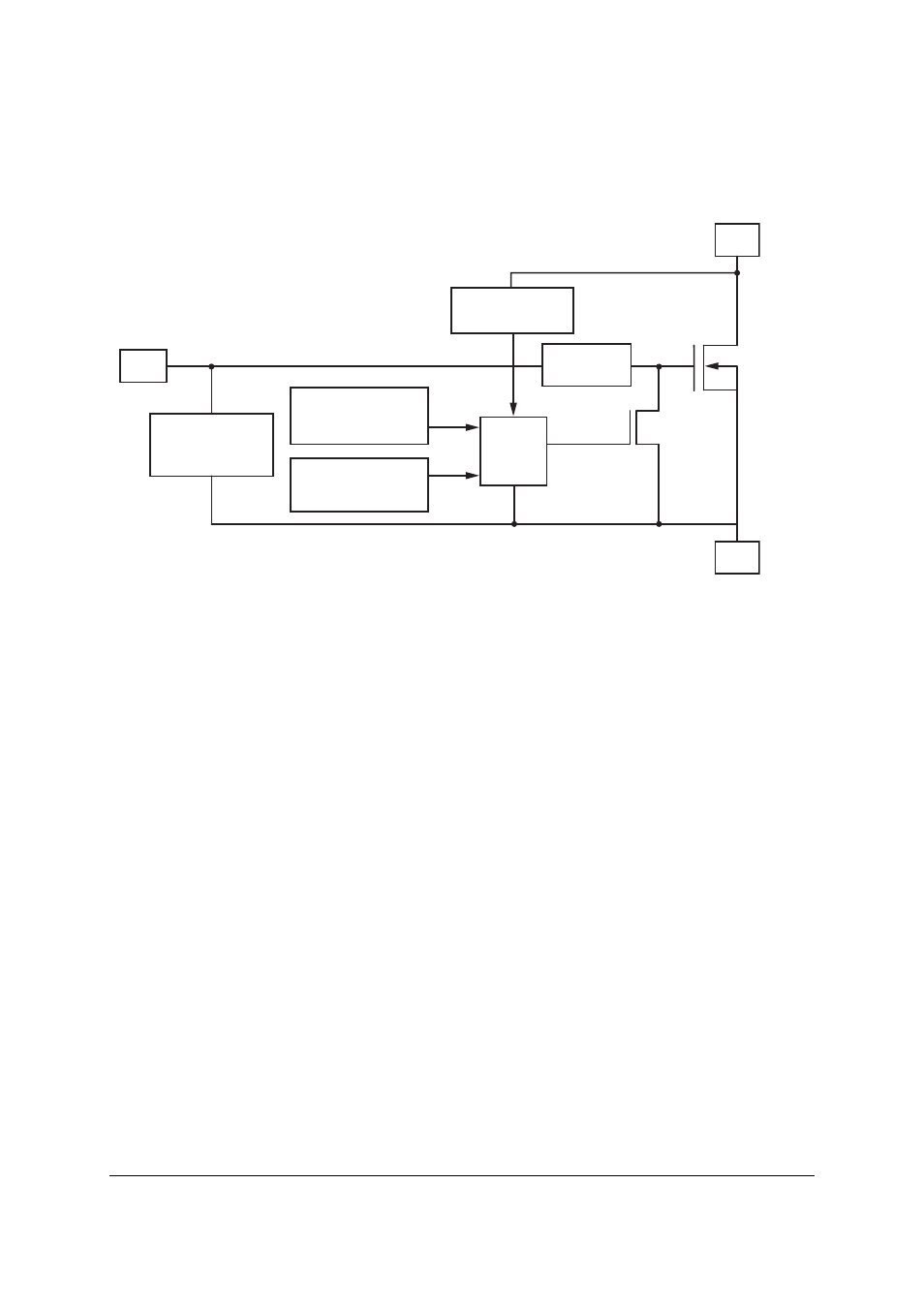

Functional block diagram
Applications
• Especially suited for loads with a high in-rush current such as lamps and motors.
• All types of resistive, inductive and capacitive loads in switching applications.
•
␮
C compatible power switch for 12V and 24V DC applications.
• Automotive rated.
• Replaces electromechanical relays and discrete circuits.
• Linear mode capability - the current-limiting protection circuitry is designed to de-activate at
low Vds, in order not to compromise the load current during normal operation. The design
maximum DC operating current is therefore determined by the thermal capability of the
package/board combination, rather than by the protection circuitry.
S
Over voltage
protection
Over current
protection
Over temperature
protection
Logic
Human body
ESD protection
D
IN
dV/dt
limitation
