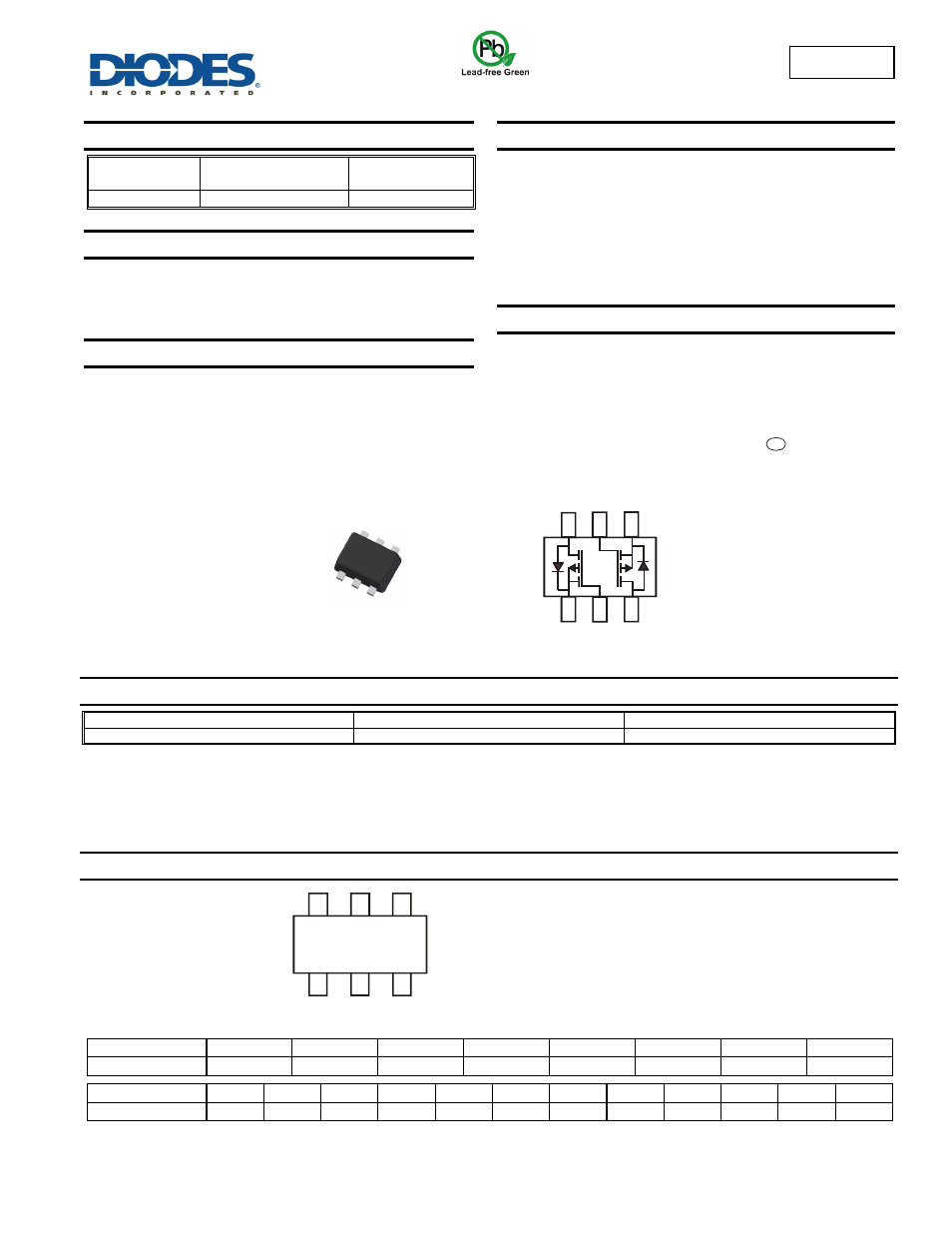

BSS84V
Document number: DS30605 Rev. 9 - 2
1 of 5
www.diodes.com
February 2013
© Diodes Incorporated
BSS84V
NEW PROD
UC
T
DUAL P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Product Summary
V
(BR)DSS
R
DS(on) max
I
D
T
A
= 25°C
-50V 10  @ V
GS
= -5V -130mA
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
 General Purpose Interfacing Switch
 Power Management Functions
 Analog Switch
Features and Benefits
 Low On-Resistance
 Low Gate Threshold Voltage
 Low Input Capacitance
 Fast Switching Speed
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT563
 Case Material: Molded Plastic, "Green" Molding
Compound. UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020C
 Terminals: Finish  Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
 Terminal Connections: See Diagram
 Weight: 0.006 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
BSS84V-7 SOT563 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2005 2006 2007 2008 2009 2010 2011 2012
Code S T U V W X Y Z
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
SOT563
TOP VIEW
TOP VIEW
Internal Schematic
S
1
D
1
D
2
S
2
G
1
G
2
K84 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: S = 2005
M = Month ex: 9 = September
K84 YM
e3
