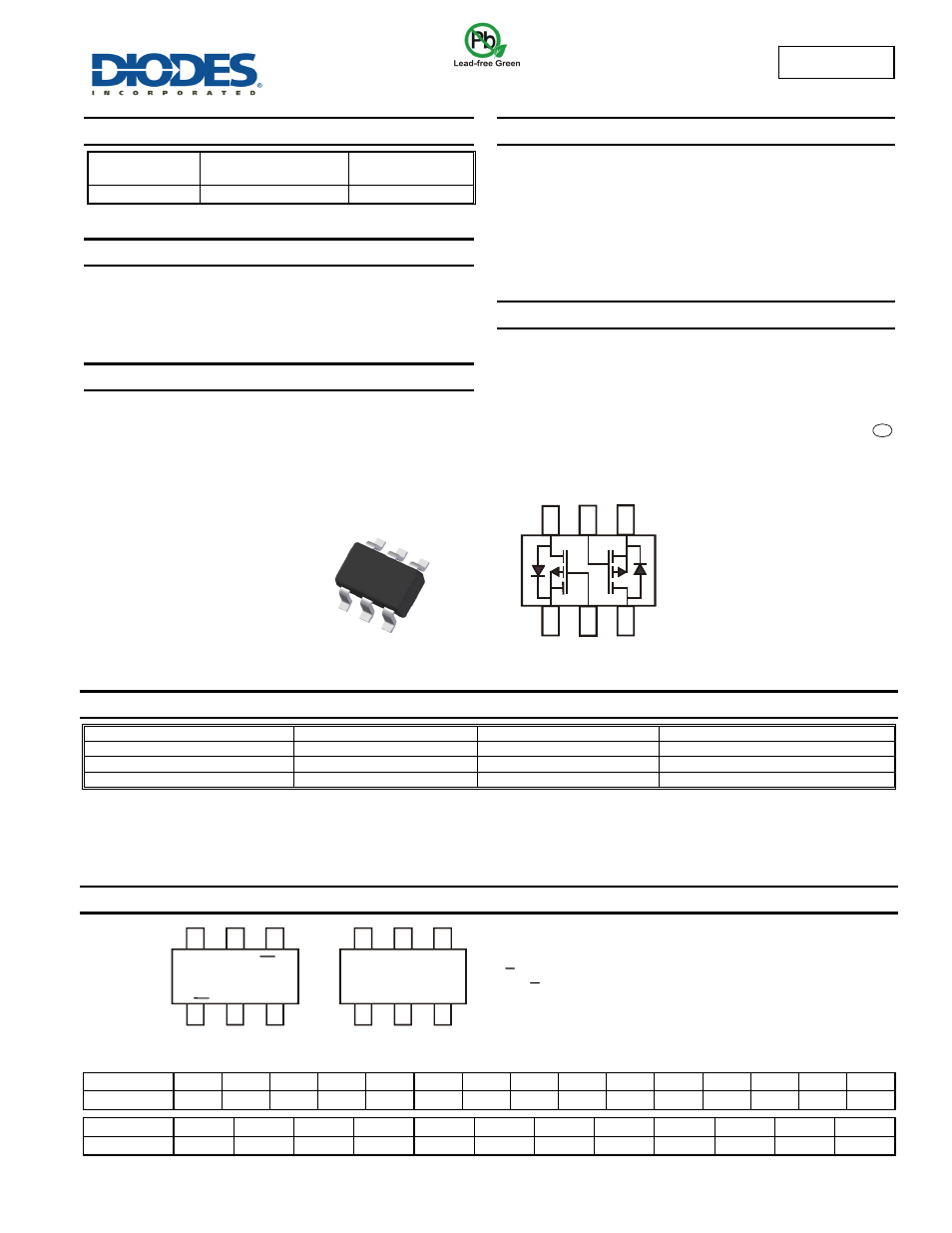

background image

BSS84DW

Document number: DS30204 Rev. 18 - 2

1 of 5

www.diodes.com

January 2014

© Diodes Incorporated

BSS84DW

DUAL P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(on) max

I

D

T

A

= +25°C

-50V

10

 @ V

GS

= -5V

-130mA


Description

This MOSFET has been designed to minimize the on-state resistance
(R

DS(on)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

Applications

General Purpose Interfacing Switch

Power Management Functions

 Analog

Switch

Features and Benefits

 Low

On-Resistance

Low Gate Threshold Voltage

Low Input Capacitance

Fast Switching Speed

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

 Case:

SOT363

Case Material: Molded Plastic. “Green” Molding Compound. UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Terminal Connections: See Diagram

Weight: 0.006 grams (approximate)













Ordering Information

(Note 4)

Part Number

Compliance Case

Packaging

BSS84DW-7-F

Standard

SOT363

3,000/Tape & Reel

BSS84DWQ-13

Automotive

SOT363

10,000/Tape & Reel

BSS84DWQ-7

Automotive

SOT363

3,000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information










Date Code Key

Year

1998

1999

2000

2001

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

Code

J

K

L

M

N

P

R

S

T

U

V

W

X

Y

Z

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D

SOT363

Top View

Top View

Internal Schematic

S

1

D

1

D

2

S

2

G

1

G

2

K84 YM

K8

4

Y

M

e3

K84 YM

K8

4

Y

M

K84 = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YM = Date Code Marking for CAT (Chengdu Assembly/ Test site)
Y or Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
