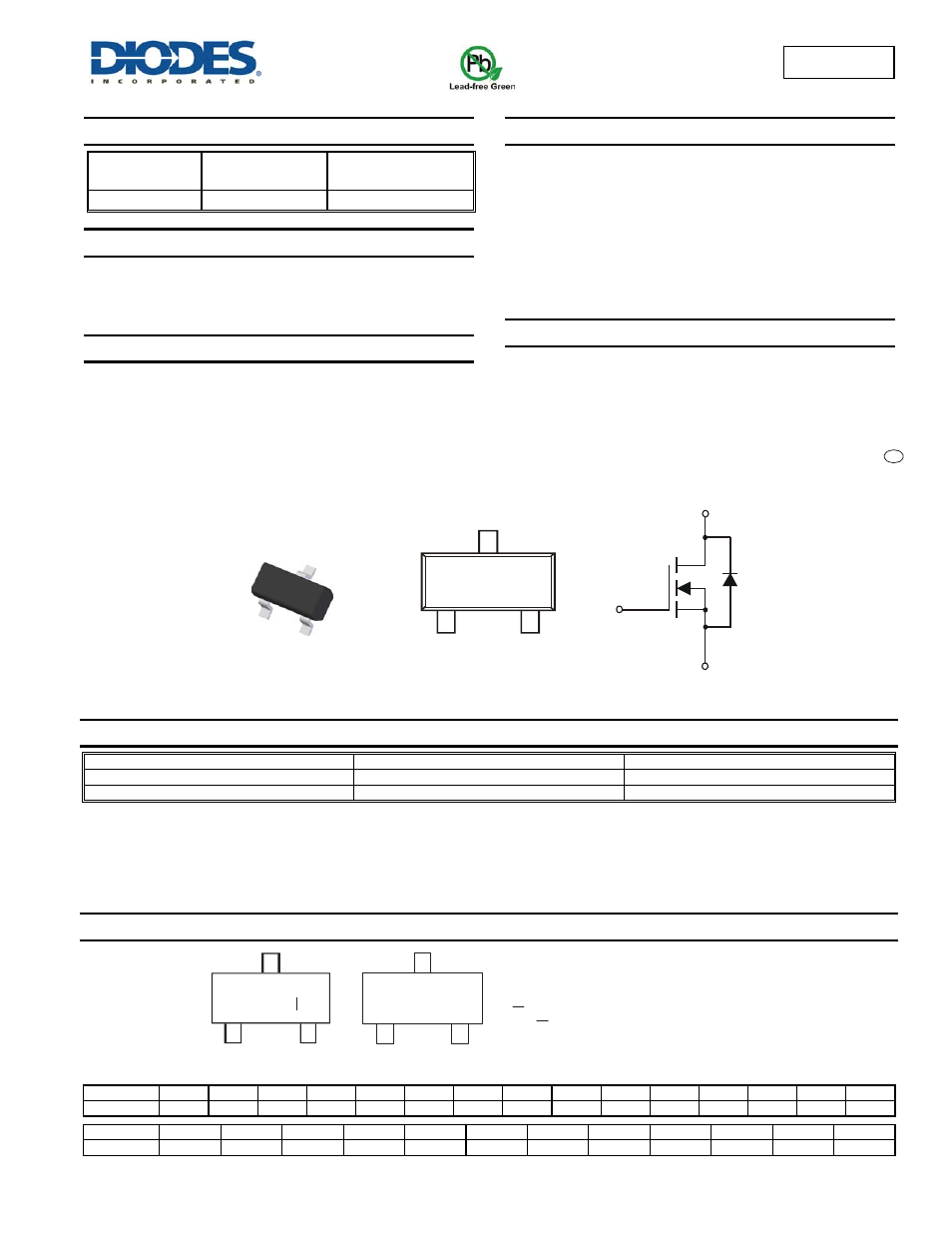

Diodes 2N7002E - Manual

2N7002E
Document number: DS30376 Rev. 14 - 2
1 of 5
www.diodes.com
August 2013
© Diodes Incorporated
2N7002E
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
60V 3 Ω @ V
GS = 10V 300mA
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
 Motor
Control

Power Management Functions
Features and Benefits
 Low
On-Resistance
 Low Gate Threshold Voltage

Low Input Capacitance

Fast Switching Speed
 Small Surface Mount Package
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case:
SOT23

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
 Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
2N7002E-7-F SOT23 3,000/Tape & Reel
2N7002E-13-F SOT23 10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
Code P R S T U V W X Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
SOT23
Top View
D
G S
Top View
Pin Out Configuration
Equivalent Circuit
Source
Gate
Drain
K7B = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
= Date Code Marking for CAT (Chengdu Assembly/ Test site)
Y or = Year (ex: A = 2013)
M = Month (ex: 9 = September)
Shanghai A/T Site Chengdu A/T Site
e3
Y
YM
K7B
YM
K7B
YM
