DDC(xxxx)U
NPN PRE-BIASED SMALL SIGNAL DUAL SURFACE MOUNT TRANSISTOR
Features
 Epitaxial Planar Die Construction
 Complementary PNP Types Available (DDA)
 Built-In Biasing Resistors
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free "Green" Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
 PPAP Capable (Note 4)
Part Number R1 (NOM) R2 (NOM)
DDC124EU
DDC144EU
DDC114YU
DDC123JU
DDC114EU
22KΩ
47KΩ
10KΩ
2.2KΩ
10KΩ
22KΩ
47KΩ
47KΩ
47KΩ
10KΩ
Mechanical Data
 Case: SOT363
 Case Material: Molded Plastic, “Green” Molding Compound
 UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.006 grams (approximate)
Part Number R1 Only
DDC113TU
DDC143TU
DDC114TU 1KΩ
4.7KΩ
10KΩ
Ordering Information
(Notes 3 & 4)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
DDC124EU-7-F AEC-Q101 N17 7 8 3,000
DDC124EUQ-7-F Automotive N17 7 8 3,000
DDC144EU-7-F AEC-Q101 N20 7 8 3,000
DDC114YU-7-F AEC-Q101 N14 7 8 3,000
DDC114YUQ-7-F Automotive N14 7 8 3,000
DDC114YUQ-13-F Automotive N14 13 8 10,000
DDC123JU-7-F AEC-Q101 N06 7 8 3,000
DDC114EU-7-F AEC-Q101 N13 7 8 3,000
DDC114EUQ-7-F Automotive N13 7 8 3,000
DDC114EUQ-13-F Automotive N13 13 8 10,000
DDC113TU-7-F AEC-Q101 N01 7 8 3,000
DDC143TU-7-F AEC-Q101 N07 7 8 3,000
DDC114TU-7-F AEC-Q101 N12 7 8 3,000
DDC114TUQ-7-F Automotive N12 7 8 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
R
1
R
1
R
2
6 5 4
3 2 1
R
2
R
1
R
1
6 5 4
3 2 1
R1, R2 R1 Only

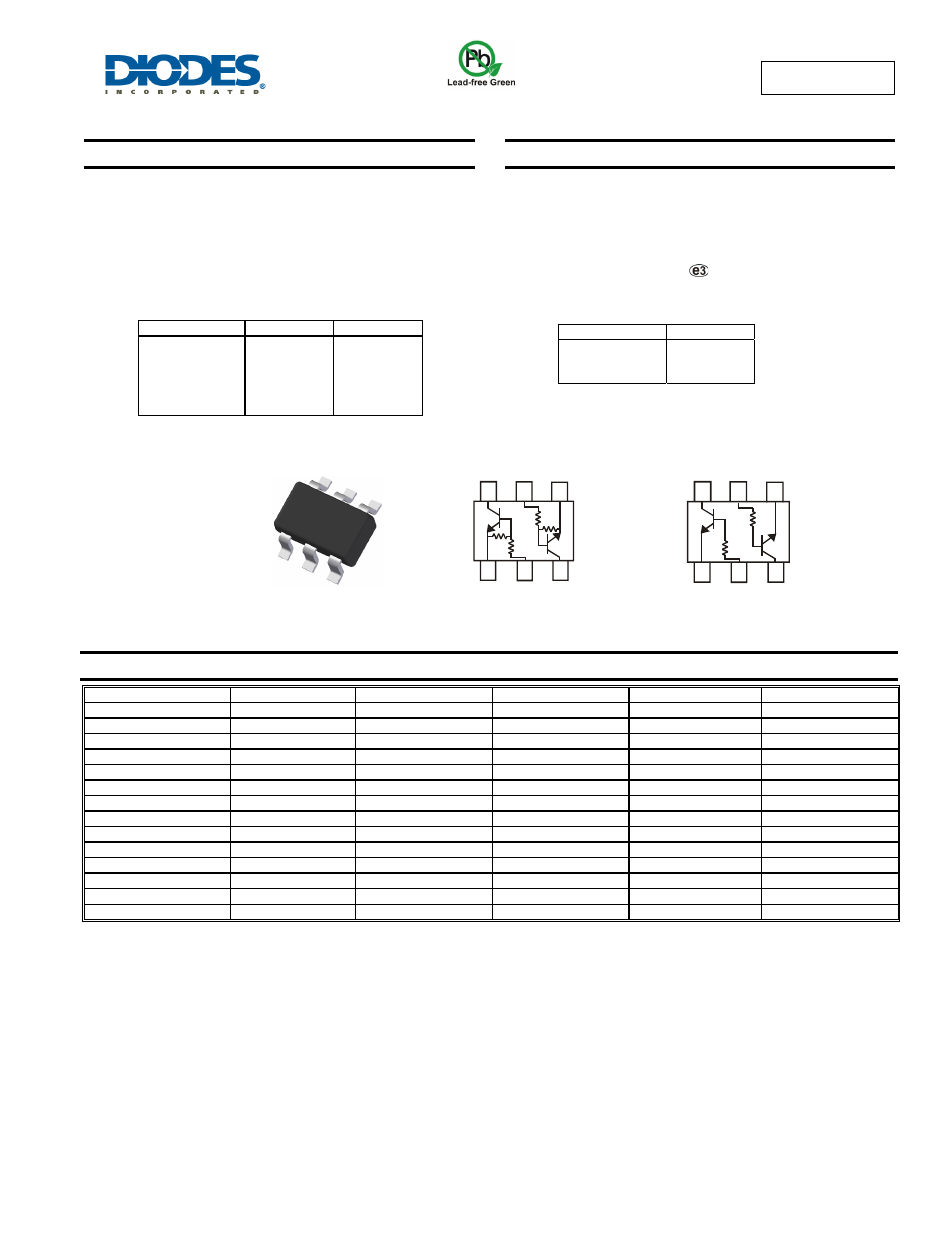

Device Schematic
Top View
SOT363
