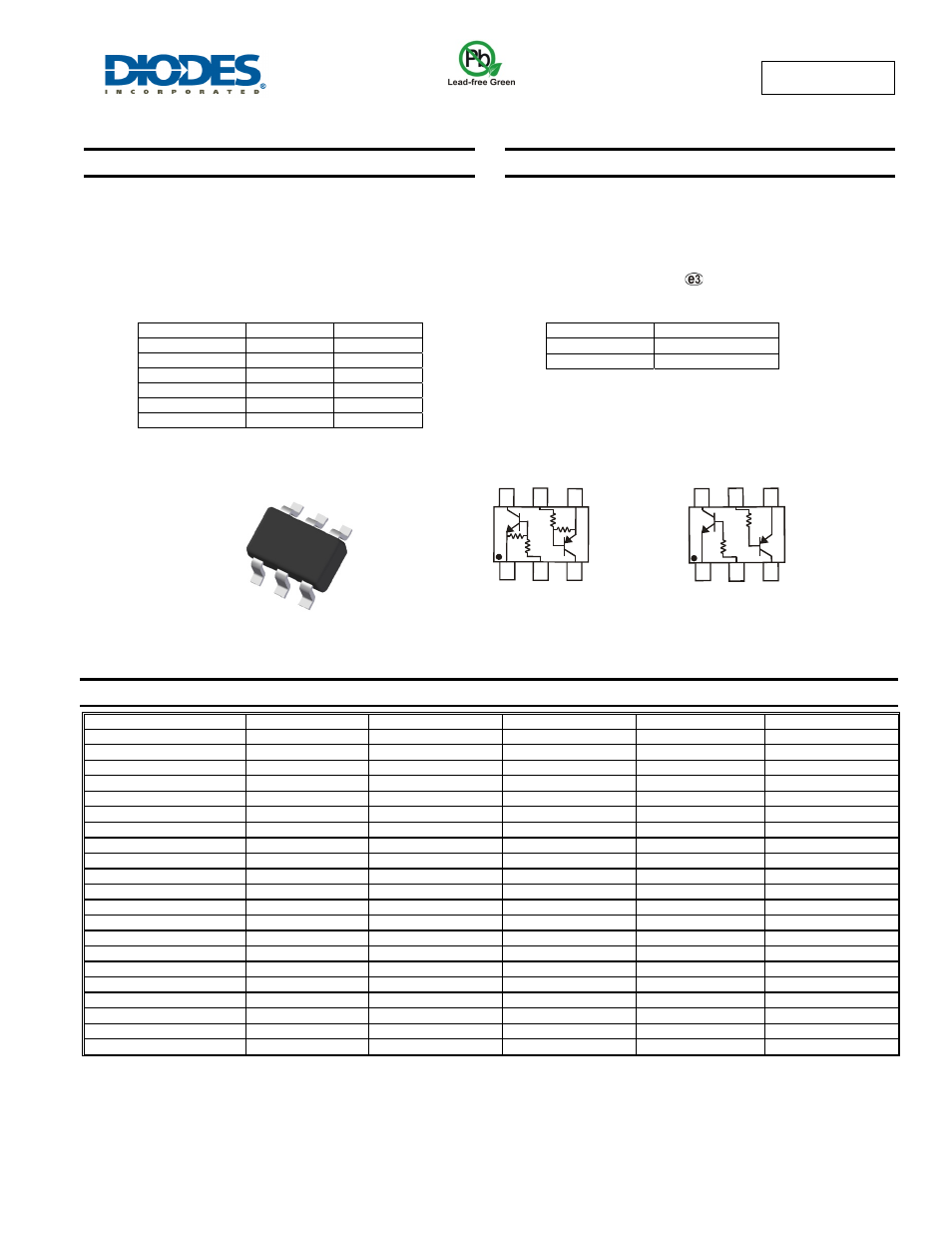

DCX(xxxx)U
SMALL SIGNAL COMPLEMENTARY PRE-BIASED DUAL TRANSISTOR
Features
 Epitaxial Planar Die Construction
 Built-In Biasing Resistors
 Surface Mount Package Suited for Automated Assembly
 Totally Lead-Free & Fully RoHS compliant (Notes 1 &2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
 PPAP Capable (Note 4)
Part Number R1 (NOM) R2 (NOM)
DCX124EU 22KΩ 22KΩ
DCX144EU 47KΩ 47KΩ
DCX114YU 10KΩ 47KΩ
DCX123JU 2.2KΩ 47KΩ
DCX114EU 10KΩ 10KΩ
DCX143EU 4.7KΩ 4.7KΩ
Mechanical Data
 Case: SOT363
 Case Material: Molded Plastic, “Green” Molding Compound
 UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.006 grams (approximate)
Part Number R1 Only
DCX143TU 4.7KΩ
DCX114TU 10KΩ
Ordering Information
(Notes 3 & 4)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
DCX124EU-7-F AEC-Q101 C17 7 8 3,000
DCX124EUQ-7-F Automotive C17 7 8 3,000
DCX124EUQ-13-F Automotive C17 13 8 10,000
DCX124EUQ-13R-F Automotive C17 13 8 10,000
DCX144EU-7-F AEC-Q101 C20 7 8 3,000
DCX144EU-7R-F AEC-Q101 C20 7 8 3,000
DCX144EUQ-7-F Automotive C20 7 8 3,000
DCX114YU-7-F AEC-Q101 C14 7 8 3,000
DCX114YUQ-7-F Automotive C14 7 8 3,000
DCX114YUQ-13-F Automotive C14 13 8 10,000
DCX114YUQ-13R-F Automotive C14 13 8 10,000
DCX123JU-7-F AEC-Q101 C06 7 8 3,000
DCX123JUQ-7-F Automotive C06 7 8 3,000
DCX114EU-7-F AEC-Q101 C13 7 8 3,000
DCX114EU-13R-F AEC-Q101 C13 13 8 10,000
DCX114EUQ-7-F Automotive C13 7 8 3,000
DCX114EUQ-13-F Automotive C13 13 8 10,000
DCX114EUQ-13R-F Automotive C13 13 8 10,000
DCX143TU-7-F AEC-Q101 C07 7 8 3,000
DCX143EU-7-F AEC-Q101 C08 7 8 3,000
DCX114TU-7-F AEC-Q101 C12 7 8 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. -7R and -13R are parts rotated in the pocket tape by +180°. For packaging details, go to our website at http://www.diodes.com/products/packages.html
R1, R2 R1 Only
Device Schematic
Top View
SOT363
R
1
R
1
BQ2
BQ1
CQ1
CQ2
1 2 3
4 5 6
EQ2
EQ1
R
2
R
2
Q2
Q1
R
1
R
1
CQ1
Q1
Q2
1 2 3
4 5 6
BQ2
BQ1 CQ2
EQ2
EQ1
