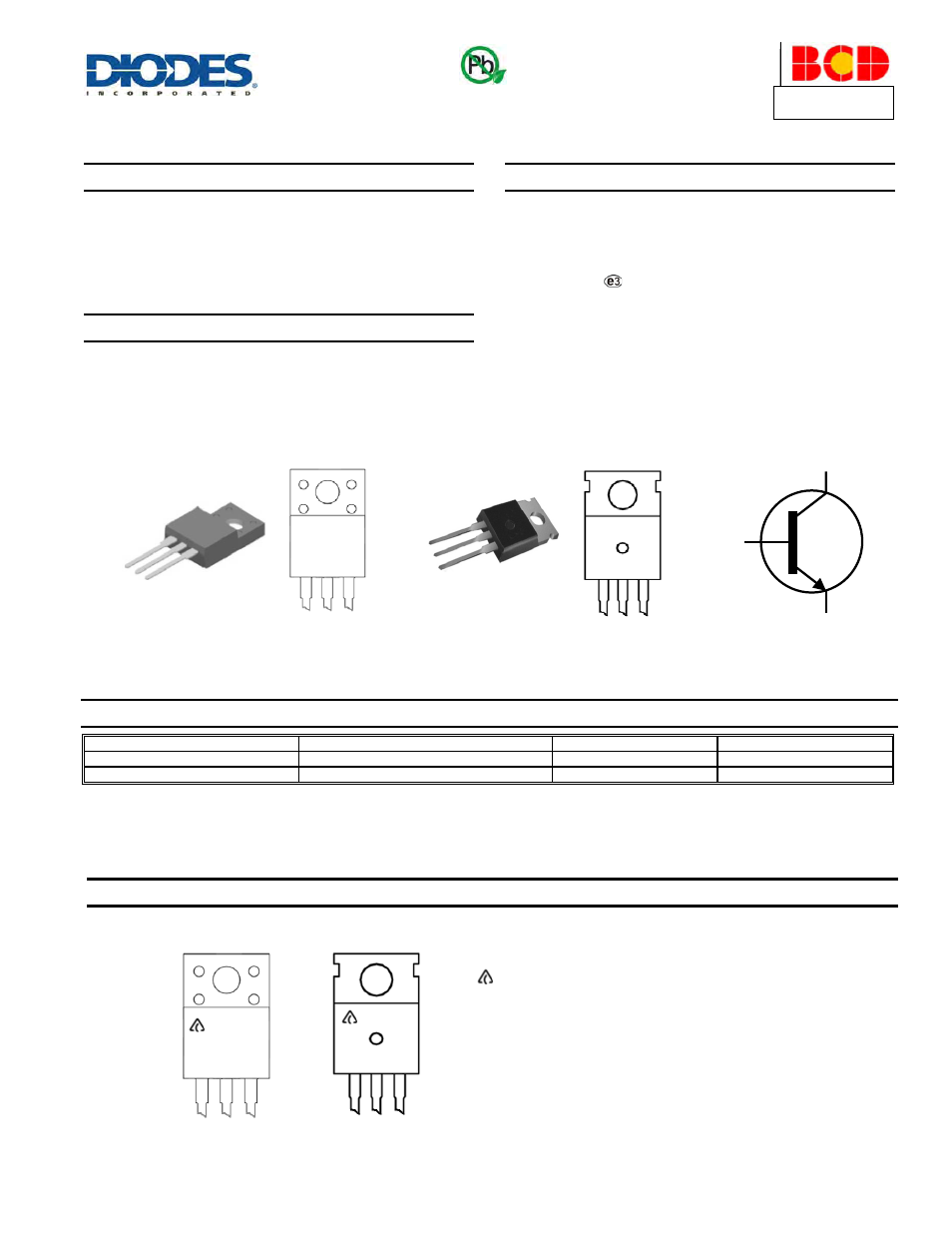

APT13005
450V NPN HIGH VOLTAGE POWER TRANSISTOR
Features
BV
CEO
> 450V
BV
CES
> 700V
BV
EBO
> 9V
I
C
= 4A high Collector Current
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Applications
Low power AC-DC SMPS for:
Battery Chargers for Mobile Phone / Tablets / Smartphones
Power Supply for DVD / STB
LED
lighting
Mechanical Data
Case: TO220F-3, TO220AB Type C
Case Material: Molded Plastic, "Green" Molding Compound; UL
Flammability Classification Rating 94V-0
Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208
Weight: TO220F-3: 1500mg (Approximate)
TO220AB Type C : 2000mg (Approximate)
Ordering Information
(Note 4)
Product Package
Marking
Quantity
APT13005TF-G1
TO220F-3
APT13005TF-G1
1,000 per Box in Tubes
APT13005T-G1
TO220AB Type C (TO220-3(2))
APT13005T-G1
1,000 per Box in Tubes
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Device Schematic
C
E
B
= Manufacturers’ code marking
For TO220F-3, APT13005TF-G1 = Product Type Marking ID
For TO220AB Type C, APT13005T-G1 = Product Type Marking ID
YWW = Date Code Marking
e.g. 312 = Year 2013, Week 12.
8 = Assembly site code
XX = Batch Number
Green
E
C
B
Front Face View
Pin-Out
TO220F-3
Isolated
TO220AB Type C
(TO220-3(2))
Non-isolated
E
C
B
Front Face View
Pin-Out
TO220F-3
TO220AB Type C
APT13005
APT13005
T-G1
YWW8XX
T-G1
YWW8XX
