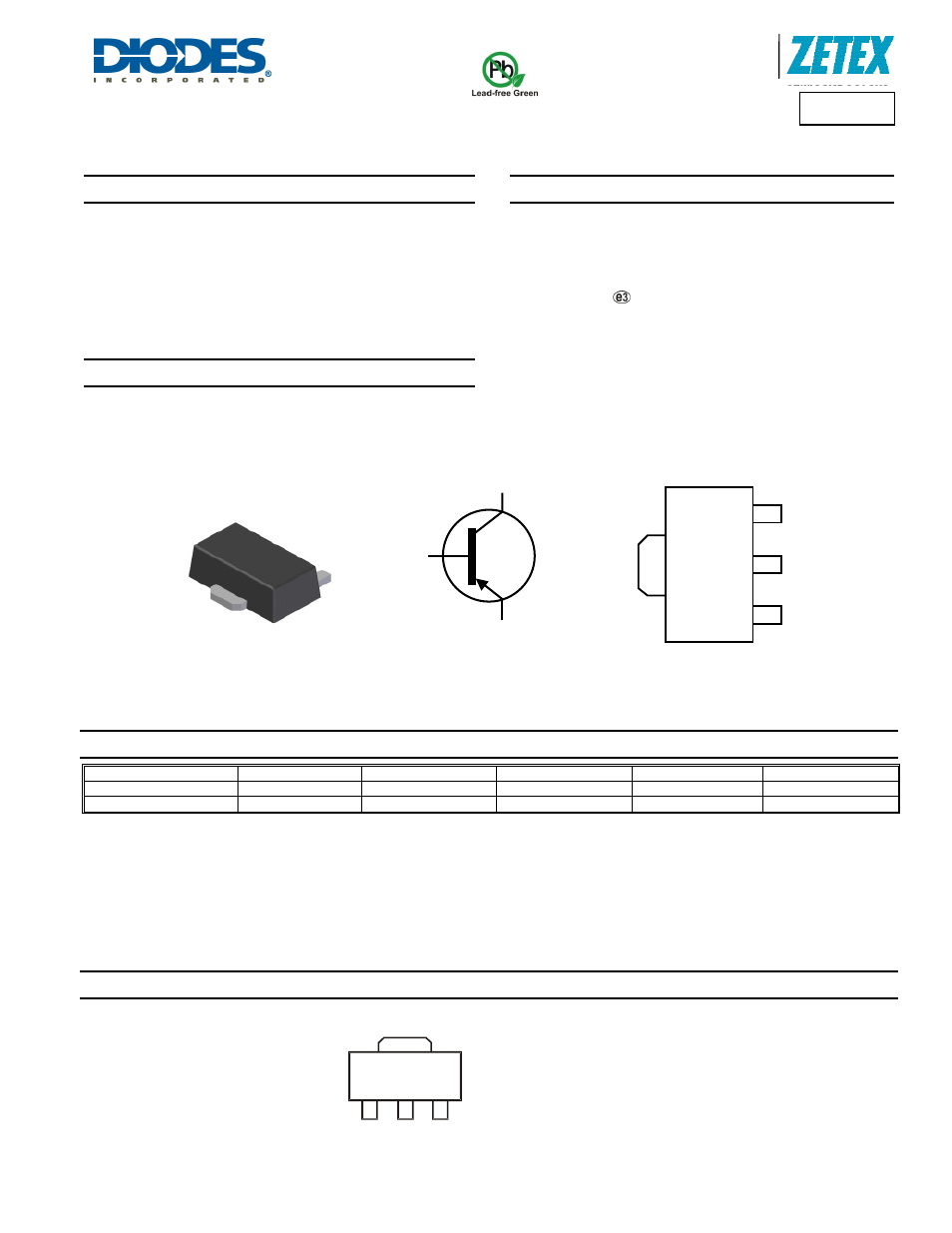

BSR33
Da
tasheet Number: DS33017 Rev. 5 - 2
1 of 7
November 2013
© Diodes Incorporated
BSR33
A Product Line of
Diodes Incorporated
80V PNP MEDIUM POWER TRANSISTOR IN SOT89
Features
BV
CEO
> -80V
I
C
= -1A High Continuous Current
Low saturation voltage V
CE(sat)
< -250mV @ -150mA
Complementary type BSR43
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Application
Load management functions
Solenoid, relay and actuator drivers
DC – DC modules
Mechanical Data
Case:
SOT89
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish, Solderable per MIL-STD-202,
Method 208
Weight: 0.052 grams (Approximate)
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
BSR33TA
AEC-Q101 BR4
7
12
1,000
BSR33QTA
Automotive BR4
7
12
1,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q10x qualified and are PPAP capable. Automotive, AEC-Q10x and standard products are electrically and thermally
the same, except where specified. For more information, please refer to
Marking Information
Top View
SOT89
Device Symbol
Top View
Pin-Out
BR4 = Product Type Marking Code
C
E
C
B
BR4
C
E
B
