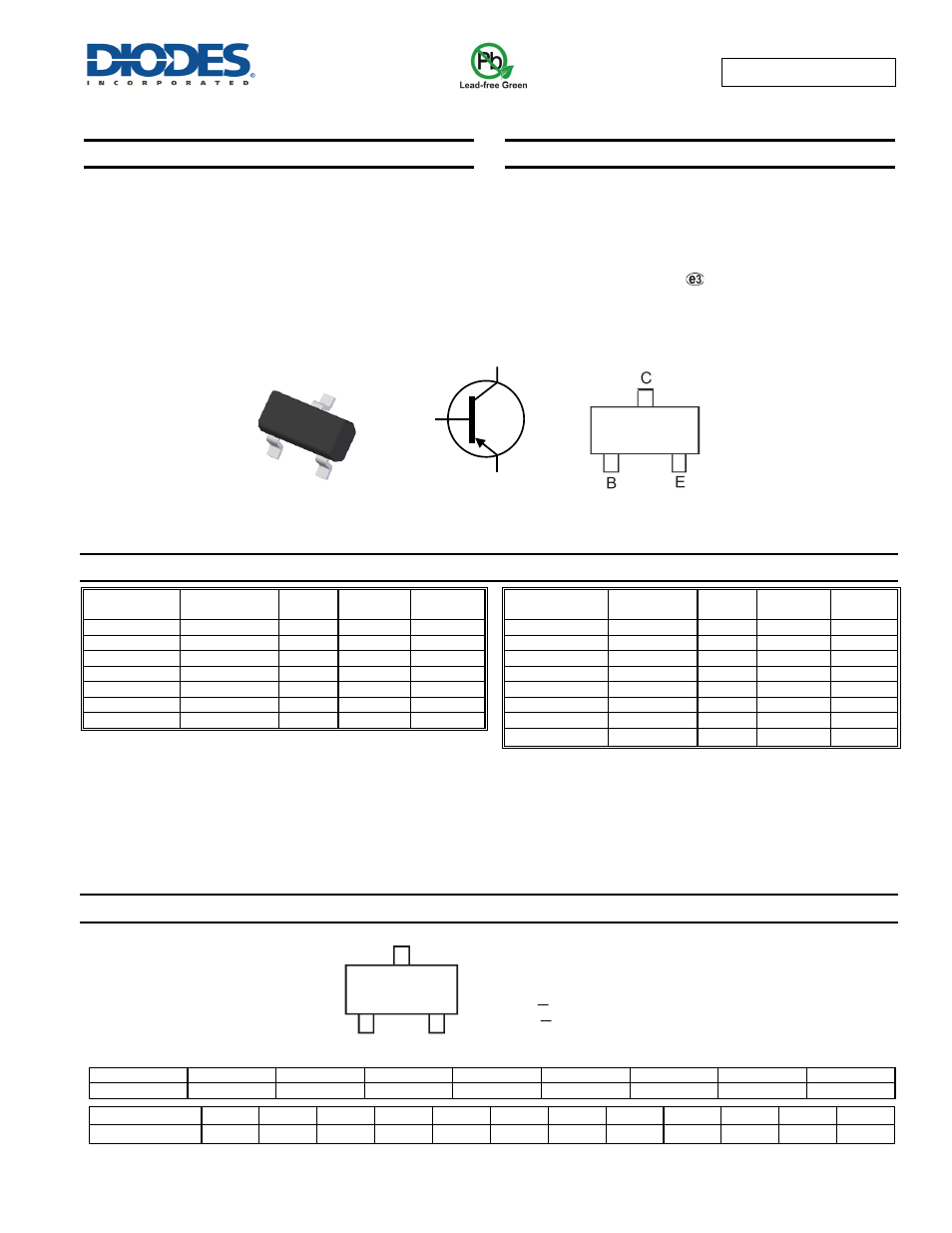

BC856A – BC858C
Document Number: DS11207 Rev. 23 - 2
1 of 7
www.diodes.com
December 2013
© Diodes Incorporated
BC856A-BC858C
PNP SMALL SIGNAL TRANSISTOR IN SOT23
Features
 Ideally Suited for Automatic Insertion
 Complementary NPN Types: BC846 – BC848
 For switching and AF Amplifier Applications
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. "Green" Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
 PPAP capable (Note 4)
Mechanical Data
 Case: SOT23
 Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.008 grams (Approximate)
Ordering Information
(Notes 4 & 5)
Product Compliance Marking
Reel Size
(inches)
Quantity
per Reel
Product Compliance Marking
Reel Size
(inches)
Quantity
per Reel
BC856A-7-F AEC-Q101 K3A 7 3,000 BC857B-7-F AEC-Q101 K3B 7 3,000
BC856AQ-7-F Automotive K3A 7 3,000 BC857BQ-7-F Automotive K3B 7 3,000
BC856B-7-F AEC-Q101 K3B 7 3,000 BC857B-13-F AEC-Q101 K3B 13 10,000
BC856BQ-7-F Automotive K3B 7 3,000 BC857C-7-F AEC-Q101 K3G 7 3,000
BC856B-13-F AEC-Q101 K3B 13 10,000 BC857C-13-F AEC-Q101 K3G 13 10,000
BC856BQ-13-F Automotive K3B 13 10,000 BC858A-7-F AEC-Q101 K3A 7 3,000
BC857A-7-F AEC-Q101 K3A 7 3,000 BC858B-7-F AEC-Q101 K3B 7 3,000
BC858C-7-F AEC-Q101 K3G 7 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green"
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. Tape width is 8mm. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
Date Code Key
Year 2010 2011 2012 2013 2014 2015 2016 2017
Code X Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
C
E
B
Top View
SOT23
Device Symbol Top View
Pin-Out
xxx
YM
xxx = Product Type Marking Code
(Please see Ordering Information)
YM = Date Code Marking
Y or Y = Year (ex: A = 2013)
M or M = Month (ex: 9 = September)
