BC856AW – BC858CW
Document Number: DS30251 Rev. 10 - 2
1 of 5
www.diodes.com
November 2013
© Diodes Incorporated

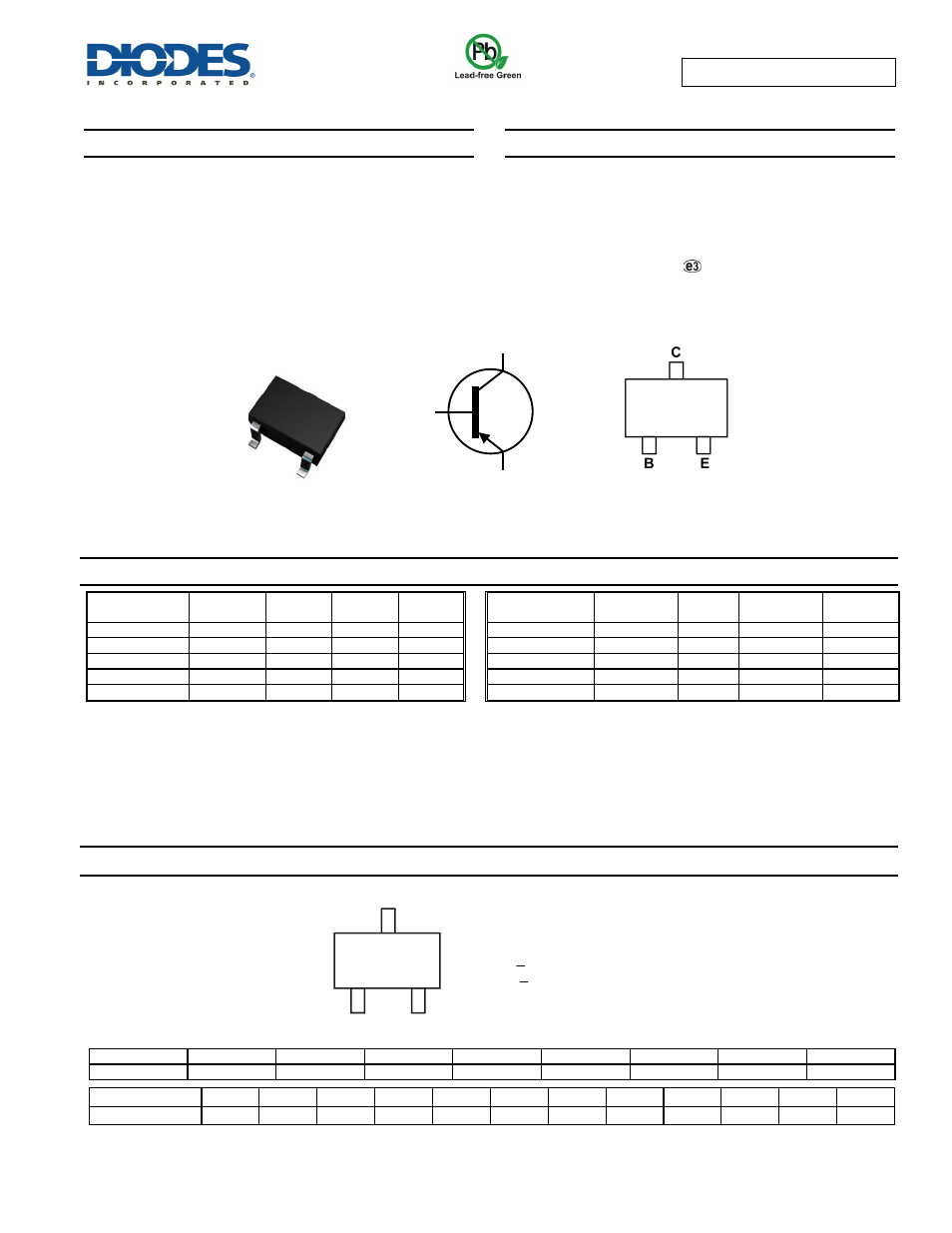

BC856AW-BC858CW
PNP SMALL SIGNAL TRANSISTOR IN SOT323
Features
 Ideally Suited for Automatic Insertion
 Complementary NPN Types Available (BC846AW – BC848CW)
 For switching and AF Amplifier Applications
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. "Green" Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
 PPAP capable (Note 4)
Mechanical Data
 Case: SOT323
 Case material: molded plastic, “Green” molding compound
 UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.006 grams (Approximate)
Ordering Information
(Notes 4 & 5)
Product Compliance Marking
Reel Size
(inches)
Quantity
per Reel
Product Compliance Marking
Reel Size
(inches)
Quantity
per Reel
BC856AW-7-F AEC-Q101 K3A 7 3,000 BC857BWQ-13-F Automotive K3B 13 10,000
BC856BW-7-F AEC-Q101 K3B 7 3,000 BC857CW-7-F AEC-Q101 K3G 7 3,000
BC856BW-13-F AEC-Q101 K3B 13 10,000 BC858AW-7-F AEC-Q101 K3A 7 3,000
BC857AW-7-F AEC-Q101 K3A 7 3,000 BC858BW-7-F AEC-Q101 K3B 7 3,000
BC857BW-7-F AEC-Q101 K3B 7 3,000 BC858CW-7-F AEC-Q101 K3G 7 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. Tape width is 8mm. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
Date Code Key
Year 2010 2011 2012 2013 2014 2015 2016 2017
Code X Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
SOT323
Device Symbol
Top View
Pin-Out
C
E
B
xxx
YM
xxx = Product Type Marking Code (See Ordering Information)
YM = Date Code Marking
Y or Y = Year (ex: A = 2013)
M or M = Month (ex: 9 = September)
