2DB1188P/Q/R
Document number: DS31144 Rev. 7 - 2
1 of 7
www.diodes.com
February 2013
© Diodes Incorporated
2DB1188P/Q/R
32V PNP MEDIUM POWER TRANSISTOR IN SOT89
Features
 BV
CEO
> -32V
 I
C
= -2A high Continuous Current
 Low saturation voltage V
CE(sat)
< 800mV @ 2A
 Complementary NPN Type: 2DD1766
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT89
 Case material: Molded Plastic, "Green" Molding Compound.
 UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.052 grams (approximate)
Ordering Information
(Note 4)
Part Number Marking Reel size (inches) Tape width (mm) Quantity per reel
2DB1188P-13 P23P 13 12 2,500
2DB1188Q-13 P23Q 13 12 2,500
2DB1188Q-13R P23Q 13 12 4,000
2DB1188R-13 P23R 13 12 2,500
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green"
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
P23x = Product Type Marking Code
Where P23P = 2DB1188P
P23Q = 2DB1188Q
P23R = 2DB1188R
= Manufacturers’ code marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 1 = 2011)
WW = Week Code (01 – 53)

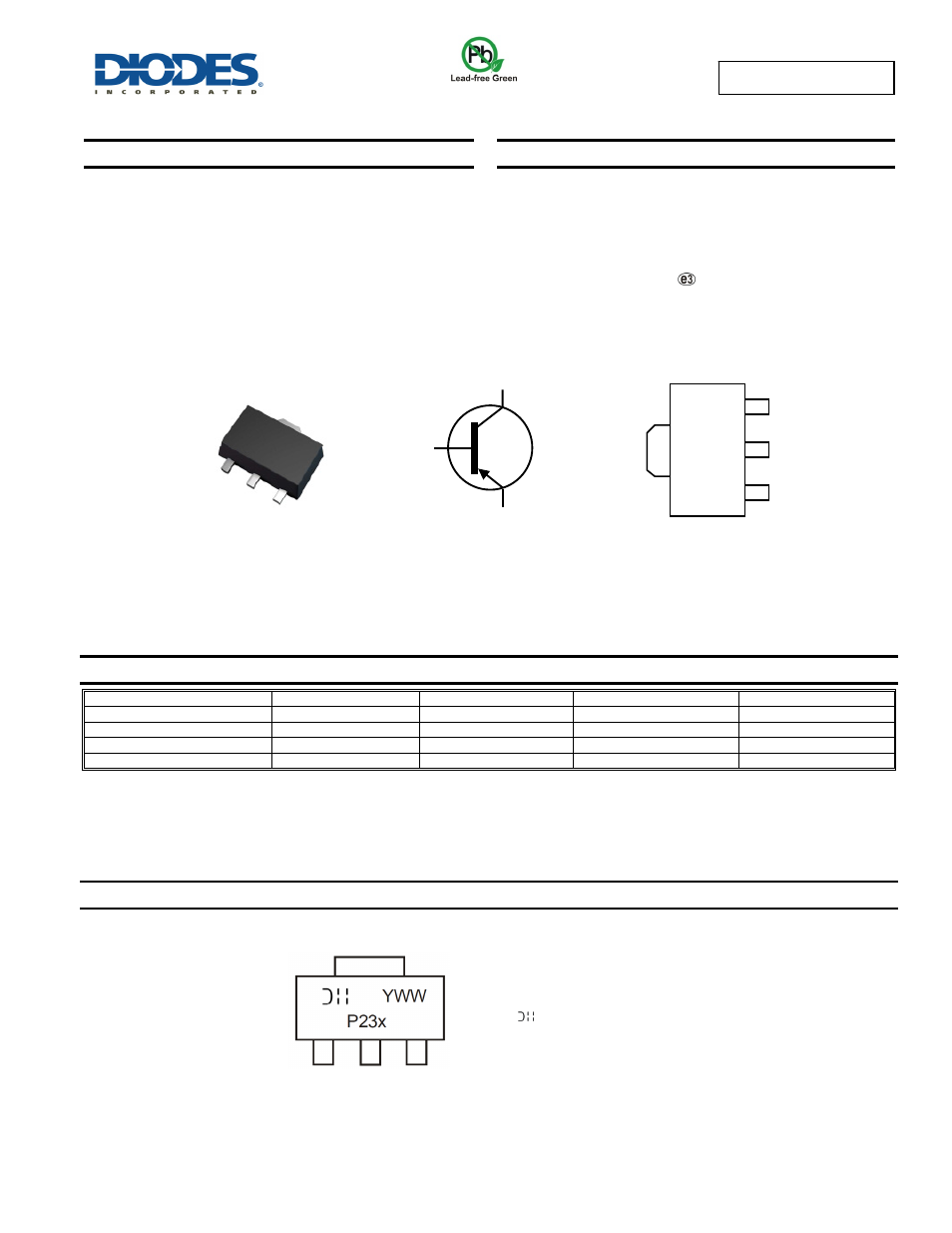

Top View Device Symbol Pin Out – Top View
SOT89
C
E
B
C
E
C
B
