2DB1184Q
Document number: DS31504 Rev. 5 - 2
5 of 6
www.diodes.com
May 2014
© Diodes Incorporated
2DB1184Q

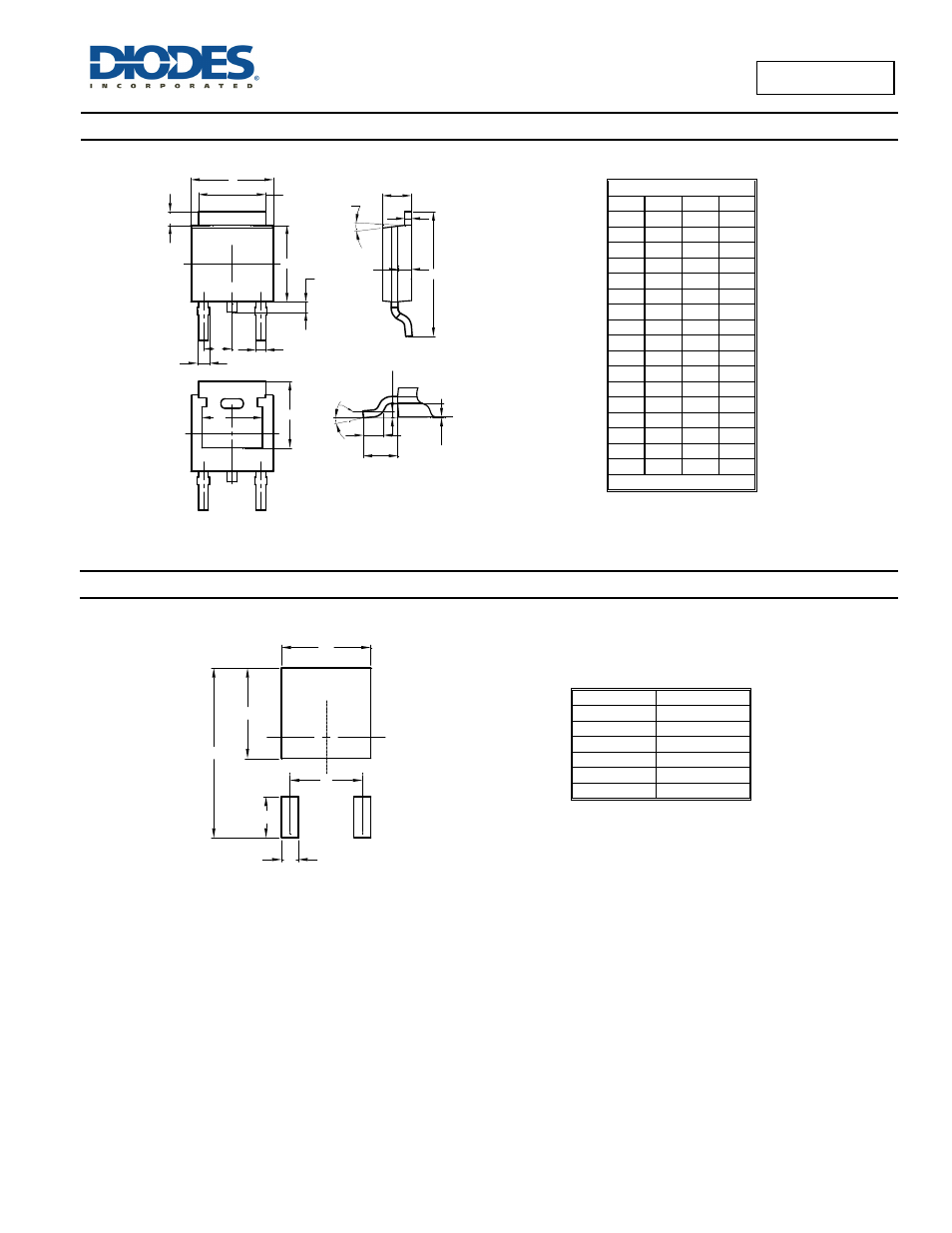

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
TO252 (DPAK)
Dim Min Max Typ
A 2.19 2.39 2.29
A1 0.00 0.13 0.08
A2 0.97 1.17 1.07
b 0.64 0.88 0.783
b2 0.76 1.14 0.95
b3 5.21 5.46 5.33
c2 0.45 0.58 0.531
D 6.00 6.20 6.10
D1 5.21 - -
e - - 2.286
E 6.45 6.70 6.58
E1 4.32 - -
H 9.40 10.41 9.91
L 1.40 1.78 1.59
L3 0.88 1.27 1.08
L4 0.64 1.02 0.83
a 0° 10° -
All Dimensions in mm
Dimensions Value (in mm)
C 4.572
X 1.060
X1 5.632
Y 2.600
Y1 5.700
Y2 10.700
b 3
E
L 3
D
L 4
b 2 ︵2 x ︶
b ︵3 x ︶ e
c 2
A
7 ° ± 1 °
H
S e a t i n g P l a n e
A
1
G a u g e P l a n e
a
0 . 5
0
8
L
2 . 7 4 R E F
D 1
A 2
E 1
X 1
X
Y 2
Y 1
Y
C
