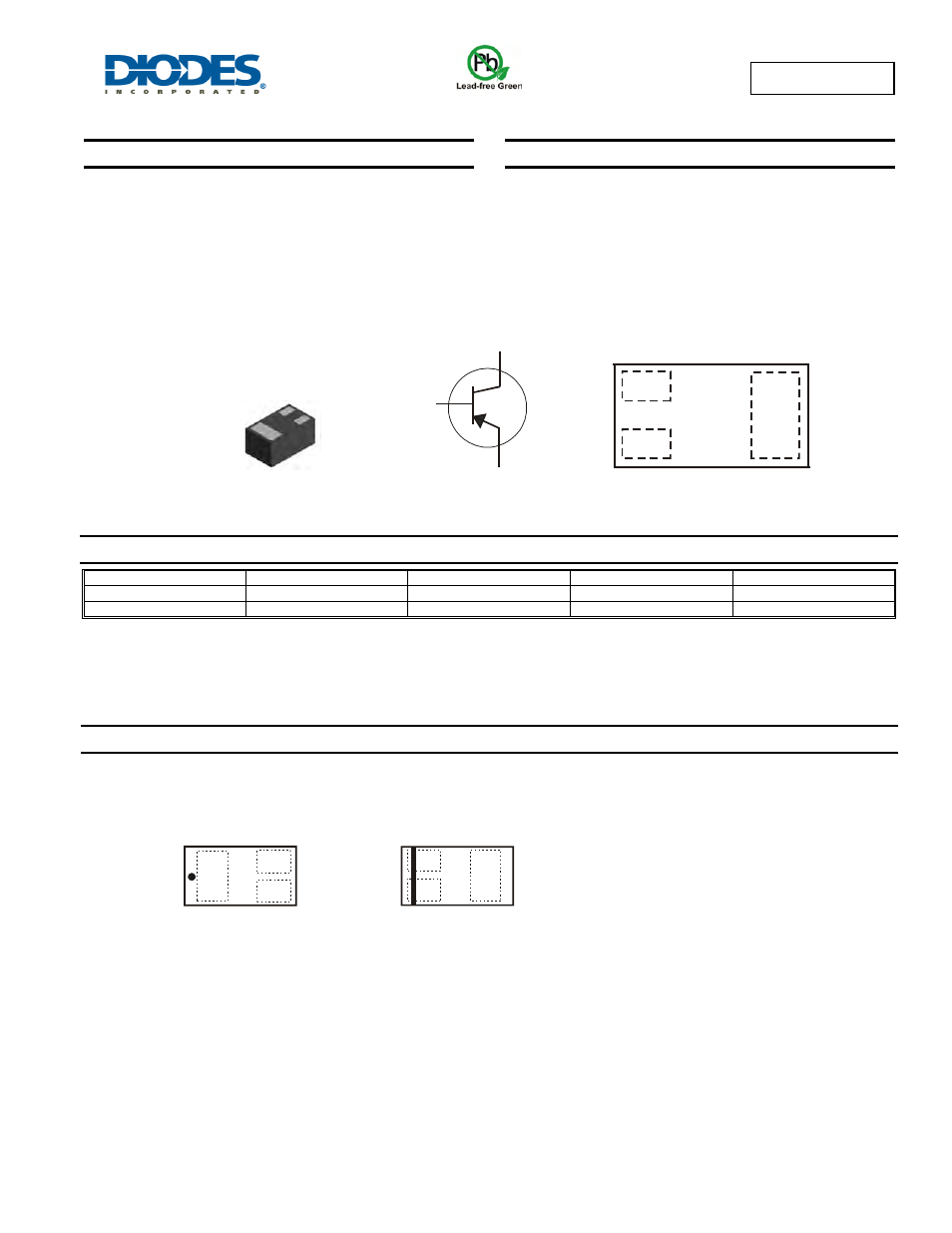

2DA1774QLP
40V PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features
•
Ultra-Small Leadless Surface Mount Package
•
Complementary NPN Type Available (2DC4617QLP)
•
“Lead Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free, "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
DFN1006-3
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminals:
Finish
⎯ NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.0008 grams (approximate)
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
2DA1774QLP-7 8A
7
8
3,000
2DA1774QLP-7B 8A
7
8
10,000
Notes:
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our w
3. For packaging details, go to our website at
Marking Information
Bottom View
Top View
Device Schematic
8A = Product Type Marking Code
8A
DFN1006-3
Device Symbol
C
E
B
C
E
B
8A
Top View
Dot Denotes Collector Side
2DA1774QLP-7
Top View
Bar Denotes Base and Emitter Side
2DA1774QLP-7B
