1N5819HW
Document number: DS30217 Rev. 15 - 2
3 of 4
www.diodes.com
February 2010
© Diodes Incorporated
1N5819HW
Ordering Information
(Note 5)
Part Number Case Packaging
1N5819HW-7-F SOD-123 3000/Tape & Reel
Notes: 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Date Code Key
Year 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012
Code N P R S T U V W X Y Z
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

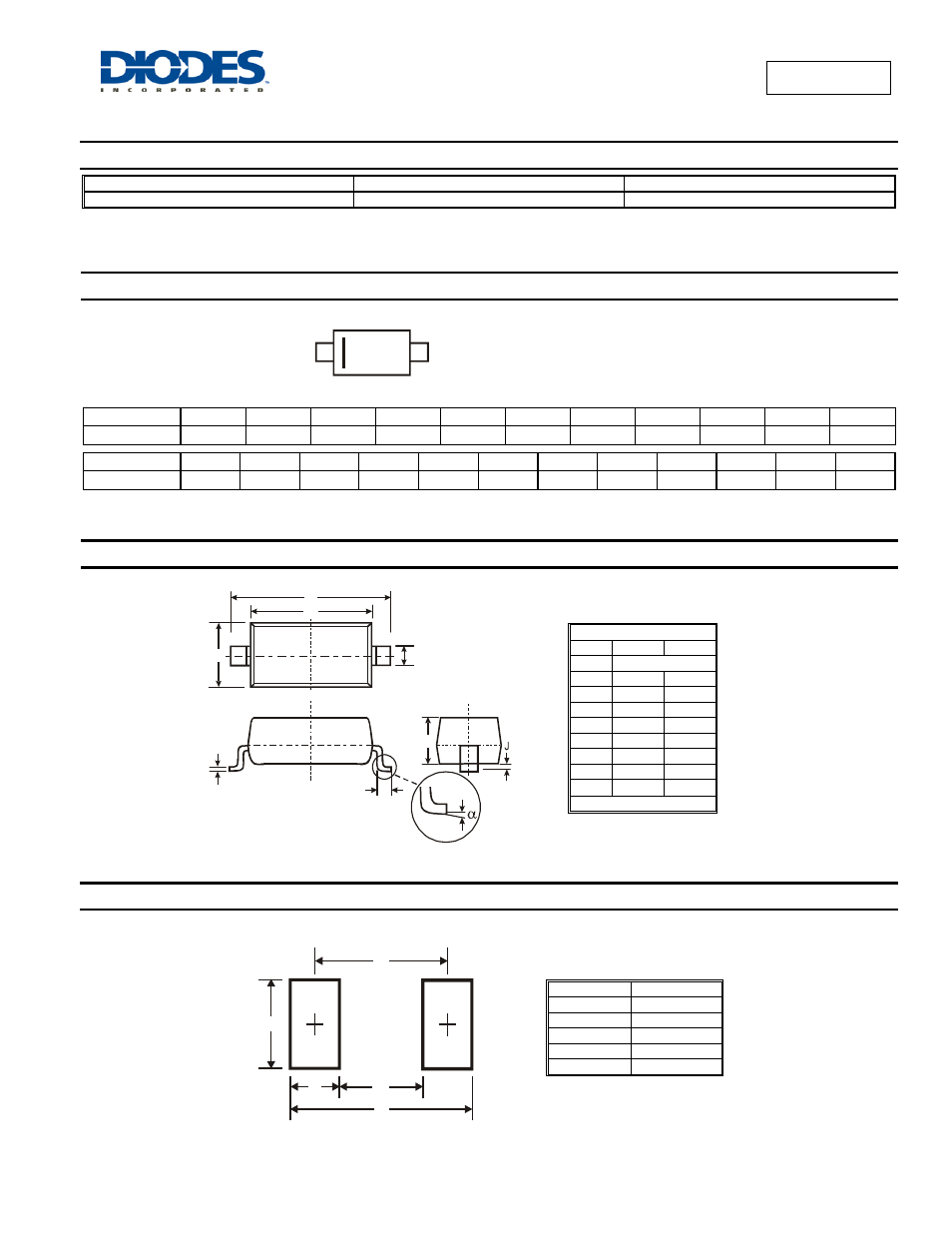

Package Outline Dimensions
Suggested Pad Layout
SOD-123
Dim Min Max
A 0.55 Typ
B 1.40 1.70
C 3.55 3.85
H 2.55 2.85
J 0.00 0.10
K 1.00 1.35
L 0.25 0.40
M 0.10 0.15
α 0 8°
All Dimensions in mm
Dimensions Value (in mm)
Z 4.9
G 2.5
X 0.7
Y 1.2
C 3.7
SL = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
Z
X
C
G Y
SL
YM
K
L
M
C
H
B A
