BZX84C2V4W - BZX84C39W
200mW SURFACE MOUNT ZENER DIODE
Features
•
Planar Die Construction
•
200mW Power Dissipation
•
Zener Voltages from 2.4V – 39V
•
Ultra-Small Surface Mount Package
•
Lead Free/RoHS Compliant (Note 4)
•
"Green" Device (Notes 1 and 2)
Mechanical Data
•
Case: SOT-323
•
Case Material: Molded Plastic, "Green" Molding Compound,
Note 2. UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminals: Solderable per MIL-STD-202, Method 208
•
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
•
Polarity: See Diagram
•
Marking Information: See Page 3
•
Ordering Information: See Page 3
•
Weight: 0.006 grams (approximate)

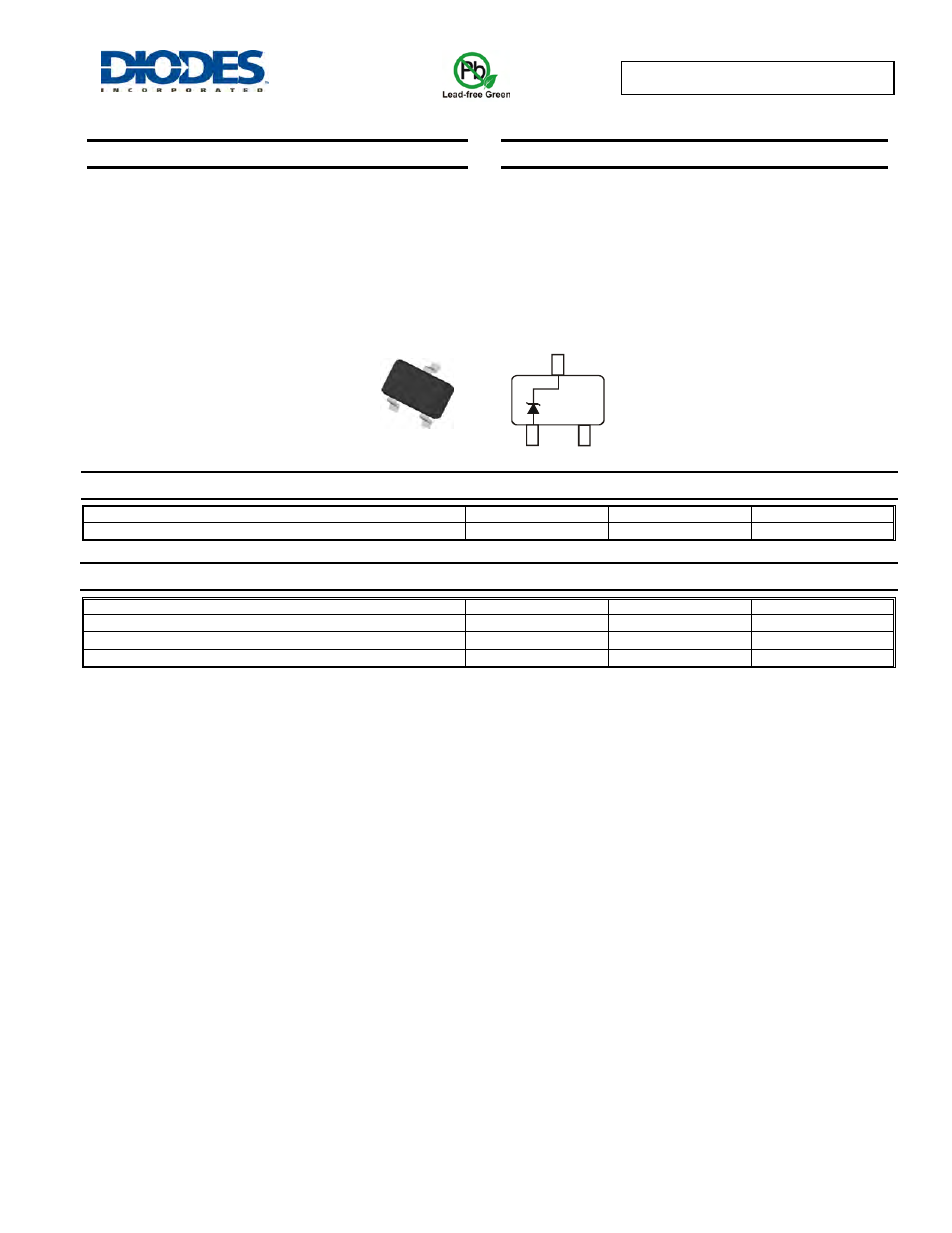

Top View
Device Schematic
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Symbol
Value
Unit
Forward Voltage @ I
F =
10mA
V
F
0.9
V
Thermal Characteristics
Characteristic
Symbol
Value
Unit
Power Dissipation (Note 3)
P
D
200
mW
Thermal Resistance, Junction to Ambient Air (Note 3)
R
θJA
625
K/W
Operating and Storage Temperature Range
T
J
, T
STG
-65 to +125
°C
Notes:
1. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com./products/lead_free/index.php.
2. Product manufactured with Date Code 0627 (week 27, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
3. Mounted on FR4 PC board with recommended pad layout which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
4. No purposefully added lead.
BZX84C2V4W - BZX84C39W
Document number: DS30066 Rev. 15 - 2
1 of 4
www.diodes.com
May 2008
