BAV99DW
Document number: DS30145 Rev. 15 - 2
1 of 4
www.diodes.com
November 2012
© Diodes Incorporated
BAV99DW
SURFACE MOUNT SWITCHING DIODE ARRAY
Features
•
Fast Switching Speed
• Small Surface Mount Package
•
For General Purpose Switching Applications
• High
Conductance
•
Two “BAV99” Circuits In One Package
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT363
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
• Polarity: See Diagram
•
Weight: 0.006 grams (approximate)
Ordering Information
(Note 5)
Part Number Case Packaging
BAV99DW-7-F SOT363 3000/Tape & Reel
BAV99DW-13-F SOT363 10000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
5. For packaging details, go to our website at http://www.diodes.com.
Marking Information
Date Code Key
Year 2001 2002 2003 2004 … 2012 2013 2014 2015 2016 2017 2018
Code M N P R … Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

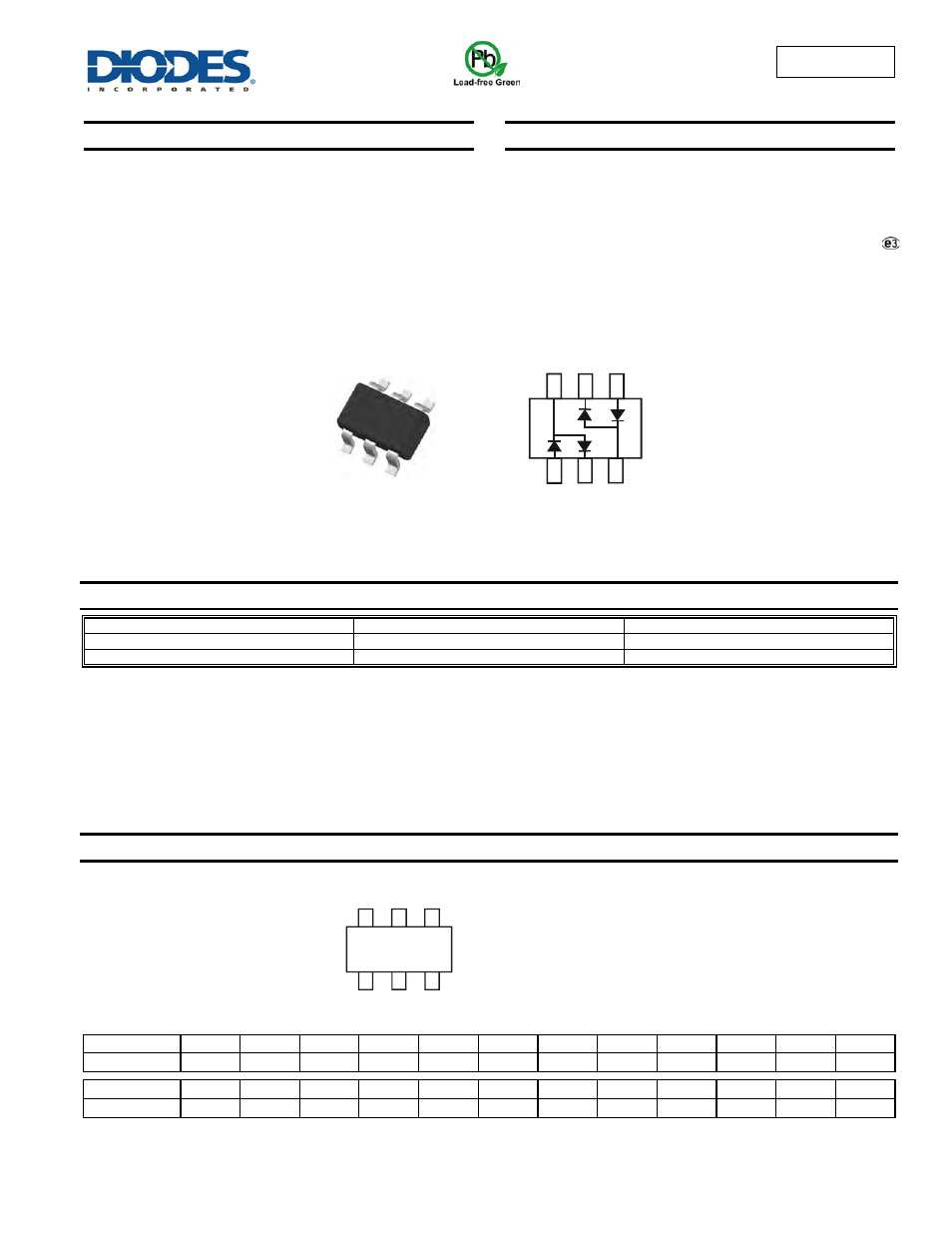

Top View
SOT363
Top View
Internal Schematic
AC
1
AC
2
C
2
A
1
A
2
C
1
KJG = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
KJG YMKJG
YM
