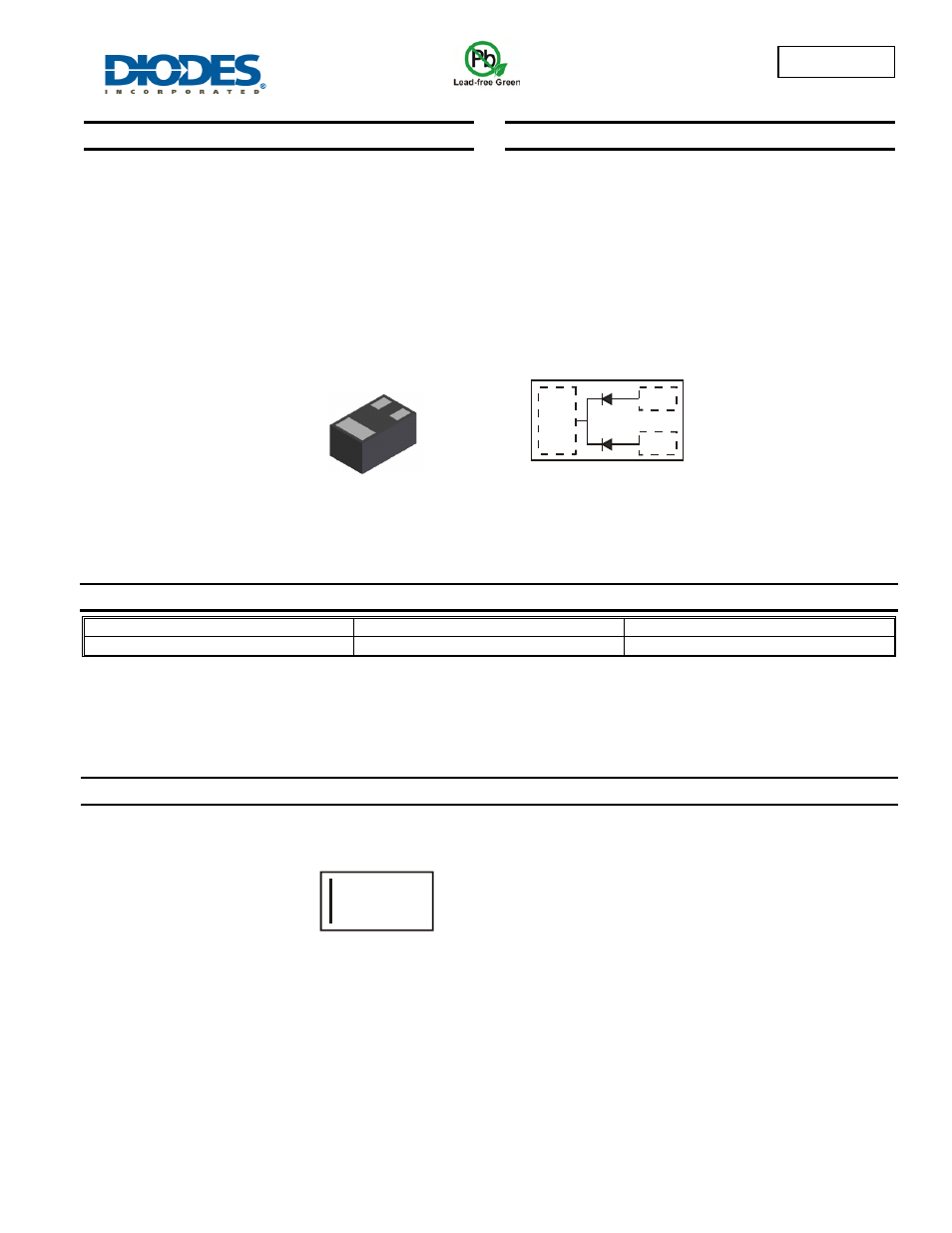

BAV70LP
NEW PROD
UC
T
DUAL SURFACE MOUNT SWITCHING DIODE
Features
•
Fast Switching Speed
•
Ultra-Small Leadless Surface Mount Package (1.0 * 0.6mm)
•
Ultra-Low Profile Package (0.5mm)
•
Low Forward Voltage
•
Fast Reverse Recovery
• Low
Capacitance
•
Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
Mechanical Data
• Case:
X1-DFN1006-3
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: Cathode Bar
• Terminals:
Finish
⎯ NiPdAu over Copper Leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.0009 grams
Ordering Information
(Note 3)
Part Number
Case
Packaging
BAV70LP-7
X1-DFN1006-3
3,000/Tape & Reel
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc.’s “Green” policy can be found on our w
3. For packaging details, go to our website at
Marking Information
Bottom View
X1-DFN1006-3
Top View
Internal Schematic
JA = Product Type Marking Code
Bar Denotes Cathode Side
JA
