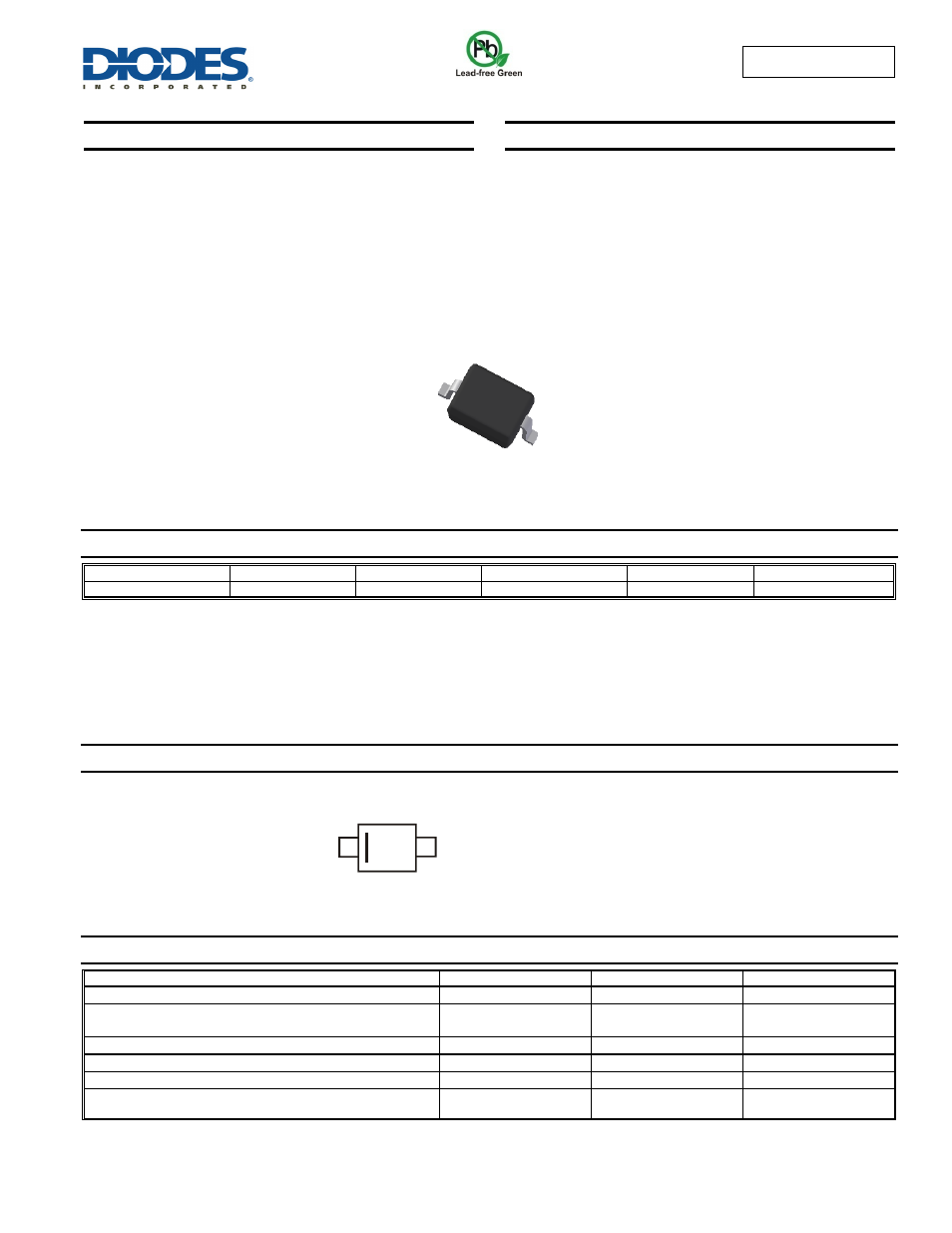

BAV5004WS
Document number: DS30733 Rev. 3 - 2
1 of 4
www.diodes.com
August 2013
© Diodes Incorporated
BAV5004WS
HIGH VOLTAGE SWITCHING DIODE
Features
 Fast Switching Speed: 50ns Maximum
 400V High Reverse Breakdown Voltage Rating
 Low Capacitance: 2.5pF Maximum
 Surface Mount Package Ideally Suited for Automated Insertion
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOD323
 Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Matte Tin Finish Annealed Over Alloy 42 Leadframe.
Lead Free Plating. Solderable per MIL-STD-202, Method 208
 Weight: 0.005 grams (approximate)
Ordering Information
(Note 4)
Product Compliance Marking Reel Size (inches) Tape Width (mm) Quantity per Reel
BAV5004WS-7 AEC-Q101 LY 7 8 3,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Repetitive Peak Reverse Voltage V
RRM
400 V
Working Peak Reverse Voltage
DC Blocking Voltage V
RWM
V
R
350 V
RMS Reverse Voltage V
R(RMS)
247 V
Forward Continuous Current (Note 5) I
FM
300 mA
Peak Repetitive Forward Current (Note 5) I
FRM
625 mA
Non-Repetitive Peak Forward Surge Current @ t = 1.0μs
@ t = 1.0ms
I
FSM
5.0
3.0
A
Top View
LY = Product Type Marking Code
Line Denotes Cathode Side
SOD323
LY
