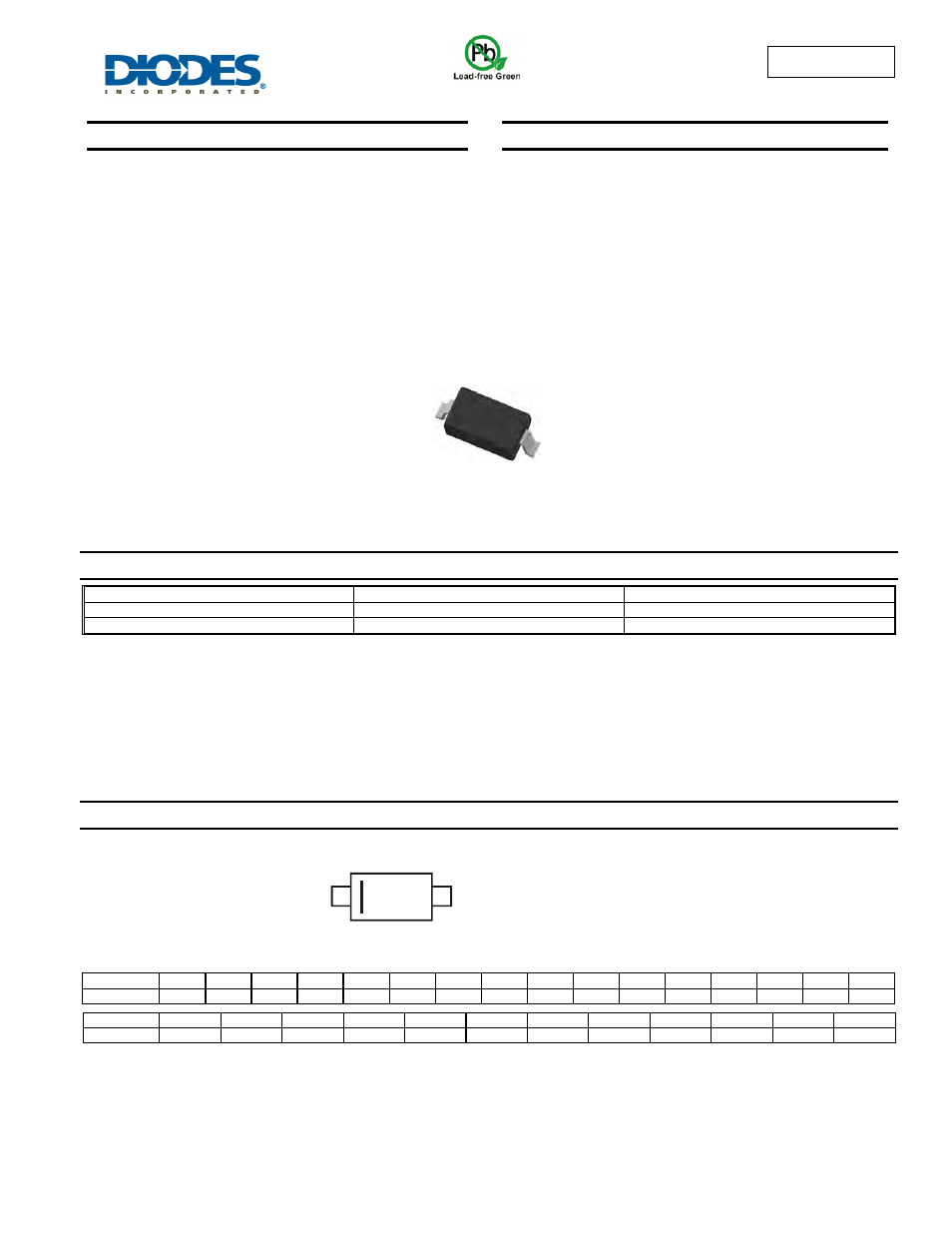

BAV3004W
Document number: DS30371 Rev. 12 - 2
1 of 4
May 2012
© Diodes Incorporated
BAV3004W
SURFACE MOUNT HIGH VOLTAGE LOW LEAKAGE DIODE
Features
• Low
Leakage
Current:
≤ 100nA
•
Fast Switching Speed:
≤ 50ns
•
High Reverse Breakdown Voltage:
≥ 350V
•
Ideal for Battery Powered Portable Applications or Automated
Insertion
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOD123
•
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Solderable per MIL-STD-202, Method 208; Lead
Free plating (Matte Tin Finish annealed over Alloy 42
leadframe)
•
Polarity: Cathode Band
•
Weight: 0.01 grams (approximate)
Ordering Information
(Note 5)
Part Number
Case
Packaging
BAV3004W-7-F
SOD123
3,000/Tape & Reel
BAV3004WQ-7-F
SOD123
3,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
5. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2002
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
Code
N
P
R
S
T
U
V
W
X
Y
Z
A
B
C
D
E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
SOD123
4P = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)
4P
YM
