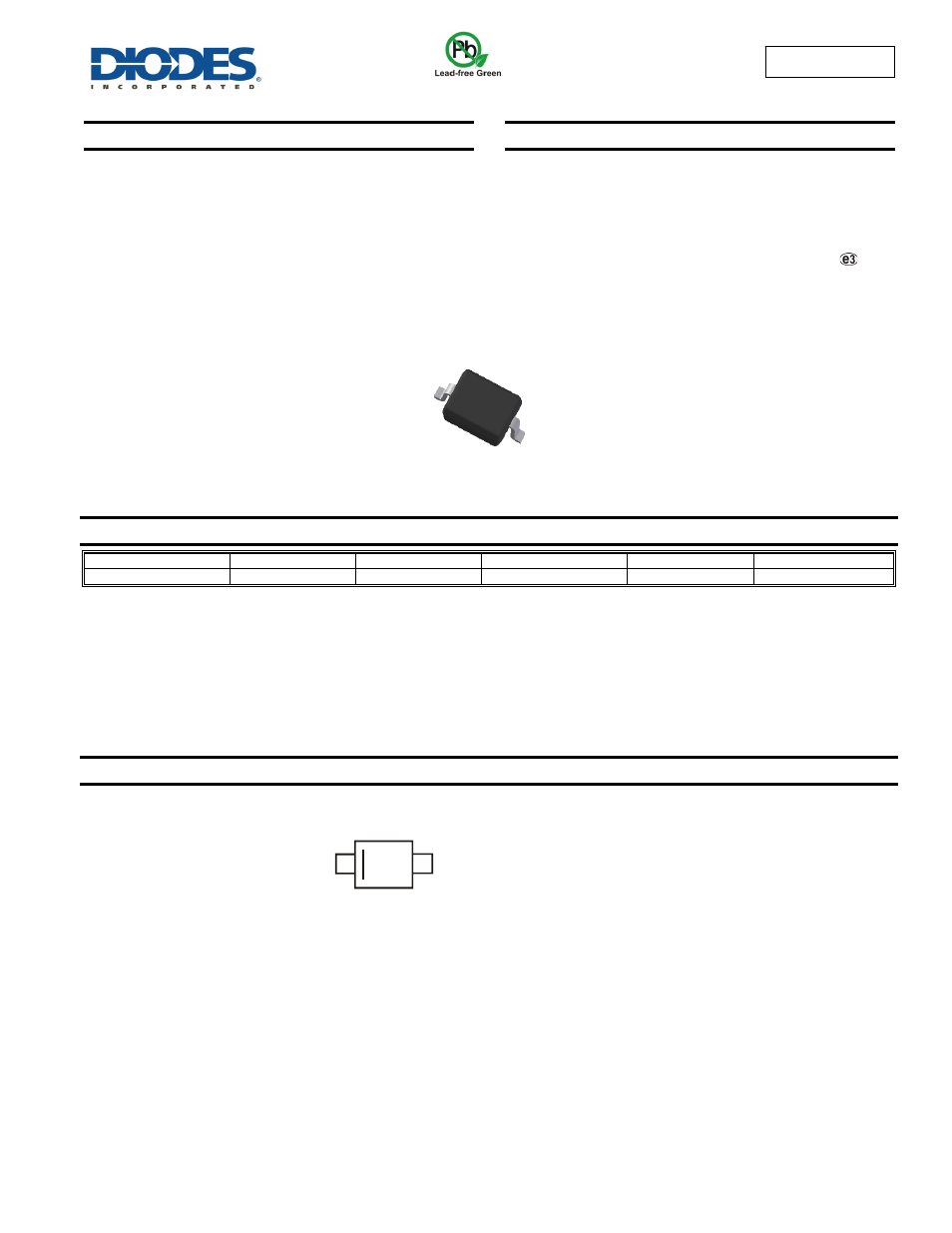

BAV116WS
Document number: DS35981 Rev. 2 - 2
1 of 4
www.diodes.com
September 2013
© Diodes Incorporated
BAV116WS
SURFACE MOUNT LOW LEAKAGE DIODE
Features
Fast Switching Speed
Ultra Low Leakage Current (5nA @ V
R
= 75V)
Low
Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case:
SOD323
Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Bar
Terminals: Finish – Matte Tin Finish annealed over Alloy 42
leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.004 grams (approximate)
Ordering Information
(Note 4)
Product
Compliance Marking
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
BAV116WS-7
Standard
TW
7
8
3,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Top View
SOD323
TW = Product Type Marking Code
Bar Denotes Cathode Side
TW
