BAV116W

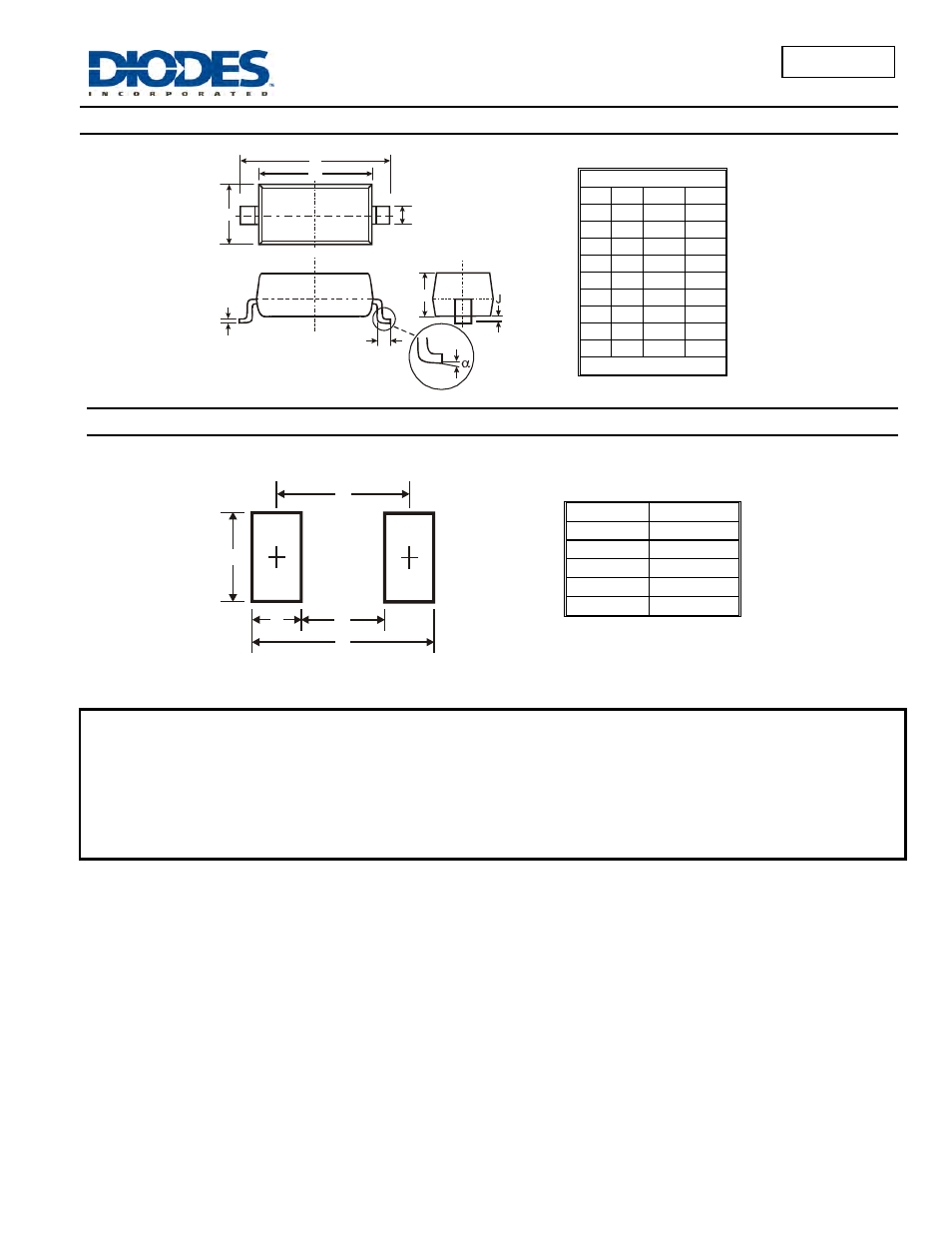

Package Outline Dimensions
BAV116W
Document number: DS30291 Rev. 11 - 2
3 of 3
www.diodes.com
June 2008
© Diodes Incorporated
Suggested Pad Layout
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
D
G
H
A
B
C
E
SOD-123
Dim Min
Max Typ
A
3.55
3.85 3.65
B
2.55
2.85 2.65
C
1.40
1.70 1.55
D
1.00
1.35 1.05
E
⎯
⎯
0.55
G 0.25
0.40 0.30
H
0.10
0.15 0.11
J
⎯
0.10 0.05
α
0 8°
⎯
All Dimensions in mm
Z
X
C
G
Y
Dimensions
Value (in mm)
Z
4.9
G
2.5
X
0.7
Y
1.2
C
3.7
