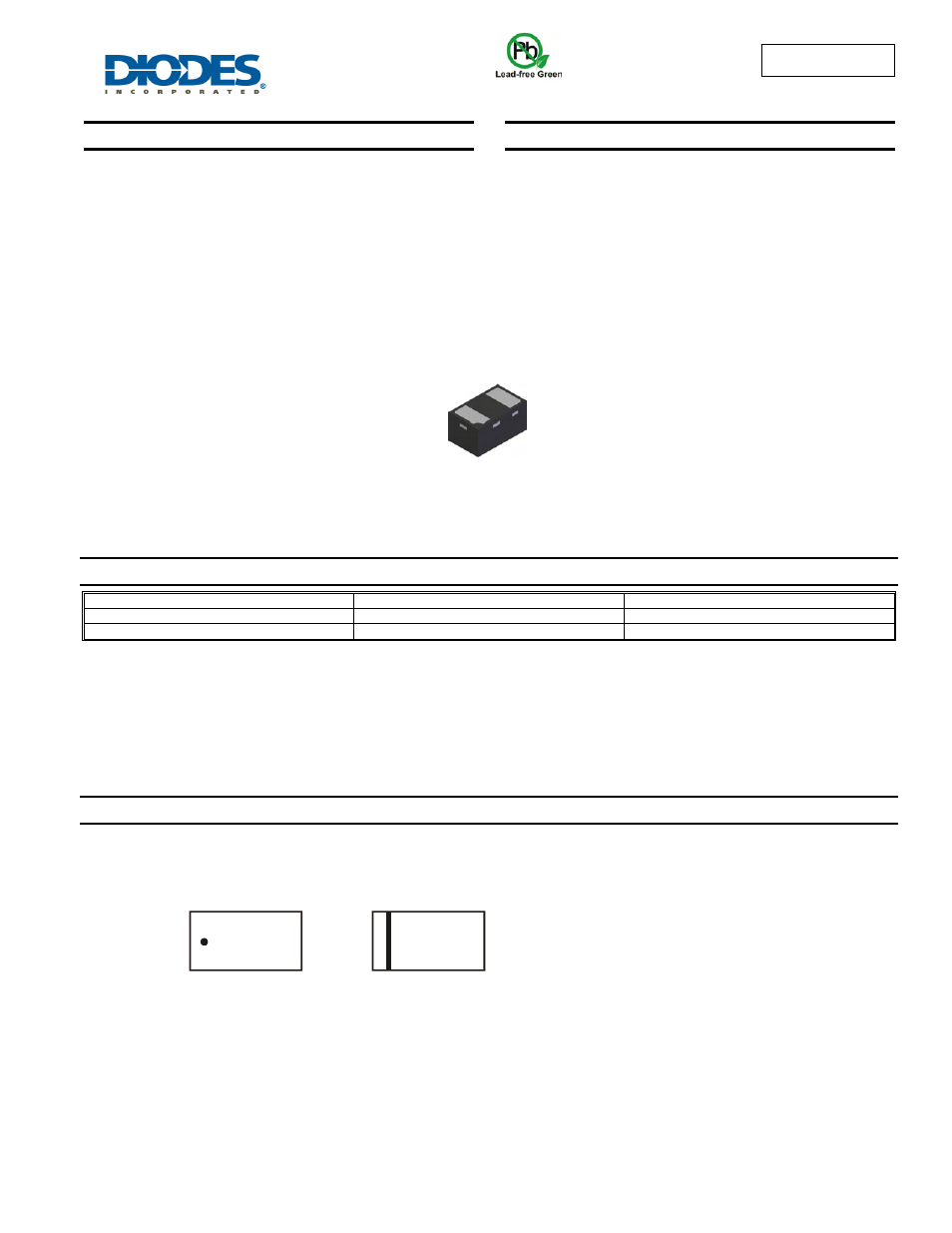

1N4448HLP
SURFACE MOUNT FAST SWITCHING DIODE
Features
•
Fast Switching Speed
•
Ultra-Small Surface Mount Package
•
Low Reverse Leakage Current
•
Ideal for Battery Powered Portable Applications
•
Lead Free by Design/RoHS Compliant (Note 1)
•
Halogen and Antimony Free "Green" Device (Notes 2 & 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
X1-DFN1006-2
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminal
Connections:
See Marking Information
•
Terminals: Finish - NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
1N4448HLP-7
X1-DFN1006-2
3,000/Tape & Reel
1N4448HLP-7B
X1-DFN1006-2
10,000/Tape & Reel
Notes:
1. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. No purposely added lead.
2. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
3. Diodes Inc.'s "Green" policy can be found on our w
Marking Information
Bottom View
X1-DFN1006-2
T8 = Product Type Marking Code
1N4448HLP-7
1N4448HLP-7B
Top View
Bar Denotes
Cathode Side
Top View
Dot Denotes
Cathode Side
T8
T8
