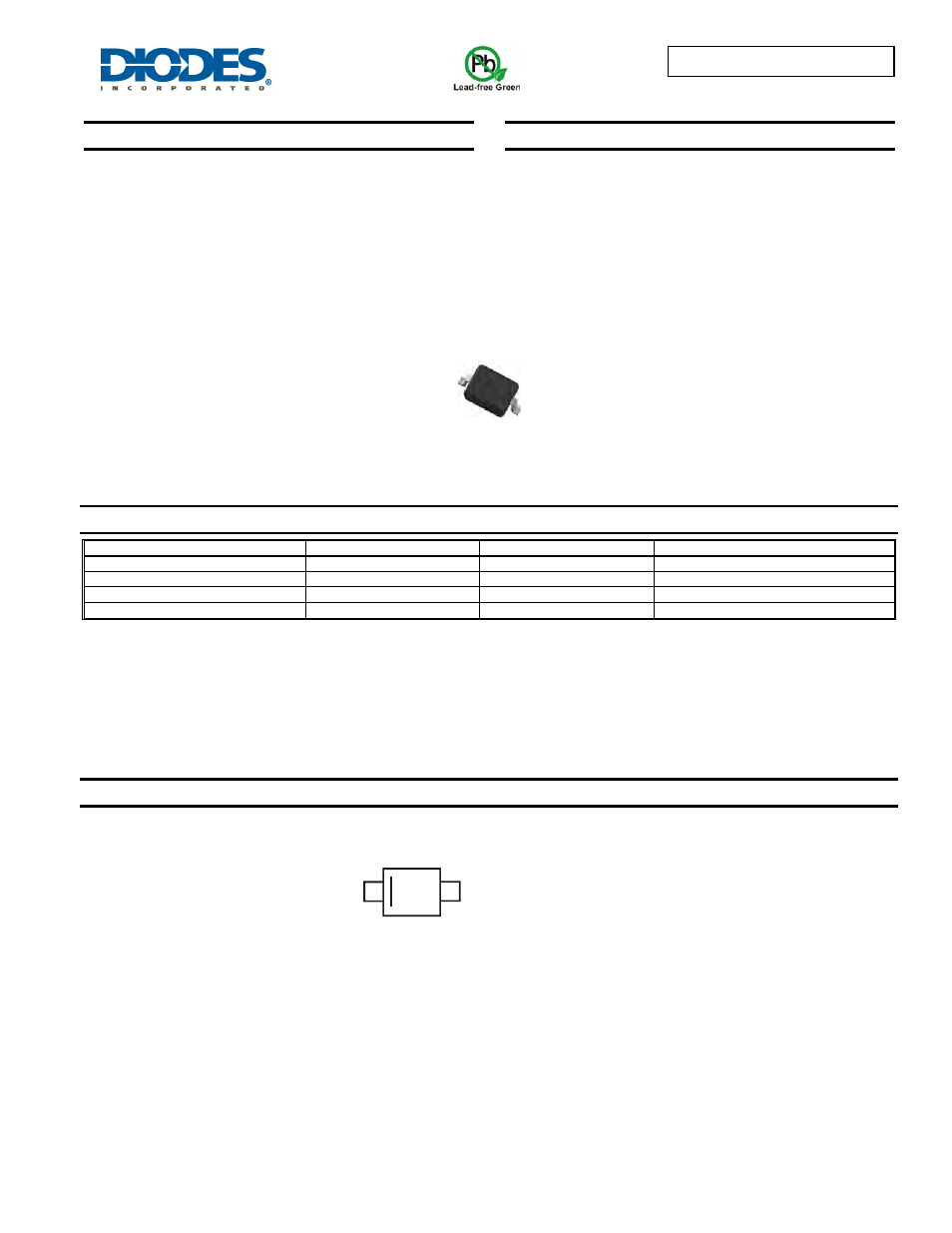

1N4148WS / BAV16WS
SURFACE MOUNT FAST SWITCHING DIODE
Features
•
Fast Switching Speed
•
Small Surface Mount Package
•
For General Purpose Switching Applications
•
Lead Free by Design/RoHS Compliant (Note 1)
•
Halogen and Antimony Free "Green" Device (Notes 2 & 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOD323
•
Case Material: Molded Plastic, “Green” Molding Compound
(Notes 2 & 3). UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Polarity: Cathode Band
•
Weight: 0.006 grams (approximate)
Ordering Information
(Notes 4 & 5)
Part Number
Qualification Case
Packaging
1N4148WS-7-F
Commercial
SOD323
3,000/Tape & Reel
1N4148WSQ-7-F
Automotive
SOD323
3,000/Tape & Reel
1N4148WS-13-F
Commercial
SOD323
10,000/Tape & Reel
BAV16WS-7-F
Commercial
SOD323
3,000/Tape & Reel
Notes:
1. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. No purposely added lead.
2. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
3. Diodes Inc.'s "Green" policy can be found on our w
Code OW are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
5. For packaging details, go to our website at
Marking Information
Top View
SOD323
XX = Product Type Marking Code, T4 or T6
