BYP57 / BYP58
35A Silicon Power Rectifier Diode
Part no.
Description
The BYP57/58 are plastic sealed 35A- diodes,
which are available in different reverse voltage
classes up to 800V.
The diodes can be delivered with limited forward
voltage and reverse current differences for
parallel connecting in rectifier stacks and back-
off-diodes
Features
•
Forward current 35A
•
Reverse voltage 75V – 800V
•
Hermetic press-fit package
•
Available in different modifications of the
package
Applications
•
Power supplies
•
Rectifier diode in car generators
•
Rectifier bridges/stacks
•
Back-off-diodes

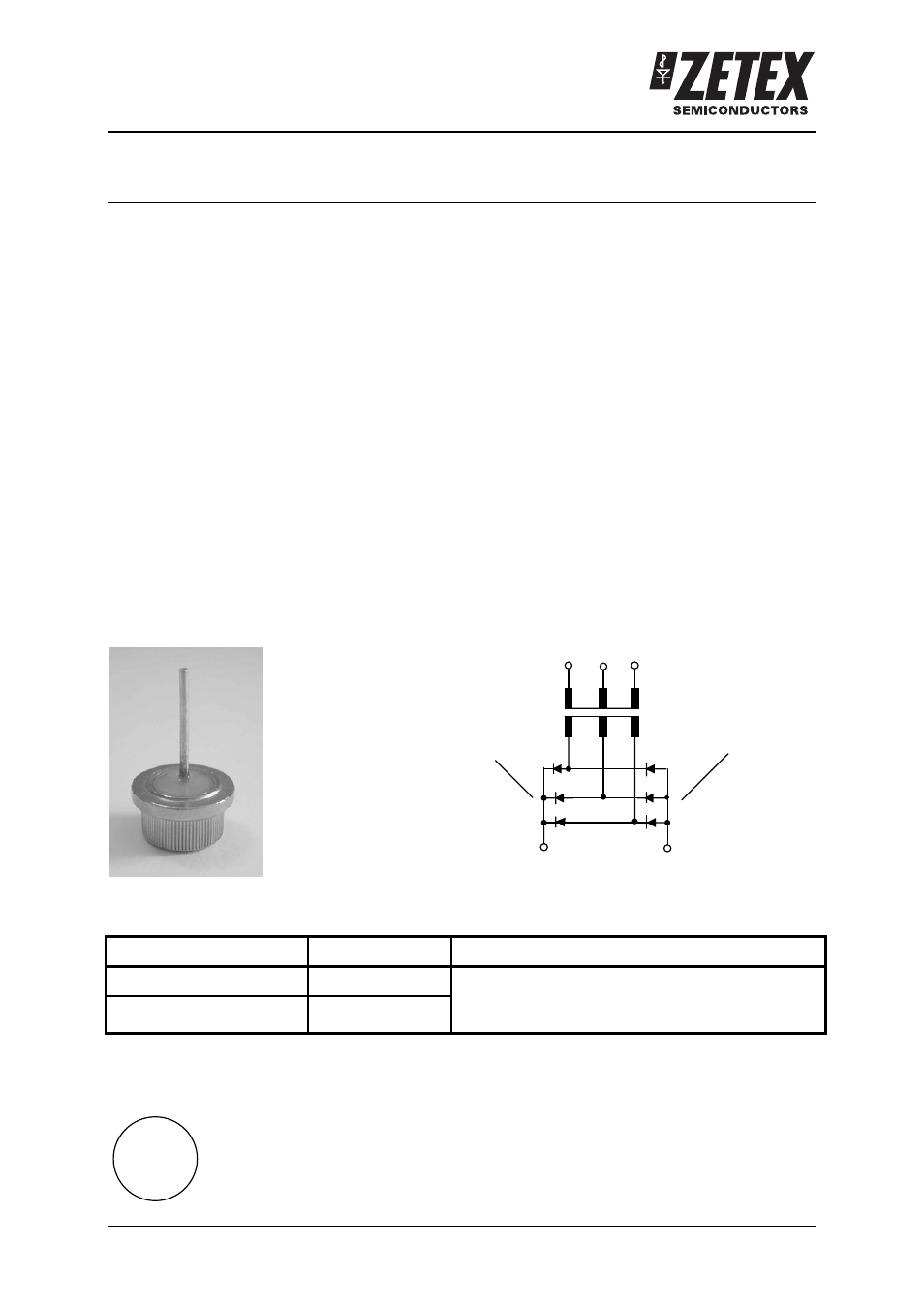

Pinout details
Typical application circuit
Six pulse
bridge
connection
~ ~ ~
3 x BYP57-1200
3 x BYP58-1200
+
-
BYP57:
1 - cathode
2 - anode
BYP58:
1 - anode
2 - cathode
1
2
Ordering information
Device
Quantity per box
Options
BYP57-75; …; BYP57-800
400
BYP58-75; …; BYP58-800
400
The package quantities for the different package
modifications are included in
“PressFitPackageModifications.pdf”
Device marking
Devices are identified by type. Colour of marking: BYP57- black, BYP58 – red
422........................................……. date code 422 = 2004 week 22
ZETEX
BYP57………………………………... diode type
400………………………………….. repetitive peak reverse voltage V
RRM
(in V) 400
Issue 4 – September 2006
