Bas70lp new prod uc t, Features, Mechanical data

BAS70LP
Document number: DS35105 Rev. 2 - 2
1 of 4
March 2011
© Diodes Incorporated
BAS70LP
NEW PROD
UC
T
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
•
Low Turn-on Voltage
• Fast
Switching
•
Ultra-Small Surface Mount Package
•
Lead Free/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
Mechanical Data
• Case:
DFN1006-2
•
Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - NiPdAu annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.001 grams (approximate)

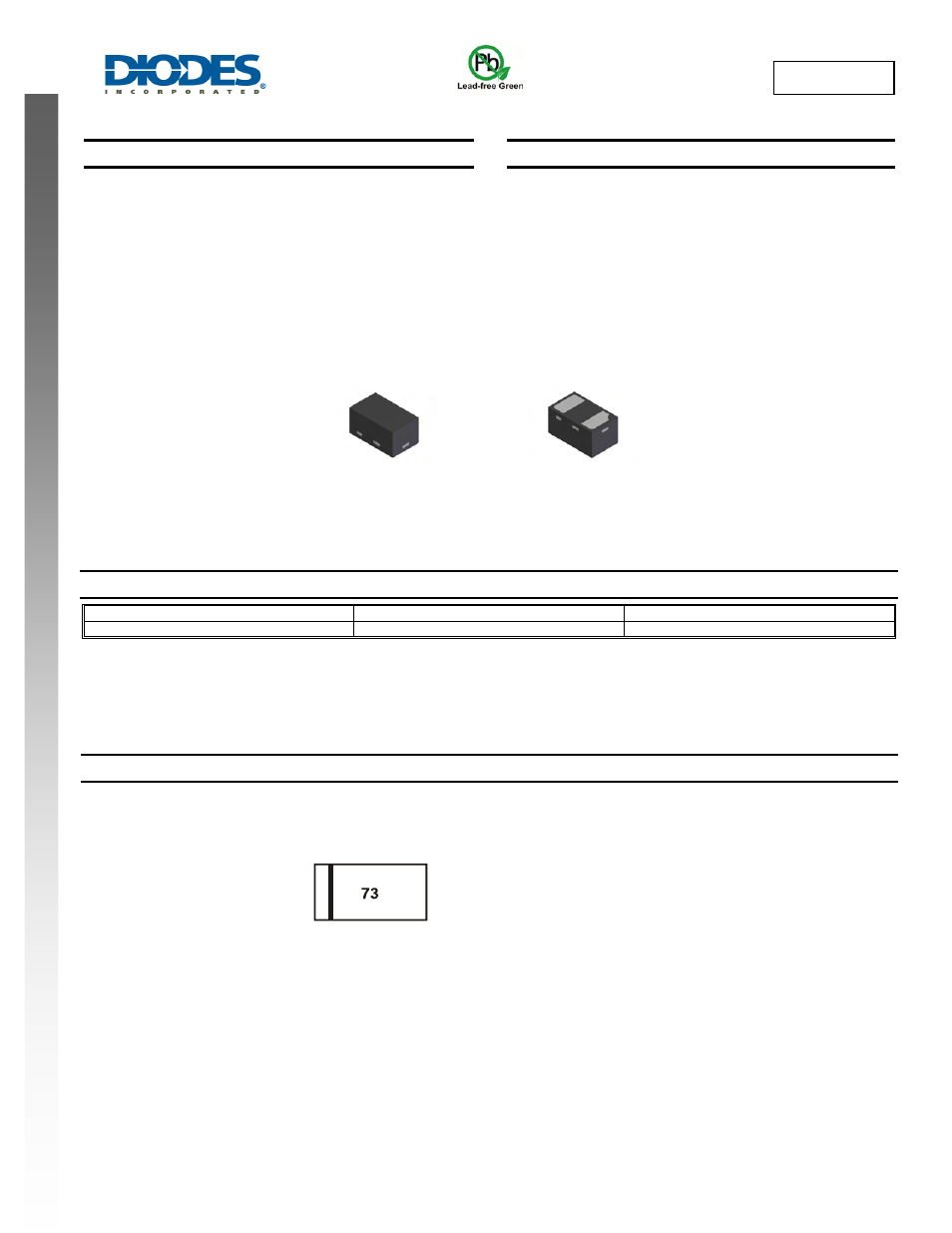

DFN1006-2
Top View
Bottom View
Ordering Information
(Note 3)
Part Number
Case
Packaging
BAS70LP-7B
DFN1006-2
10,000/Tape & Reel
Notes:
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our w
Marking Information
73 = Product Type Marking Code
Bar Denotes Cathode Side
