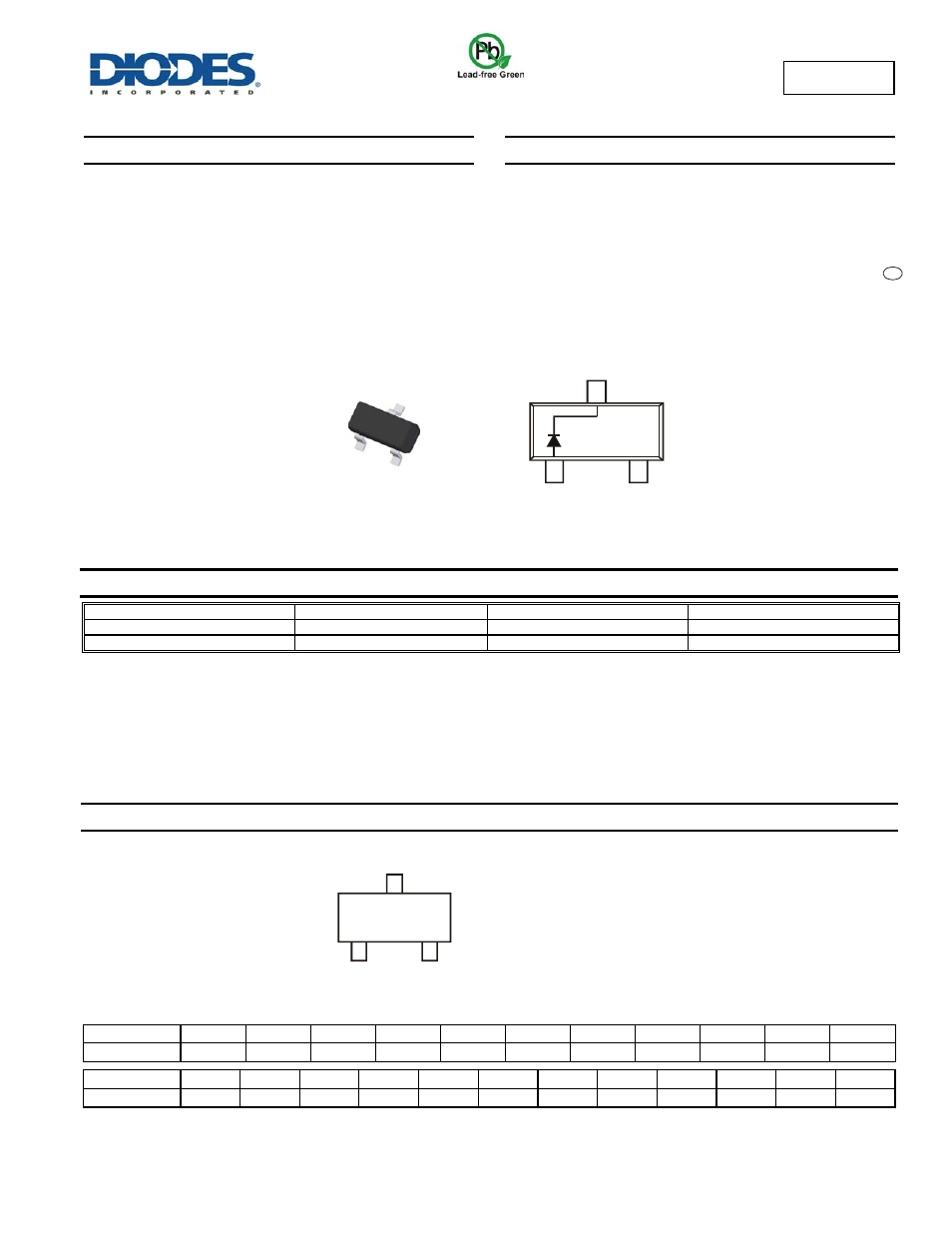

BAT1000
Document number: DS30245 Rev. 10 - 2
1 of 4
July 2013
© Diodes Incorporated
BAT1000
1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Features
Very Low Forward Voltage Drop
High
Conductance
For Use in DC-DC Converter, PCMCIA, and Mobile
Telecommunications Applications
Totally Lead-Free & Fully RoHS Compliant (Notes 1 and 2)
Halogen and Antimony Free. ”Green” Device(Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case:
SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.008 grams (approximate)
Ordering Information
(Note 5)
Part Number
Compliance Case
Packaging
BAT1000-7-F
AEC-Q101
SOT23
3000/Tape & Reel
BAT1000Q-7-F
Automotive
SOT23
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to
5. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2002
2003
2004
….
2010
2011
2012
2013
2014
2015
2016
Code
N
P
R
….
X
Y
Z
A
B
C
D
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
Schematic and Pin Configuration
TOP VIEW
K79 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
K79
YM
e3
