SCHOTTKY BARRIER RECTIFIERS APD140

Data Sheet

5

Aug. 2011 Rev. 1. 7

BCD Semiconductor Manufacturing Limited

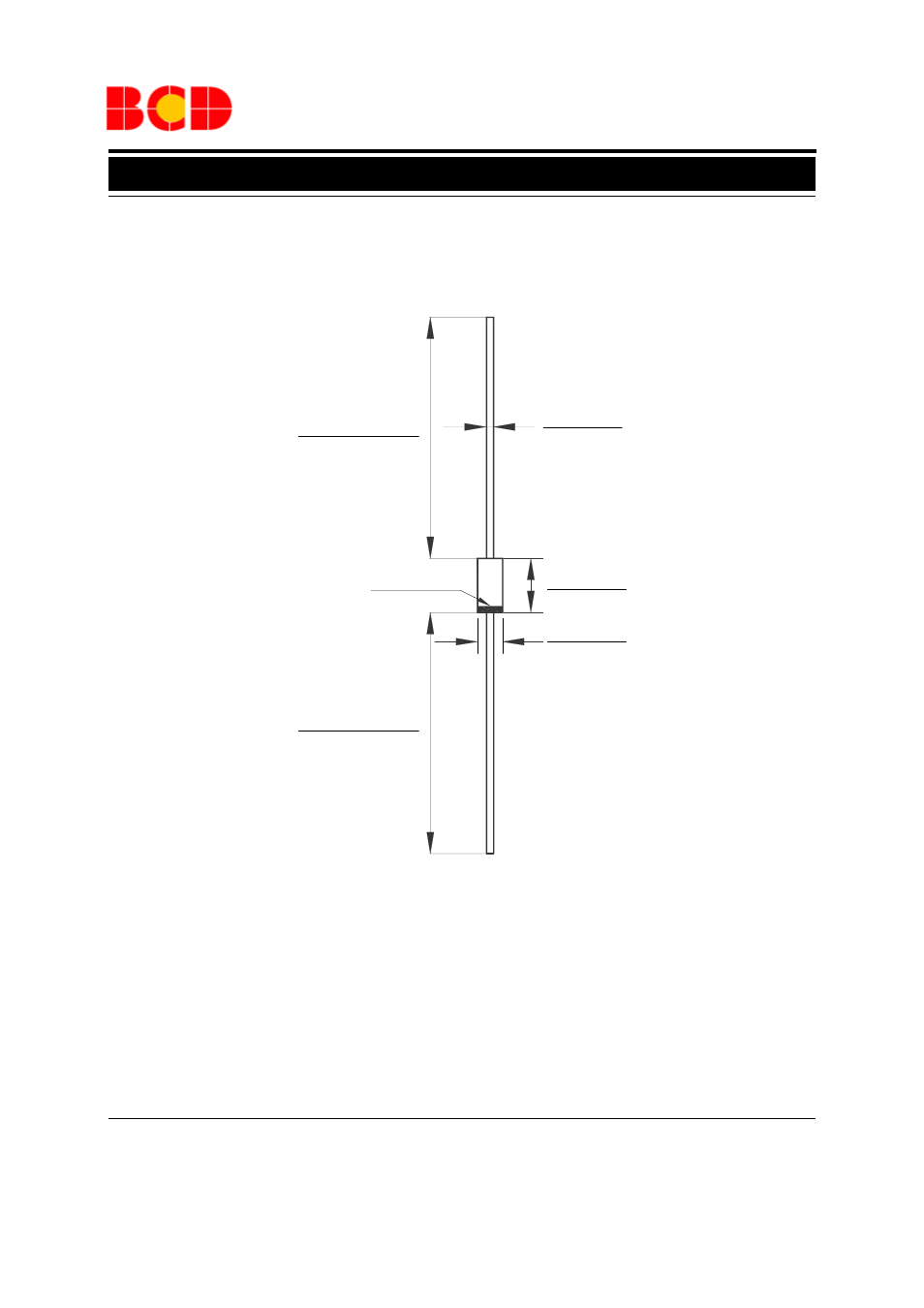

Mechanical Dimensions

Unit: mm(inch)

DO-41

0.700(0.028)
0.900(0.035)

25.400(1.000) MIN

4.200(0.165)
5.200(0.205)

2.000(0.080)
2.700(0.107)

DIA.

DIA.

25.400(1.000) MIN

Cathode line

by marking
