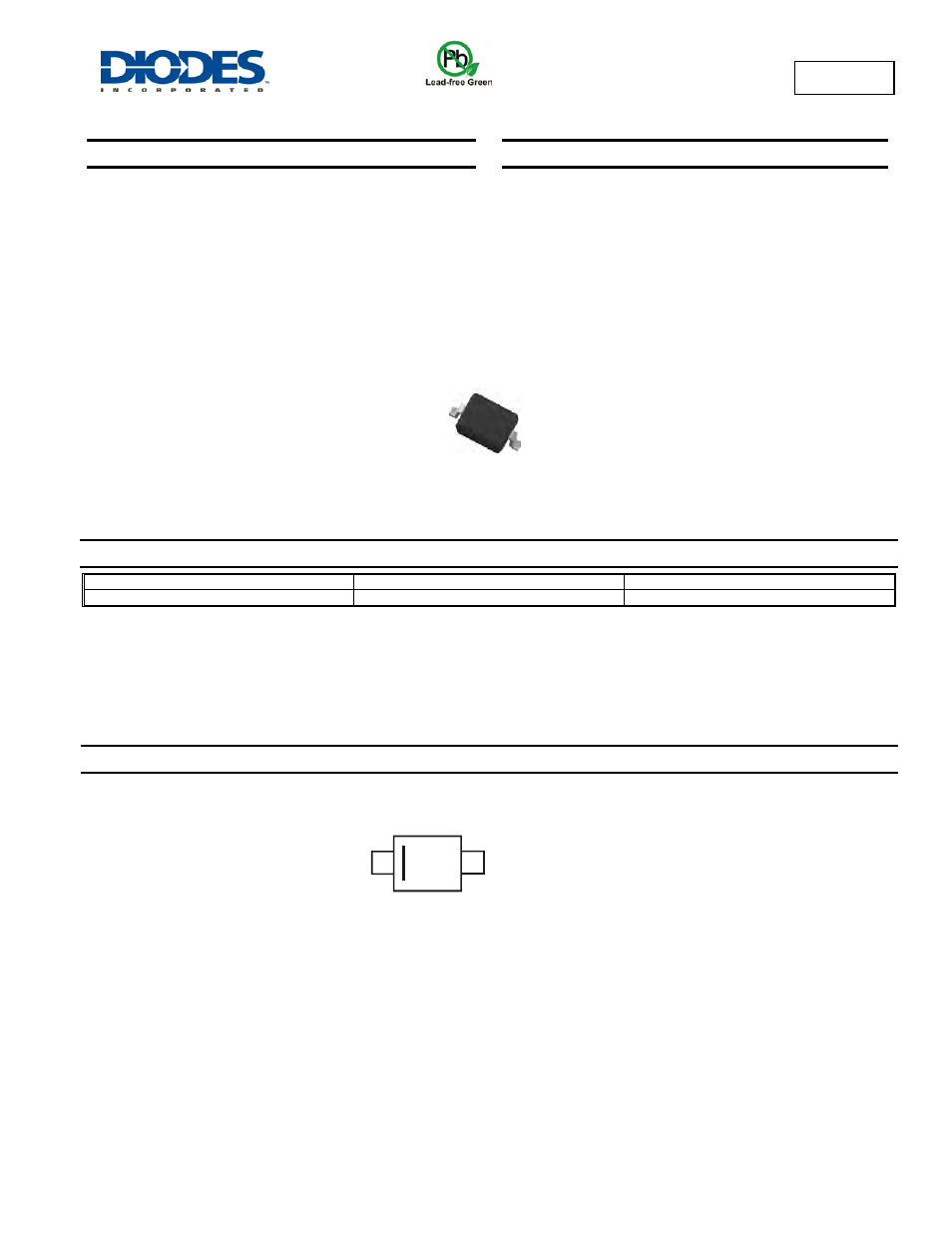

BAT760
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Features
•
Very Low Forward Voltage Drop
•
Guard Ring Construction for Transient Protection
• High
Conductance
•
Lead, Halogen and Antimony Free/RoHS Compliant (Note 1)
•
"Green" Device (Notes 2 & 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOD-323
•
Case Material - Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: Cathode Band
• Terminals:
Finish
⎯ Matte Tin Annealed Over Alloy 42
Leadframe. Solderable per MIL-STD-202, Method 208
•
Weight: 0.004 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
BAT760-7
SOD-323
3000/Tape & Reel
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc.'s "Green" policy can be found on our w
3. Product manufactured with Green Molding Compound and does not contain Halogens or Sb
2
O
3
Fire Retardants.
4. For packaging details, go to our website at
Marking Information
Top View
LZ = Product Type Marking Code
LZ
